260666
Availability on request
€630.00
Tax excluded

SUMMARY

Download PDF

Description

FEATURES:

  • Platform with a tubular structure in painted steel, with a tray in stainless steel and a column in stainless steel.
  • Cell in aluminum with IP65 protection.
  • Column with a fixed base in painted steel (model P447 mm).
  • 4 adjustable feet in height up to an increase of 13 mm.
  • Length of cable platform-display: 1200 mm (up to 1370 mm, depending on the model).
  • CE certification.
  • Approval for 3000 divisions OIML class III.

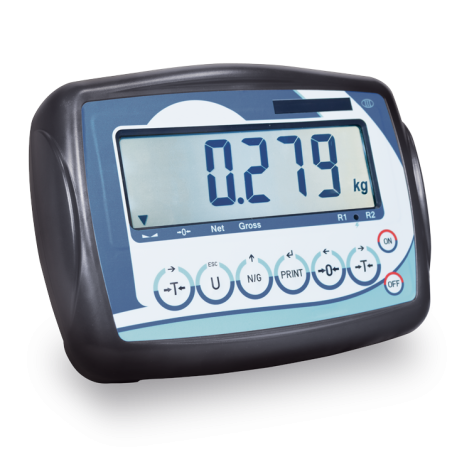

  • Indicator in ABS, model BR16.
  • IP54 protection.
  • Waterproof keyboard with 6 function keys and power on/off keys.
  • Large backlit LCD display with 6 digits of 40 mm.
  • Display backlighting with three modes: automatic, activated, and deactivated.
  • ABS support for the column.
  • Includes wall mounting holes.
  • Operating temperature: –10ºC +40ºC.
  • Power supply with AC/DC adapter 240Vac 50Hz.
  • Rechargeable battery 6V/4Ah.
  • Battery life with backlighting activated: approximately 80 hours.
  • Battery life with backlighting deactivated: approximately 320 hours.
  • Units kg or t or g (to be chosen at the time of order).
  • Unit range/Multi range (to be chosen at the time of order).
  • Automatic disconnection (with desired time configuration from 1 to 99 minutes).

FUNCTIONS:

  • Accumulation (Only outside of legal metrology)
  • Totalization
  • Piece counting
  • Zero
  • Four hold modes: off, moving animal, peak value, stable, and stable with auto cancel to zero
  • Weight and piece control (limit function) with visual signal and alarm
  • Three speeds of the AD converter (high, medium, and low)
  • Configurable gravity (without legal metrology)
  • Gross/Net
  • Tare

Product Details

Plate dimensions (mm)
500x600
Capacity (kg)
300 kg
Weight fraction (g)
100 g
Verification
Yes
Weighing
Floor Scale
