Gas spring hole spacing 225mm
Gas spring hole spacing 225mm
Gas spring hole spacing 225mm
Gas spring hole spacing 225mm

Gas spring hole distance 350mm

REP08350100
€28.15
Tax excluded

Gas Spring Anchor
  • Plastic Ball Joint Anchor head 10 L18 GM6

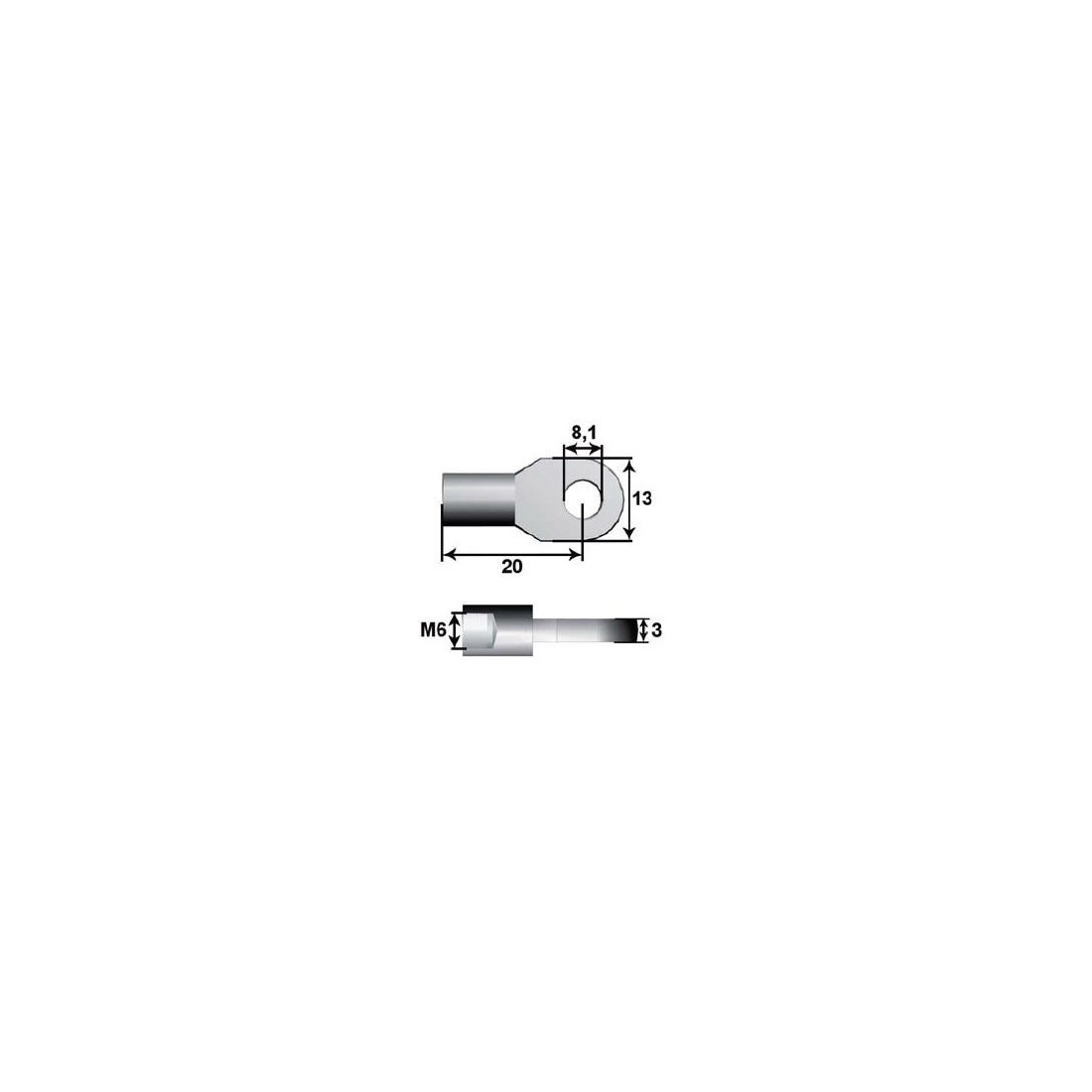

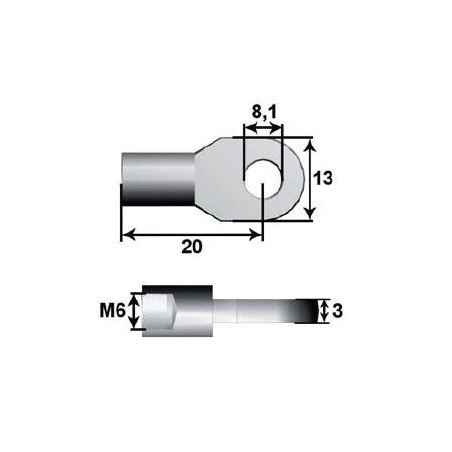

  • Metal Eye Anchor Ø8mm L20 M6
Gas Spring Force
  • 150N
  • 200N
  • 250N
  • 300N
  • 350N
  • 400N
  • 450N
  • 500N
  • 550N
  • 600N
  • 650N
  • 700N
  • 750N
  • 100N

Download PDF

Description

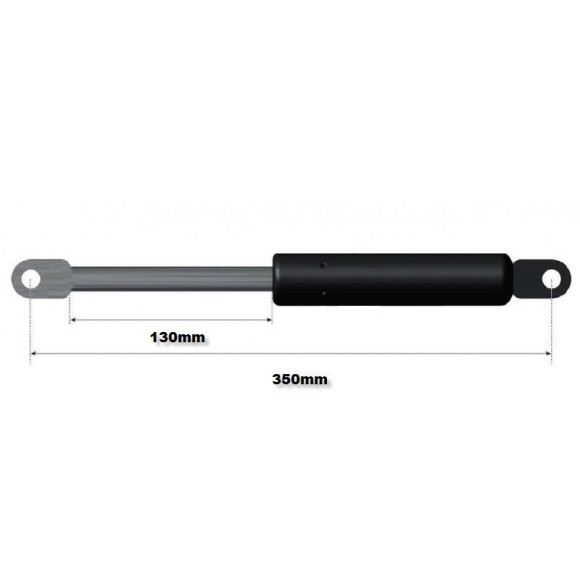

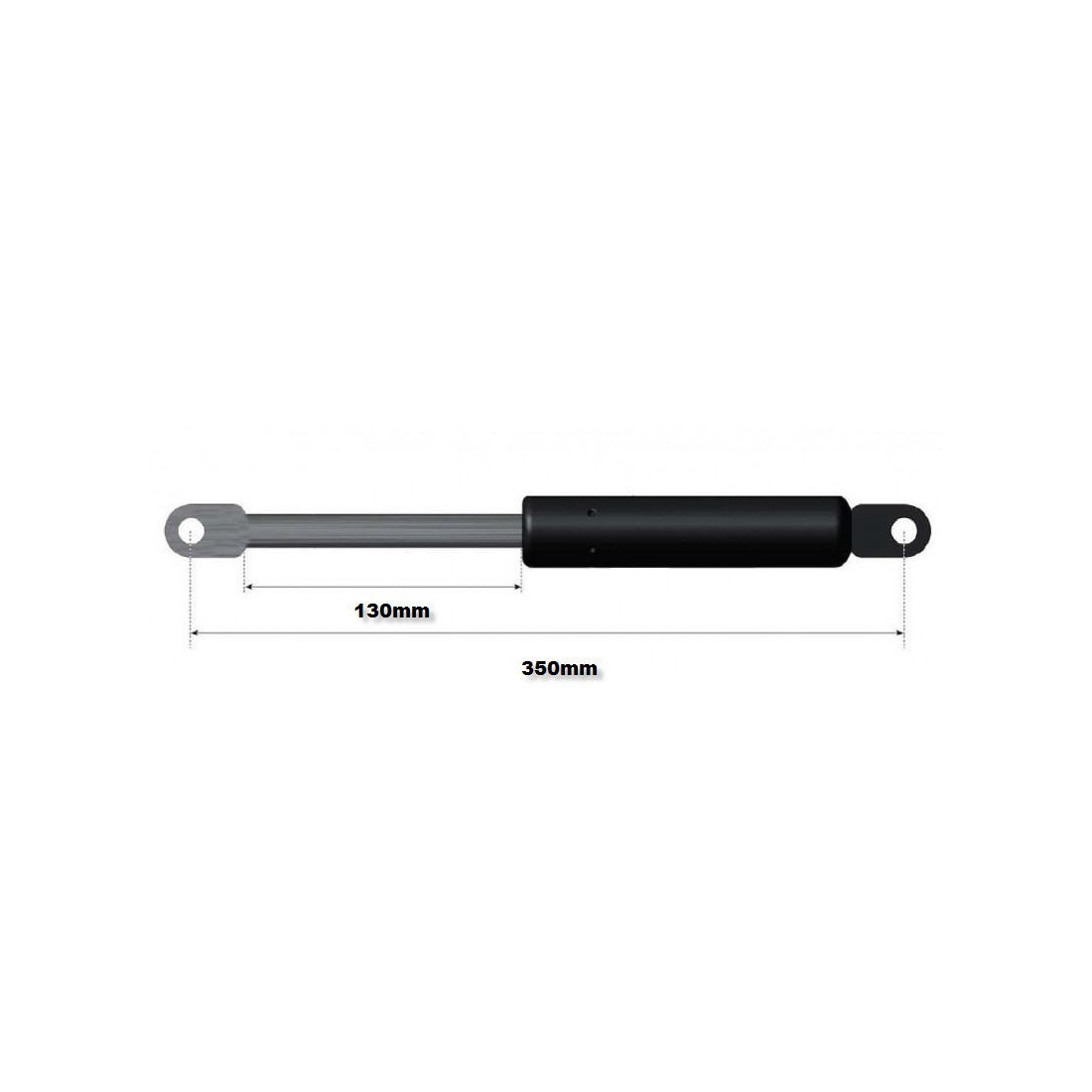

Gas spring hole distance 350mm
Force to choose in options.
Tube 18mm
Rod 8mm
Stroke 130mm
Choose the type of anchorage, two options.
An extender (10, 15, or 20mm) can optionally be included to reach the exact required measurement.
There are different types of anchors that can be screwed on by removing the original.

Product Details

Associated references: Check compatibility before purchasing.
