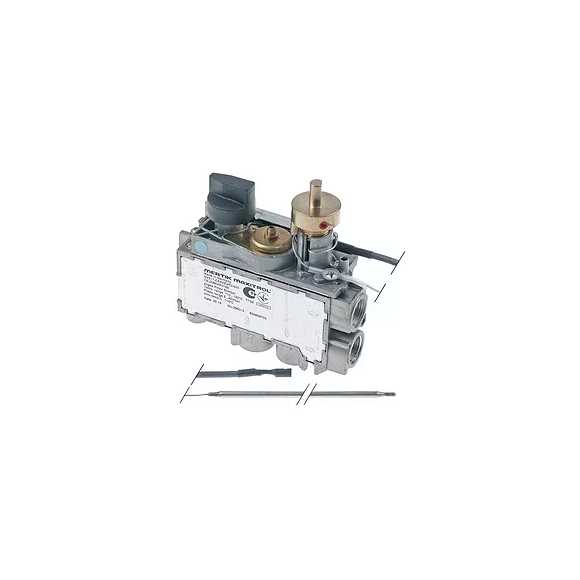

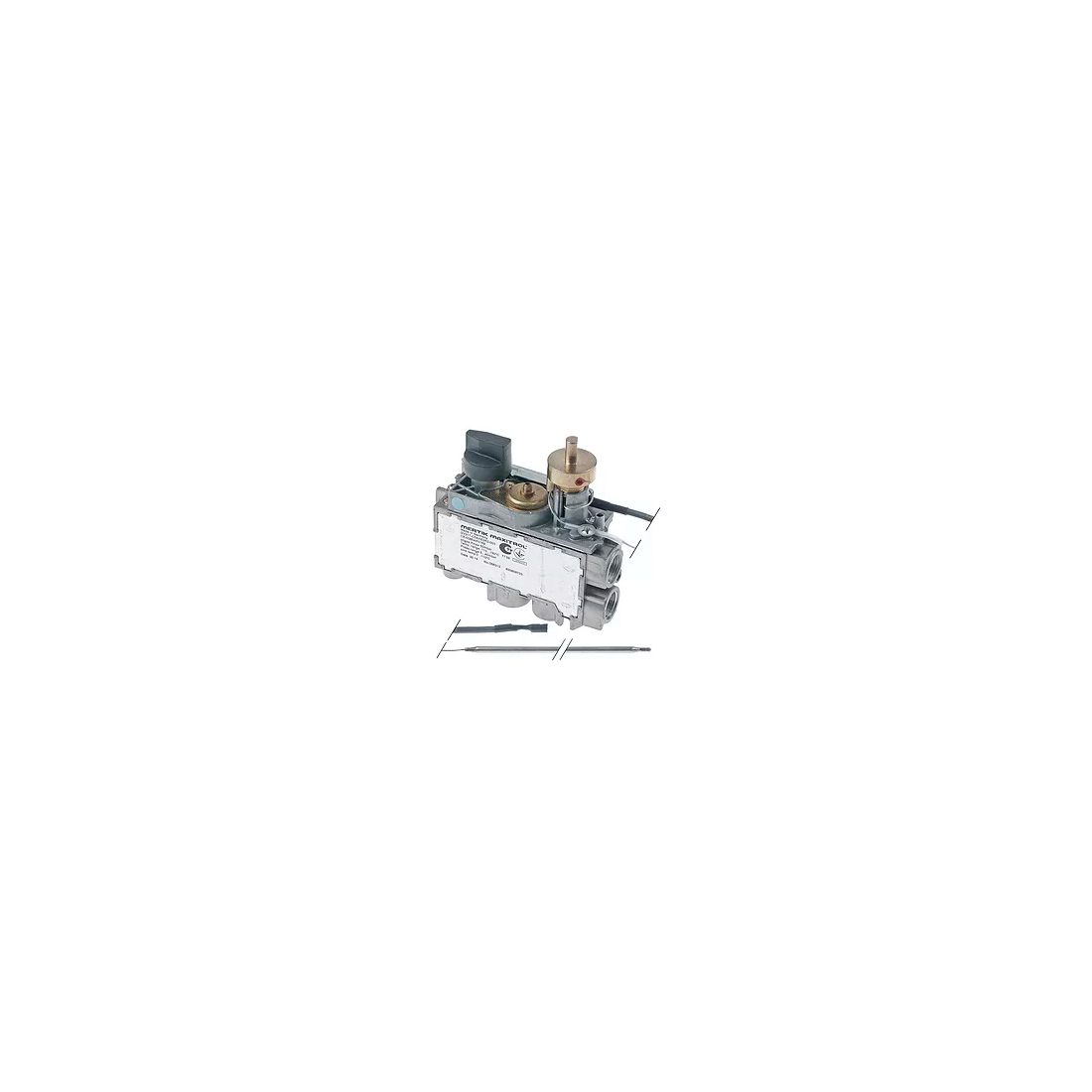

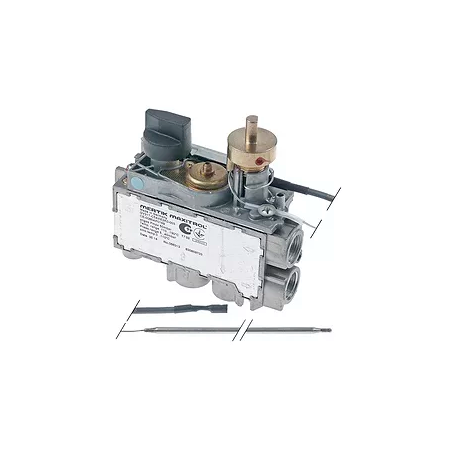

MERTIK gas thermostat type GV31T-C5AXE2K0 190 °C

MERTIK gas thermostat type GV31T-C5AXE2K0 190 °C

Name: MERTIK gas thermostat type GV31T-C5AXE2K0 190 °C
Brand: Mertik
SKU: 106700
Price: 413.33 EUR
Availability: InStock

Reference 106700

€413.33

Tax excluded

Download PDF

Description

MERTIK gas thermostat type GV31T-C5AXE2K0 Max T 190°C 110-190°C thermoelement connection M9x1 Electrolux, Mertik, Zanussi
manufacturer MERTIK
type GV31T-C5AXE2K0
maximum temperature 190 °C
temperature range 110-190 °C
gas inlet bottom 3/8"v
gas inlet side 3/8"
gas outlet bottom 3/8"
gas outlet side 3/8"
thermocouple connection M9x1
pilot connection M10x1
capillary length 720 mm
probe diameter 4 mm
probe length 165 mm
shaft diameter 8x6.5 mm
shaft length 13 mm
cable length 900 mm
Adaptable for the following manufacturers
Electrolux, Mertik, Zanussi
