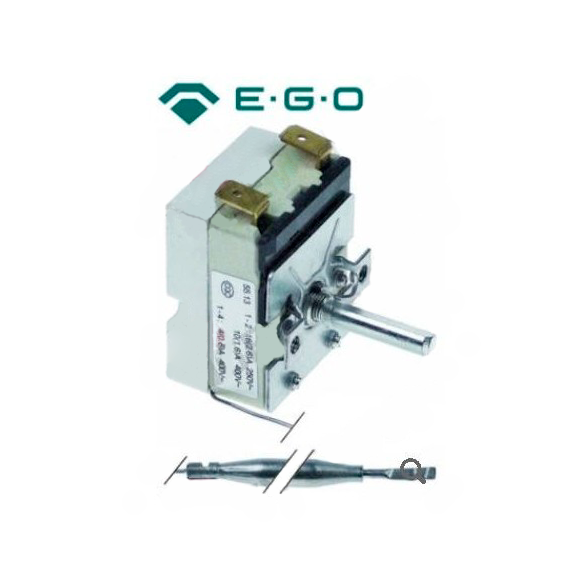

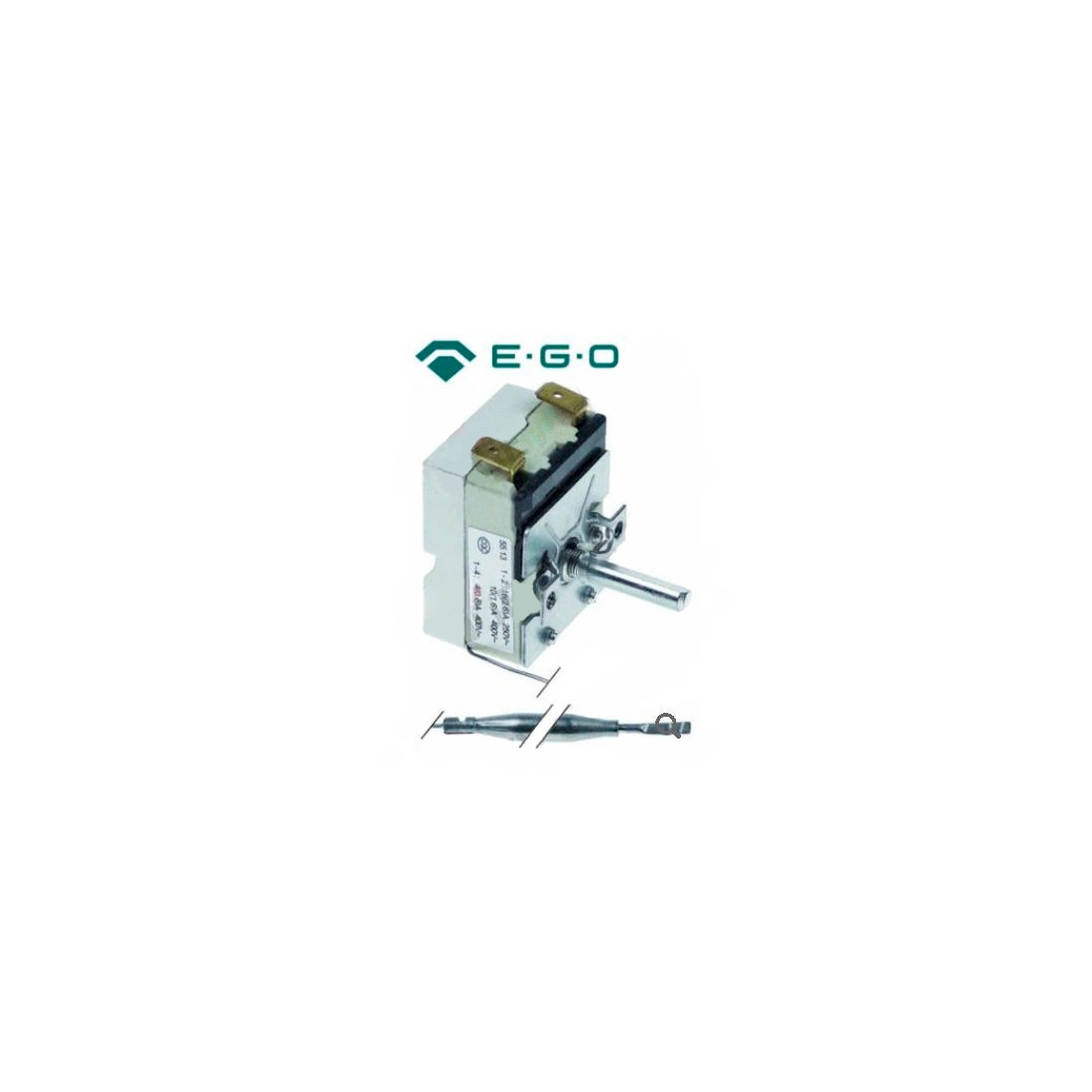

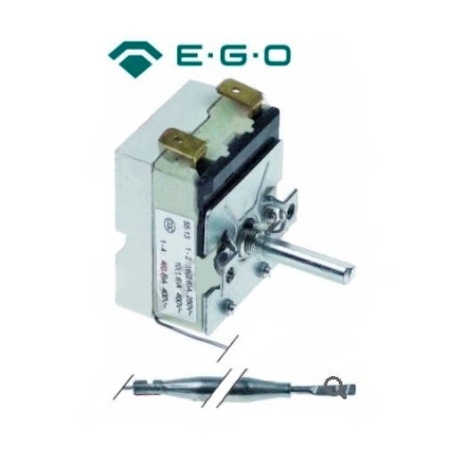

thermostat T max 300°C operating range 60-300°C 1 pole 1NO 16A probe ø 6mm probe L 77mm EGO 55.13054.110
thermostat T max 300°C operating range 60-300°C 1 pole 1NO 16A probe ø 6mm probe L 77mm EGO 55.13054.110

thermostat T max 300°C operating range 60-300°C 1 pole 1NO 16A probe ø 6mm probe L 77mm EGO 55.13054.110

375325
€20.00
Tax excluded

Download PDF

Description

thermostat T max 300°C operating range 60-300°C 1 pole 1NO 16A probe ø 6mm probe L 77mm EGO 55.13054.110
maximum temperature 300 °C
operating range 60-300 °C
number of poles 1 pole
function 1NO
switching power 16 A
probe diameter 6 mm
probe length 77 mm
capillary length 870 mm
capillary insulation length - mm
cable gland -
shaft diameter 6/4.6 mm
shaft length 23 mm
shaft position left °
rotation angle 270 °

Product Details

Thermostat
Termostato de Control
Maximum Temperature
300°C
Capillary Length
870mm
Application
Heat
