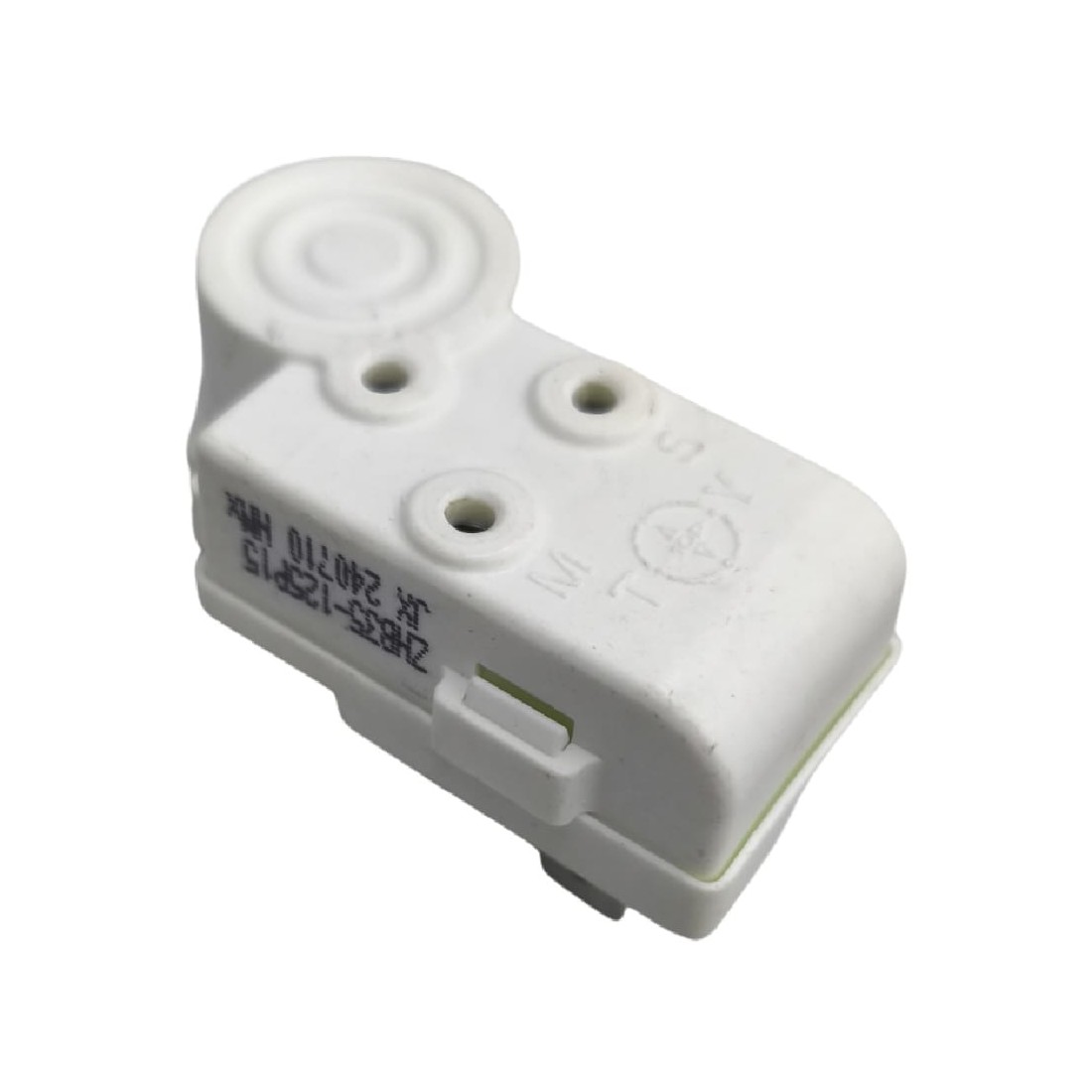

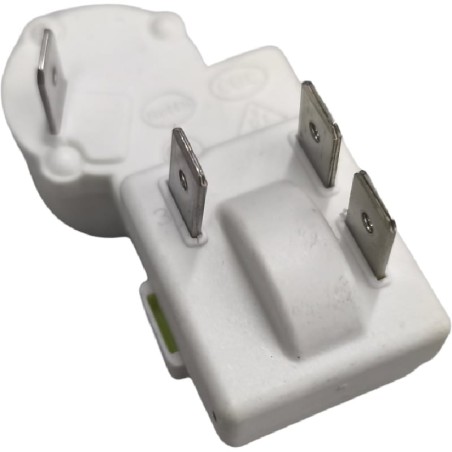

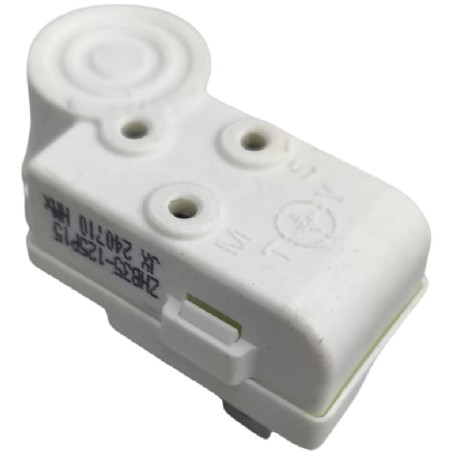

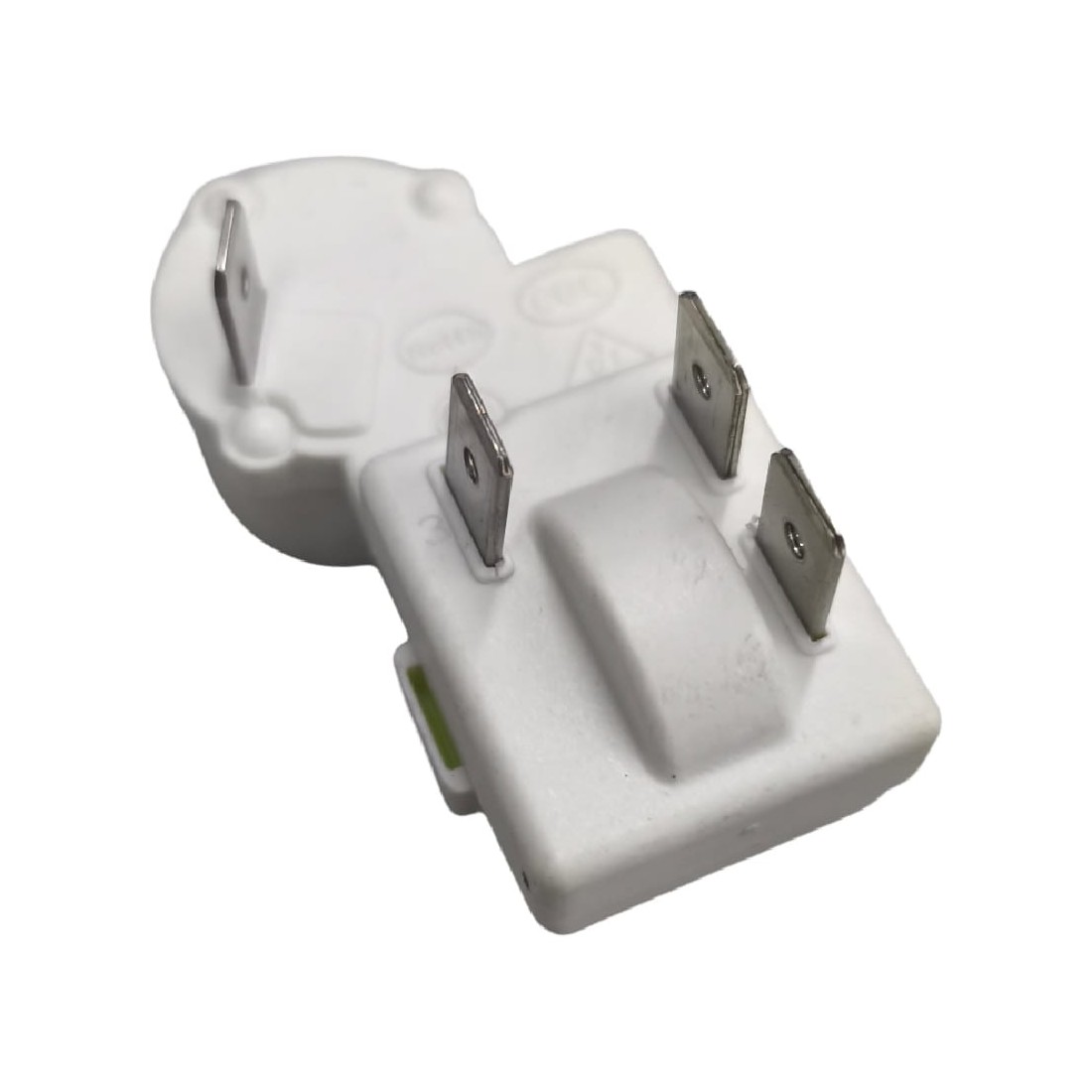

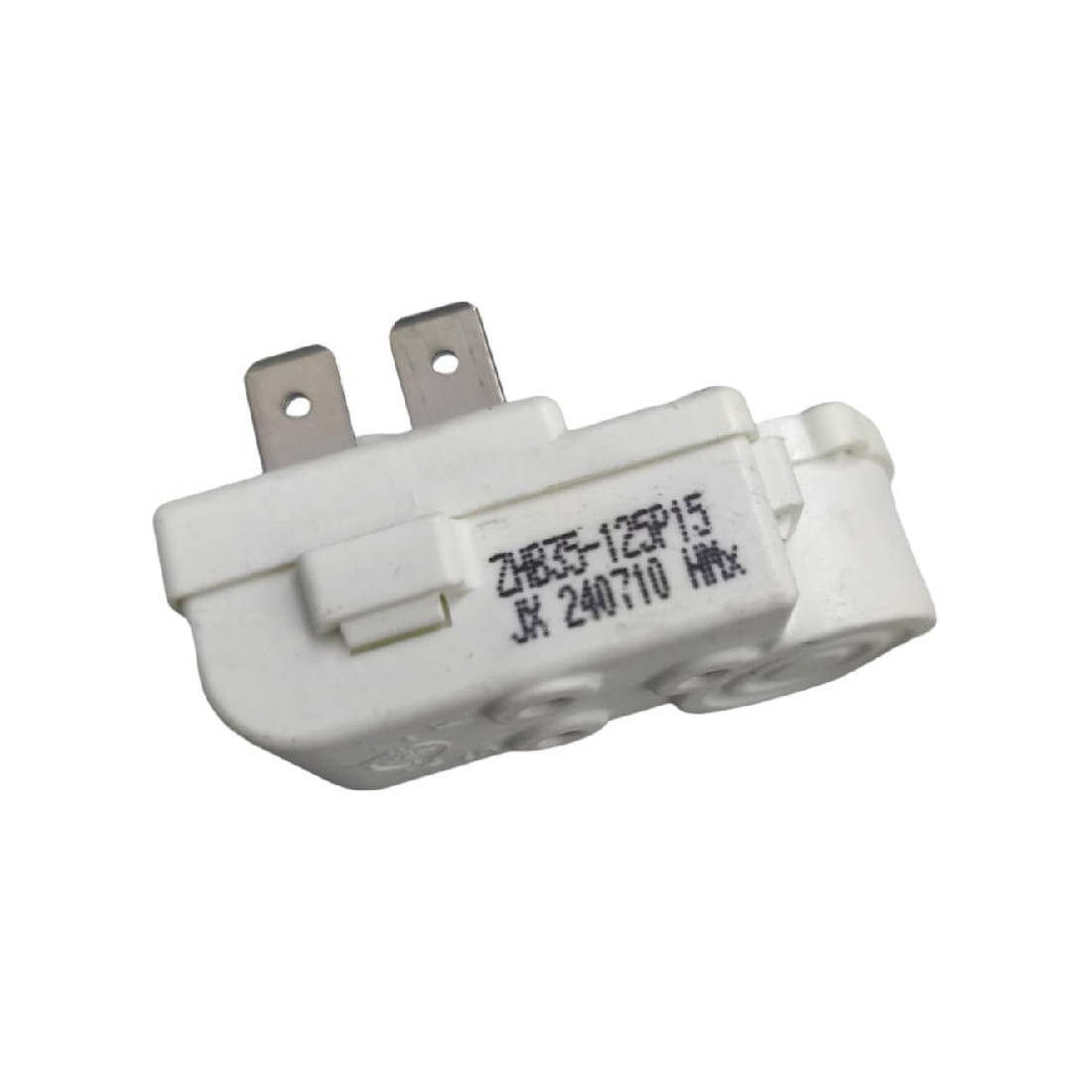

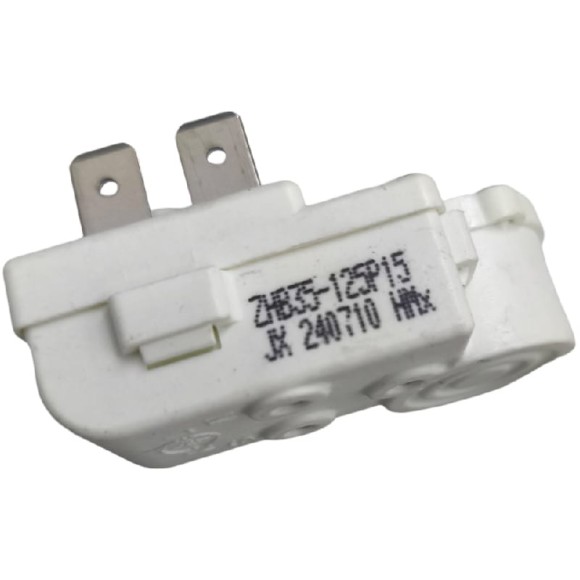

PTC Start Relay ZHB35-140P15 4 Connectors 1/5 1/6 HP 90W–180W 120Ω
PTC Start Relay ZHB35-140P15 4 Connectors 1/5 1/6 HP 90W–180W 120Ω
PTC Start Relay ZHB35-140P15 4 Connectors 1/5 1/6 HP 90W–180W 120Ω
PTC Start Relay ZHB35-140P15 4 Connectors 1/5 1/6 HP 90W–180W 120Ω
PTC Start Relay ZHB35-140P15 4 Connectors 1/5 1/6 HP 90W–180W 120Ω
PTC Start Relay ZHB35-140P15 4 Connectors 1/5 1/6 HP 90W–180W 120Ω

PTC Start Relay ZHB35-140P15 4 Connectors 1/5 1/6 HP 90W–180W 120Ω

REP0009946
€8.00
Tax excluded

Download PDF

Description

PTC Start Relay ZHB35-140P15 4 Connectors 1/5 1/6 HP 90W–180W 120Ω
Pin 1 → Line (L) → phase input.
Pin 2 → to the compressor's S (Start) terminal → passes through the PTC.
Pin 3 → to the compressor's M (Run) terminal.
Compressor's C (Common) → connects directly to the neutral (N).

Product Details

Compressor Acc.
Relay
