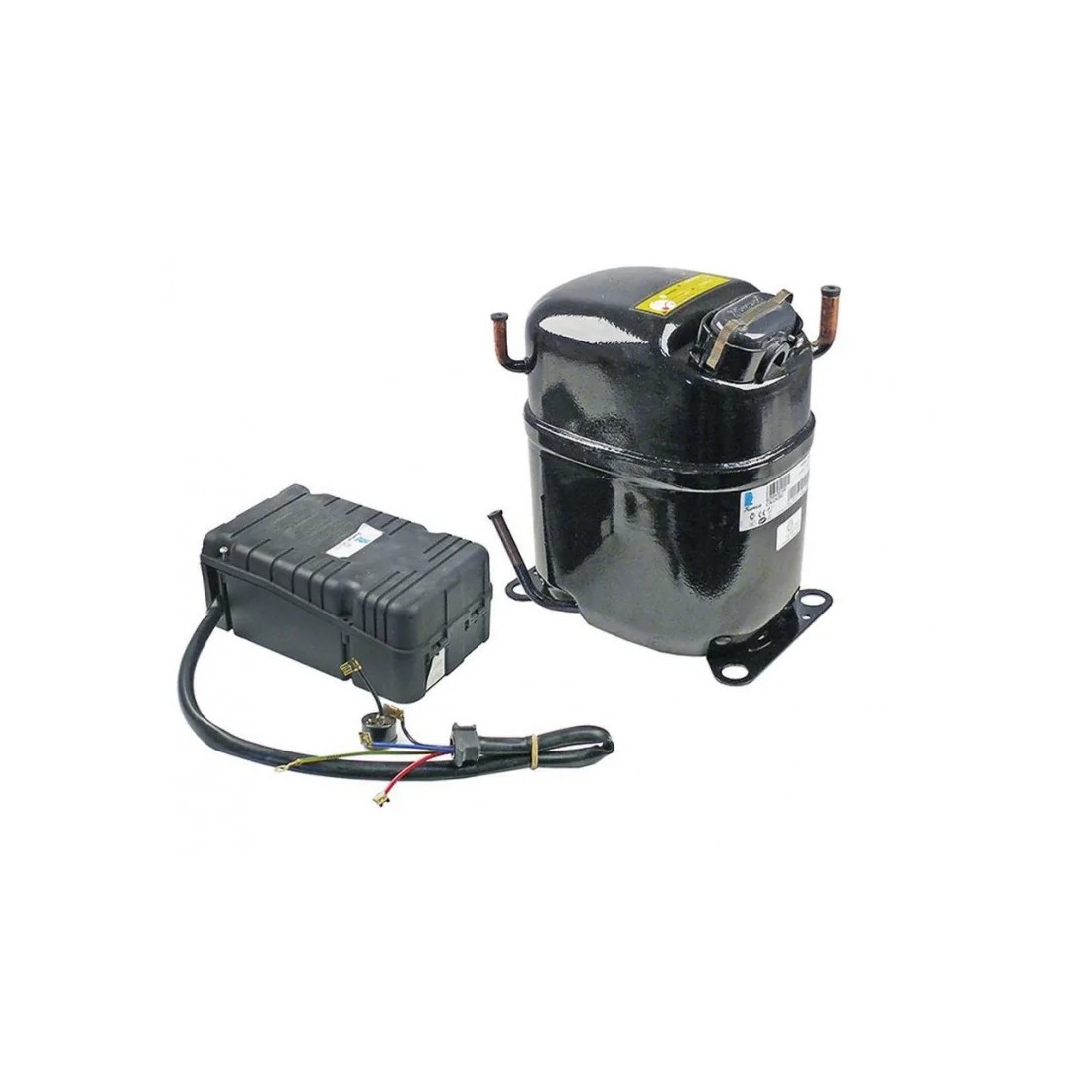

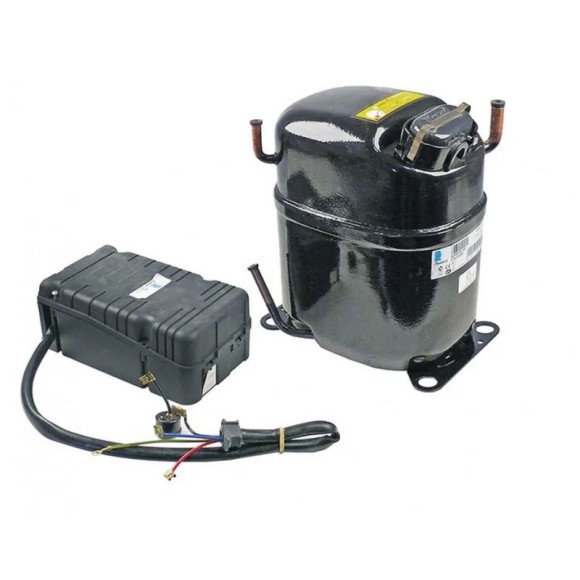

R404A refrigerant compressor type CAJ2428Z 605157
R404A refrigerant compressor type CAJ2428Z 605157

R404A refrigerant compressor type CAJ2428Z 605157

REP0011039
€540.00
Tax excluded

Download PDF

Description

R404A refrigerant compressor type CAJ2428Z 605157

refrigerant R404A
type CAJ2428Z
power 5/8 HP
cylinder capacity 15.2 cm³
motor system CSR
voltage 220-240 V
height 271 mm
power at -10°C 1246 W
power at -30°C 434 W
power at -25°C 589 W
power at -20°C 773 W
power at -15°C 991 W
application LBP
frequency 50 Hz230.000000
weight 21 kg

gev 605157
the hermetic unit CAJ2428Z
mth 00146.14
tecumseh CAJ2428Z
williams COMP460

Product Details

Evaporating at -10ºC
From 1200 to 1300W
Horsepower
5/8 HP
Refrigerant Gas
R404a Gas Compressor
Displacement
14-16cm³
Application Interval
-40°C to -10°C
Evaporating at -35ºC
From 200 to 300W
