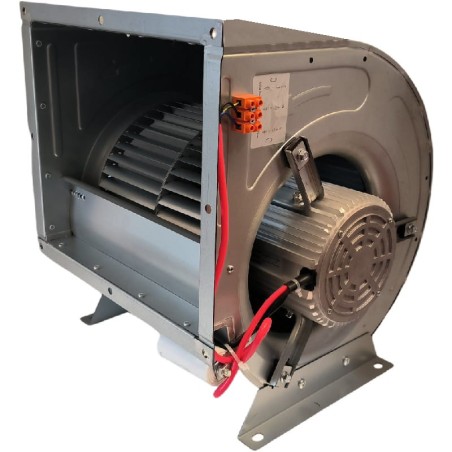

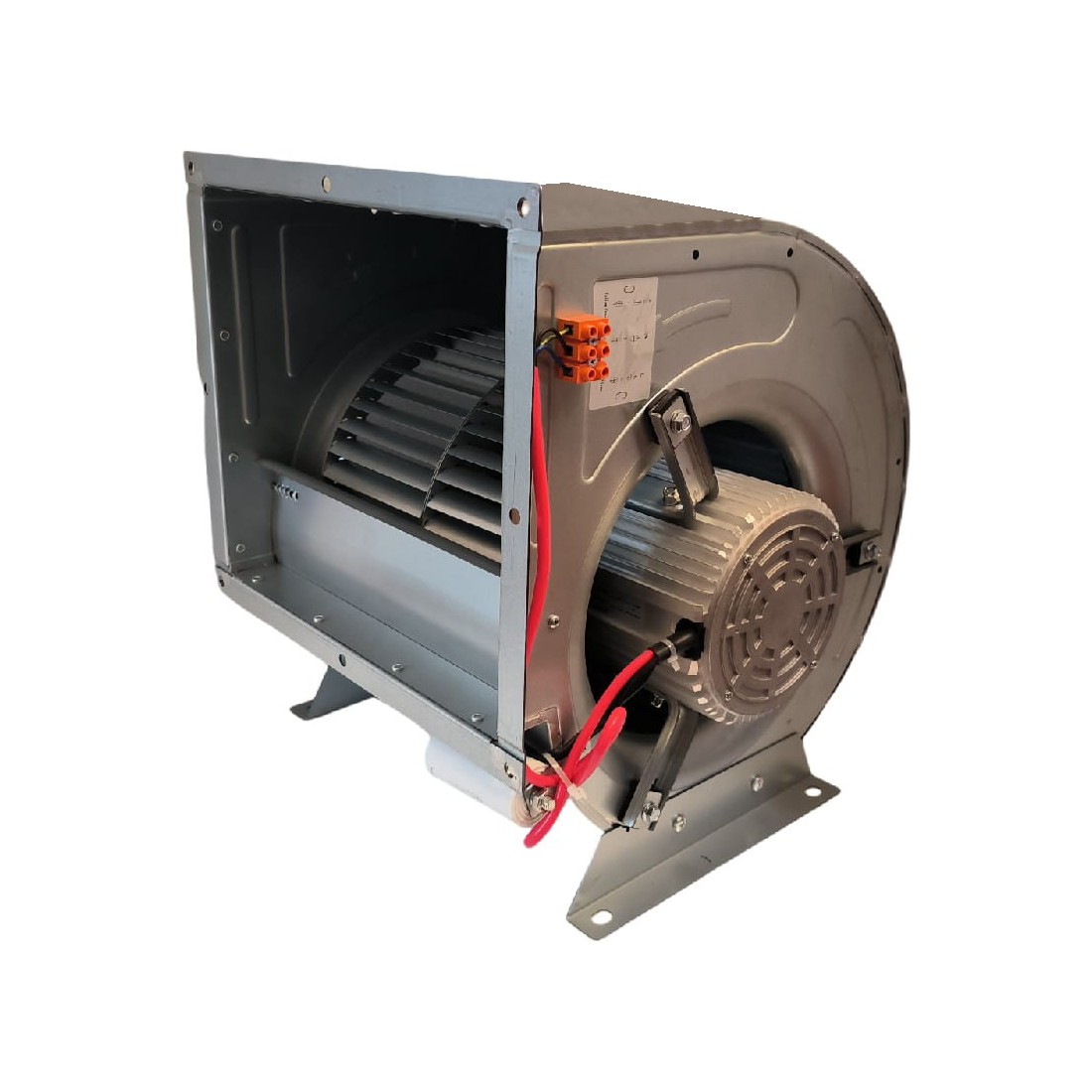

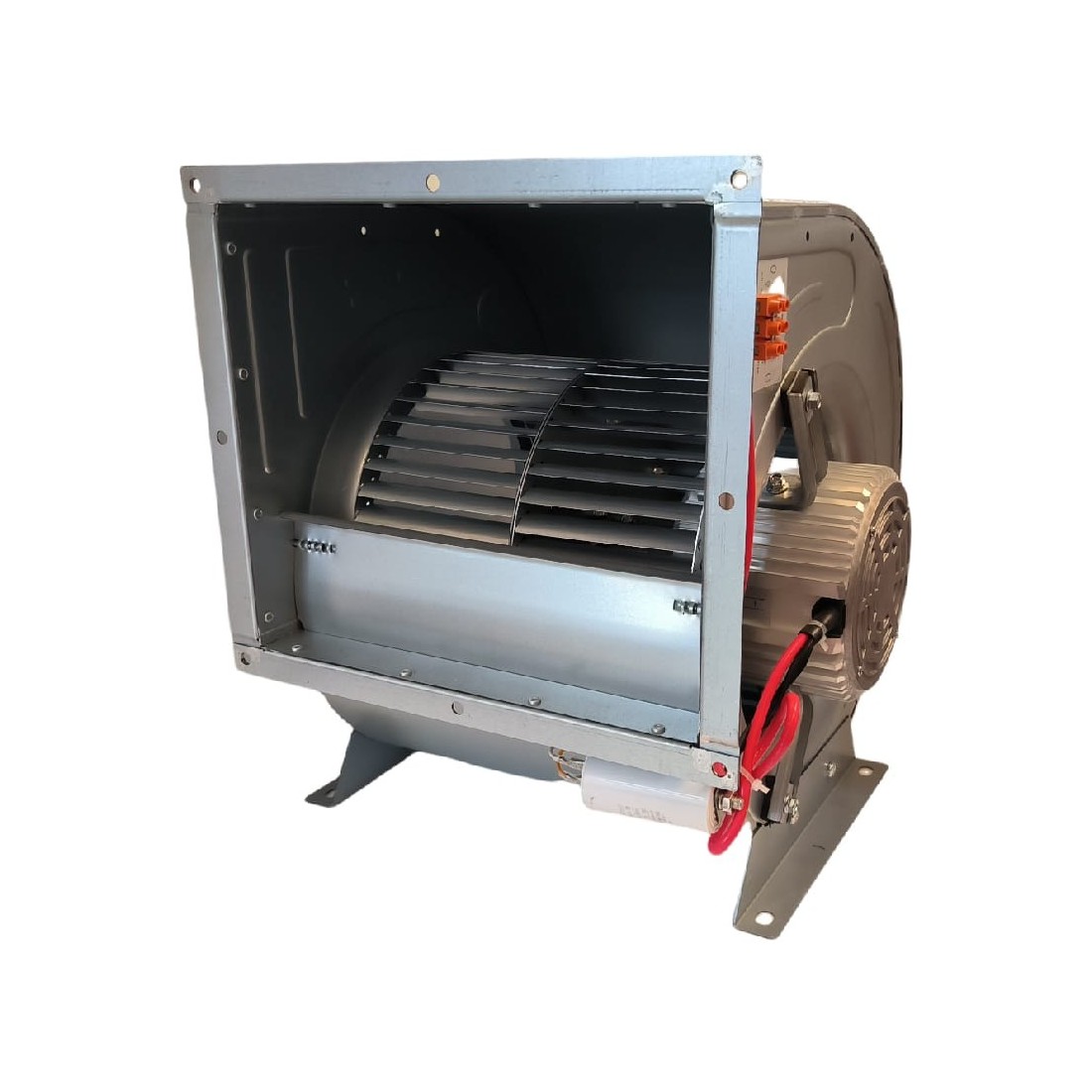

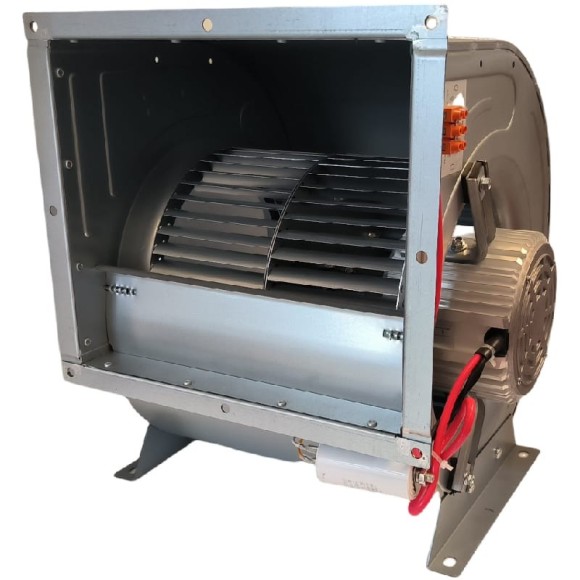

Centrifugal fan LKZ 10/10-6M 3/4 EFF
Centrifugal fan LKZ 10/10-6M 3/4 EFF
Centrifugal fan LKZ 10/10-6M 3/4 EFF
Centrifugal fan LKZ 10/10-6M 3/4 EFF
Centrifugal fan LKZ 10/10-6M 3/4 EFF
Centrifugal fan LKZ 10/10-6M 3/4 EFF
Centrifugal fan LKZ 10/10-6M 3/4 EFF
Centrifugal fan LKZ 10/10-6M 3/4 EFF

Centrifugal fan LKZ 10/10-6M 3/4 EFF

9046
Fora d'estoc
€300.00
Tax excluded

LKZ10-10 10/10-6M 3/4M, 1 SPEED, 850R/M, 230V, 0.55KW, 3950R/H, 70DB


Download PDF

Description

Fan:

  • Enclosure made of galvanized steel sheet.
  • Turbine with forward-curved blades, made of galvanized steel sheet.

Motor:

  • High efficiency (HE) motors to comply with ErP 2015.
  • Closed motors with built-in thermal protection, class F, with ball bearings, IP54 protection.
  • Single-phase 220-240V AC-50Hz
  • Maximum air temperature to be transported: -20ºC to +60ºC.
  • Speed 850 rpm 1 speed
  • Decibels 65
  • Capacitor 25 μF
  • Power 550W
  • Airflow 3500 m³ - hour

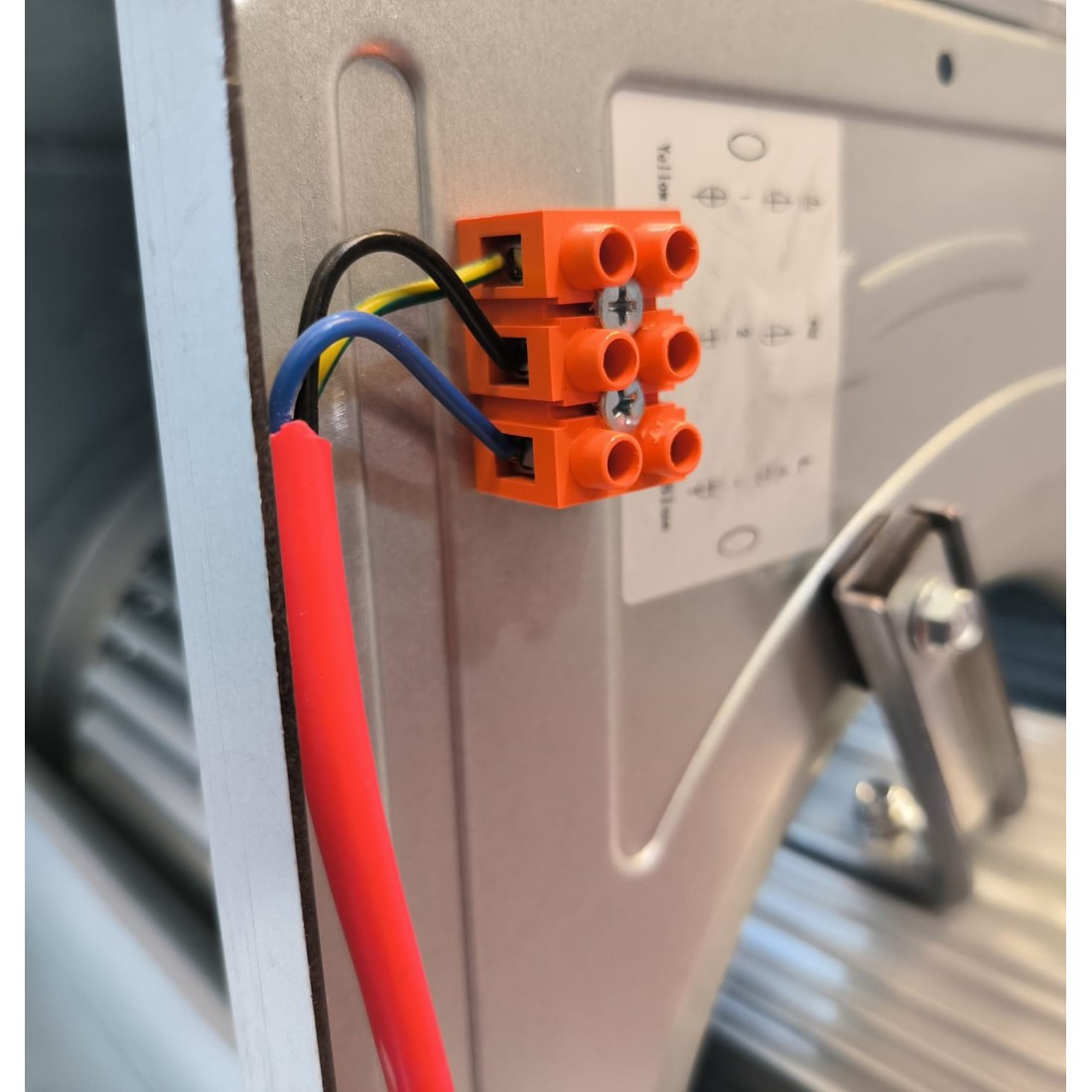

  • Connection via splice plug
  • Net weight 16.90 kg
  • Gross weight 17.70 kg
  • Packaging dimensions 475x430x450mm

Finish:

  • Anticorrosive in galvanized steel sheet.

Product Details

Power Supply Voltage
220-240V 50Hz
Power Watts
550W
