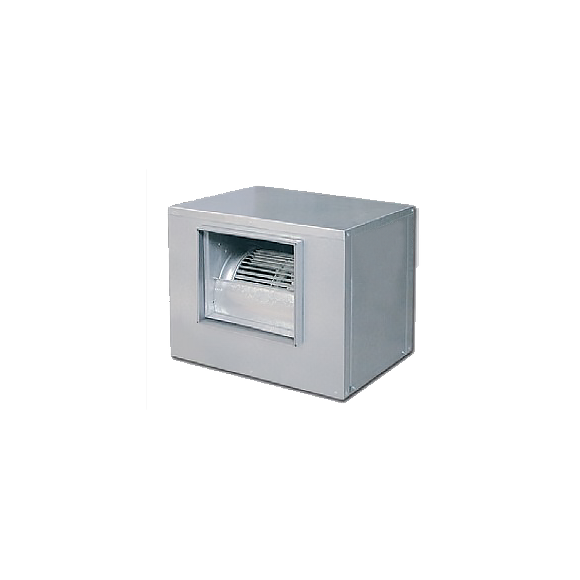

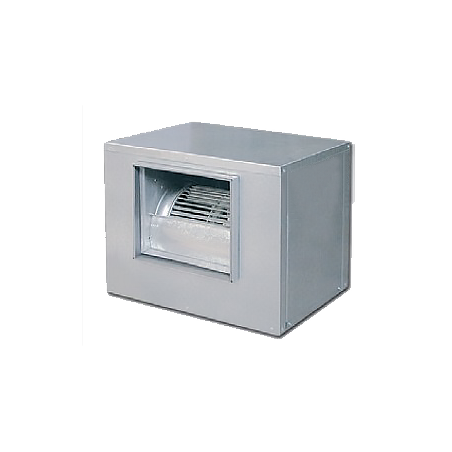

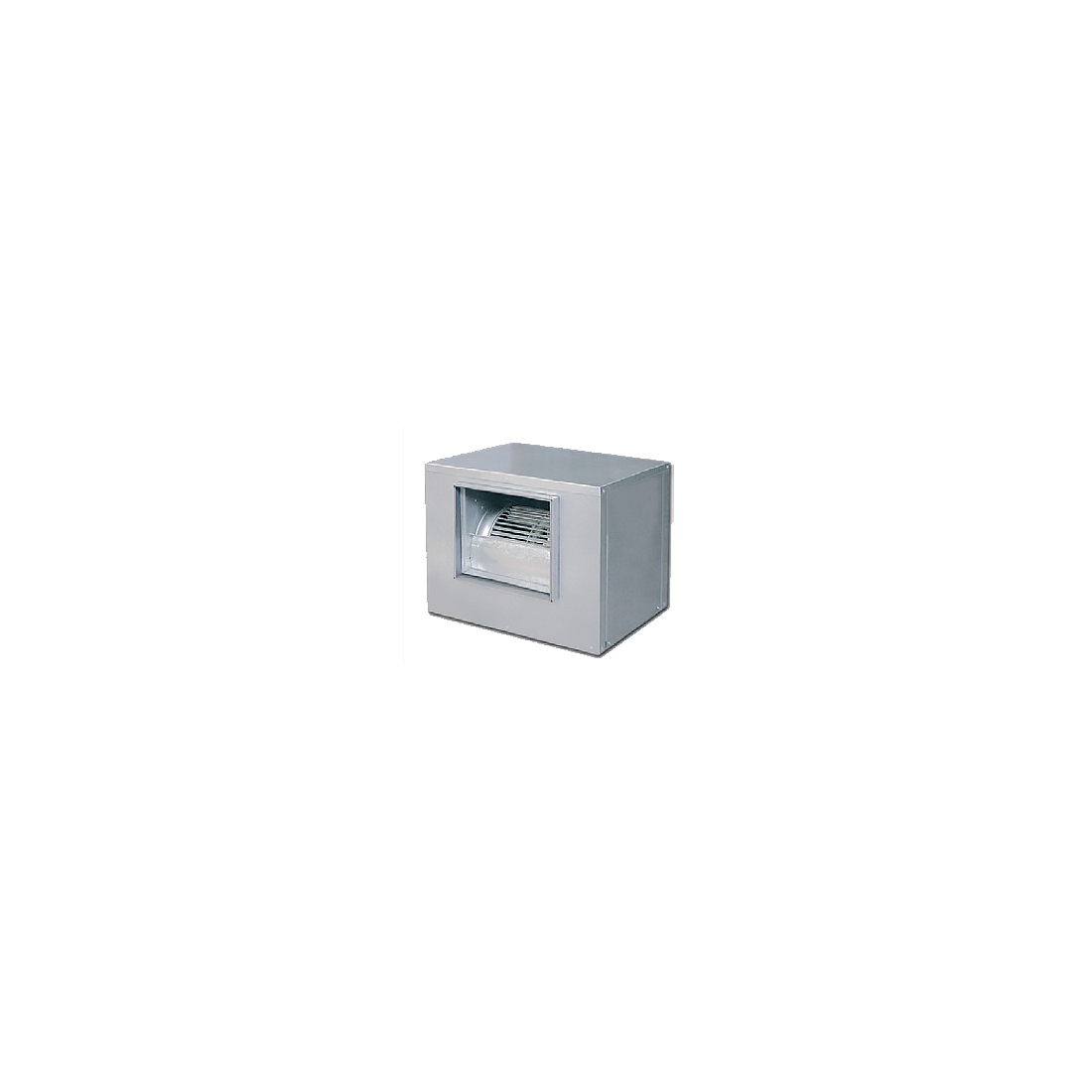

Low pressure extraction box CADTM-10/10-6M 1/3

Fan:

• Structure made of galvanized steel sheet, with thermal and acoustic insulation.

• CADTM-ALP, CADTM-ALPS, and CADTM-ALPF: Structure made of aluminum profiling, with thermal and acoustic insulation.

• Forward blade turbine, made of galvanized steel sheet.

• Cable entry gland.

• Double suction fans from the DTM series.

Motor:

• Closed motors with built-in thermal protection, class F, with ball bearings, protection IP54.

• Single-phase 220-240V.-50Hz., and three-phase 220-240/380-415V.-50Hz.

• Maximum air transport temperature: -20ºC to + 60ºC.

Finish:

• Anti-corrosive coating on galvanized steel sheet.

• CADTM-ALP, CADTM-ALPS, and CADTM-ALPF: Anti-corrosive coating on pre-coated steel sheet and aluminum profiling.

On demand:

• With circular propulsion.
