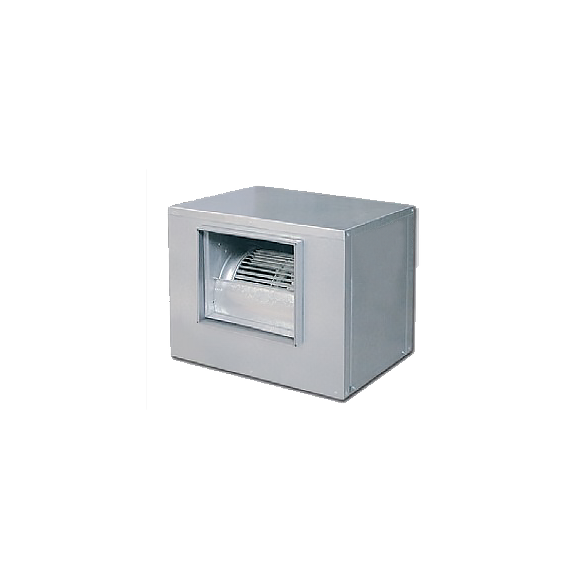

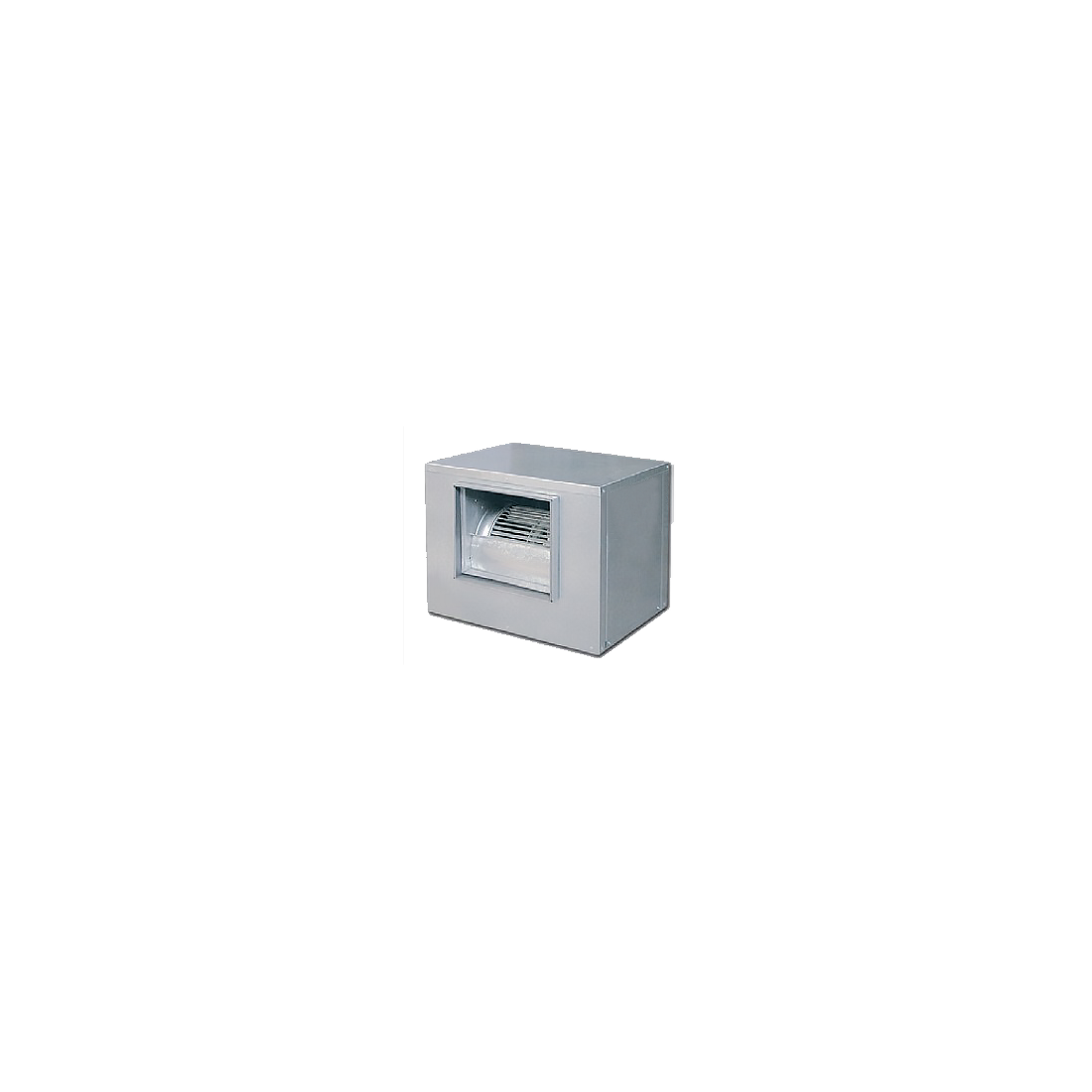

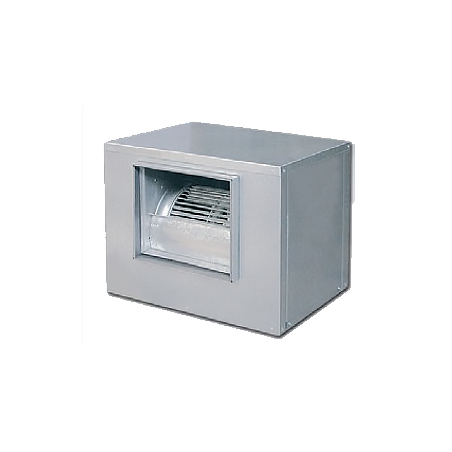

Low pressure extraction box CADTM-15/15-6T 3

Fan:

• Structure made of galvanized steel sheet, with thermal

and acoustic insulation.

• CADTM-ALP, CADTM-ALPS, and CADTM-ALPF: Structure made of

aluminum profiles, with thermal and acoustic insulation.

• Turbine with forward-curved blades, made of galvanized steel sheet.

• Cable entry with cable gland.

• Double suction fans from the DTM series.

Motor:

• Closed motors with built-in thermal protection, class F, with

ball bearings, IP54 protection.

• Single-phase 220-240V.-50Hz., and three-phase 220-240/380-415V.-50Hz.

• Maximum air transport temperature: -20ºC to +60ºC.

Finish:

• Anti-corrosive finish on galvanized steel sheet.

• CADTM-ALP, CADTM-ALPS, and CADTM-ALPF: Anti-corrosive finish on

pre-coated steel sheet and aluminum profiles.

On demand:

• With circular ducting.
