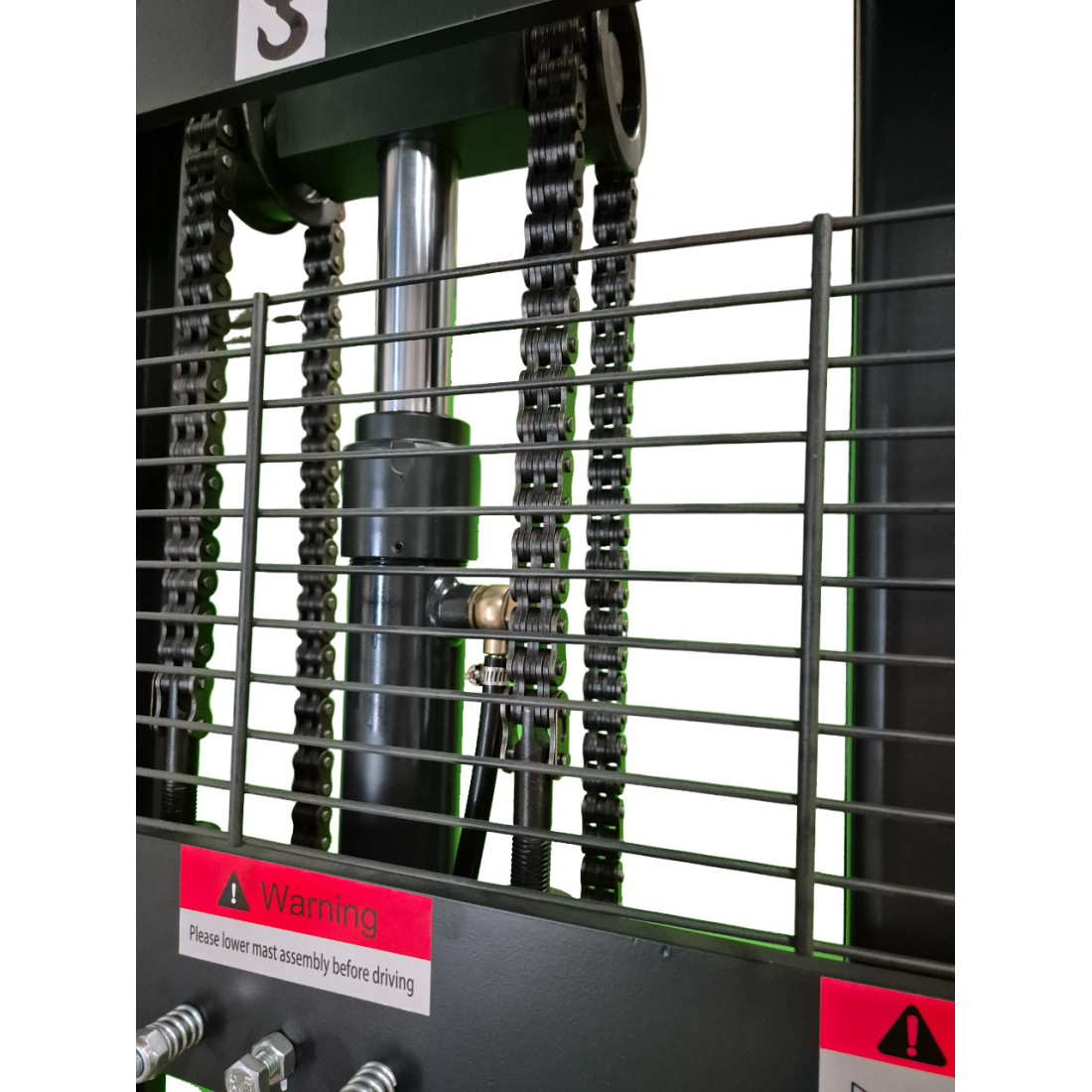

High-performance lifting pump for great work efficiency.
The steering tiller allows a turning radius of 1431mm.
Powerful low-consumption permanent magnet motor.
LED for energy level reading.
Easy charging at any standard 230 V outlet.

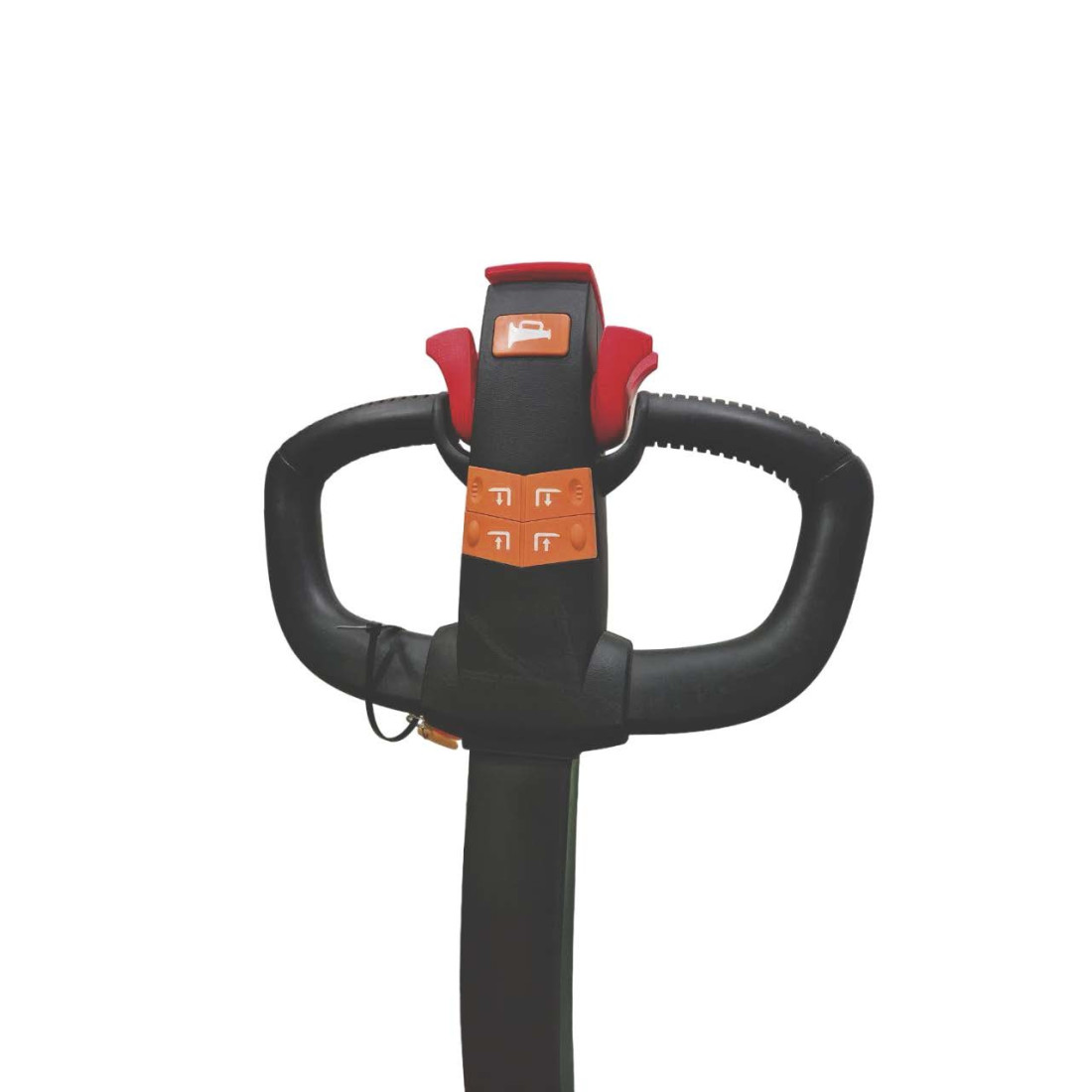

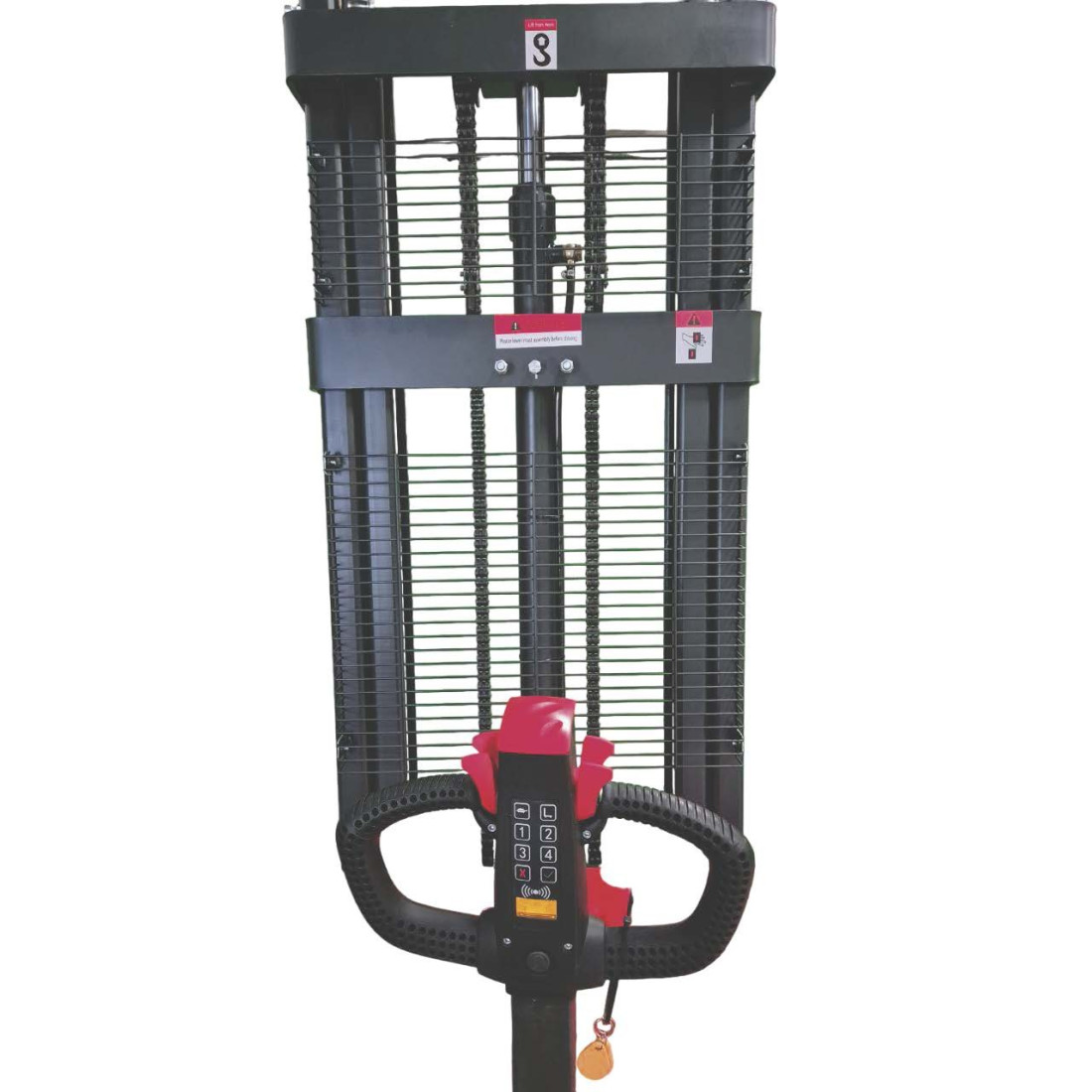

All controls are located on the steering tiller.
The lift control can be reached without losing sight of the load.
Electromagnetic brakes
The long-lasting battery requires no maintenance.
Brand Eutron

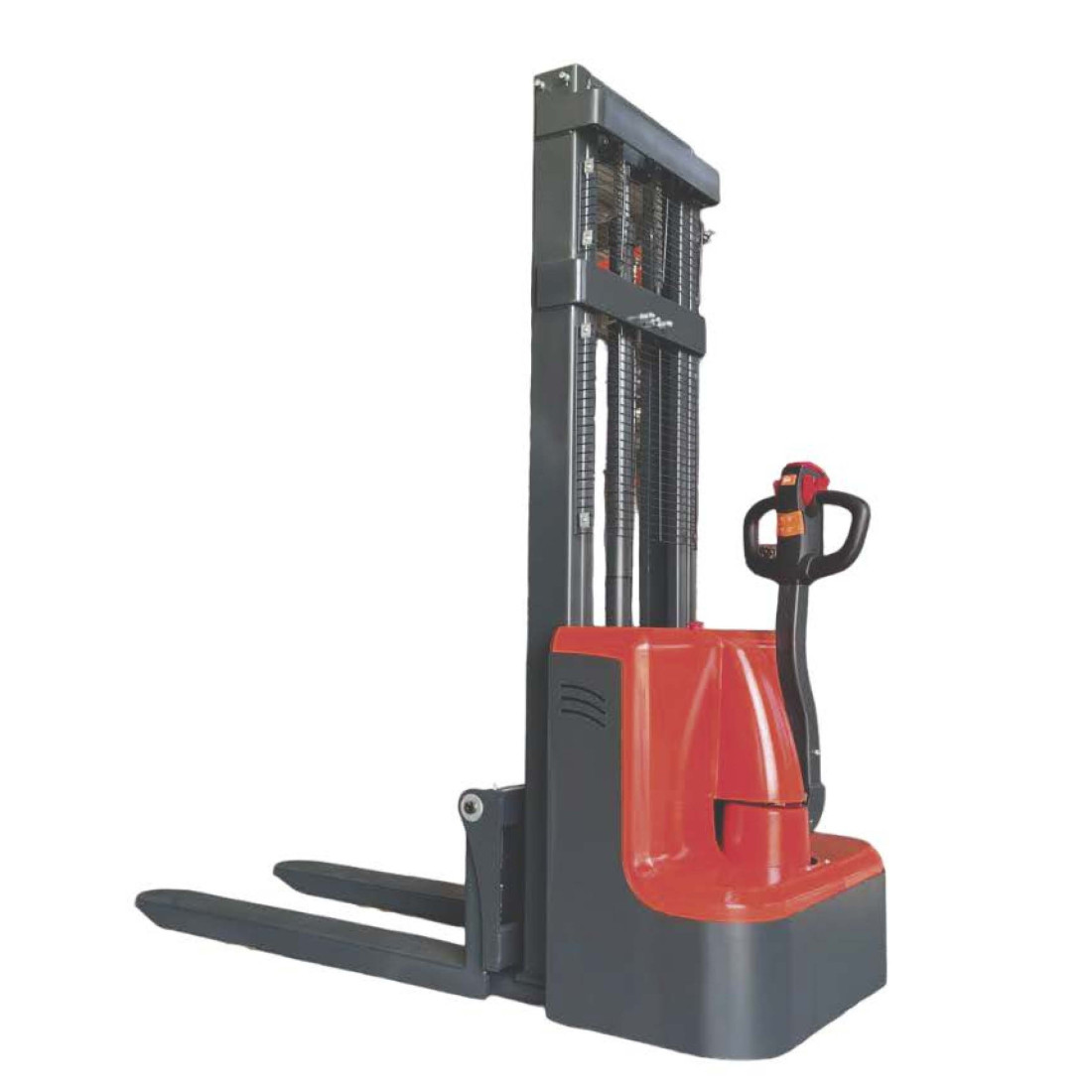

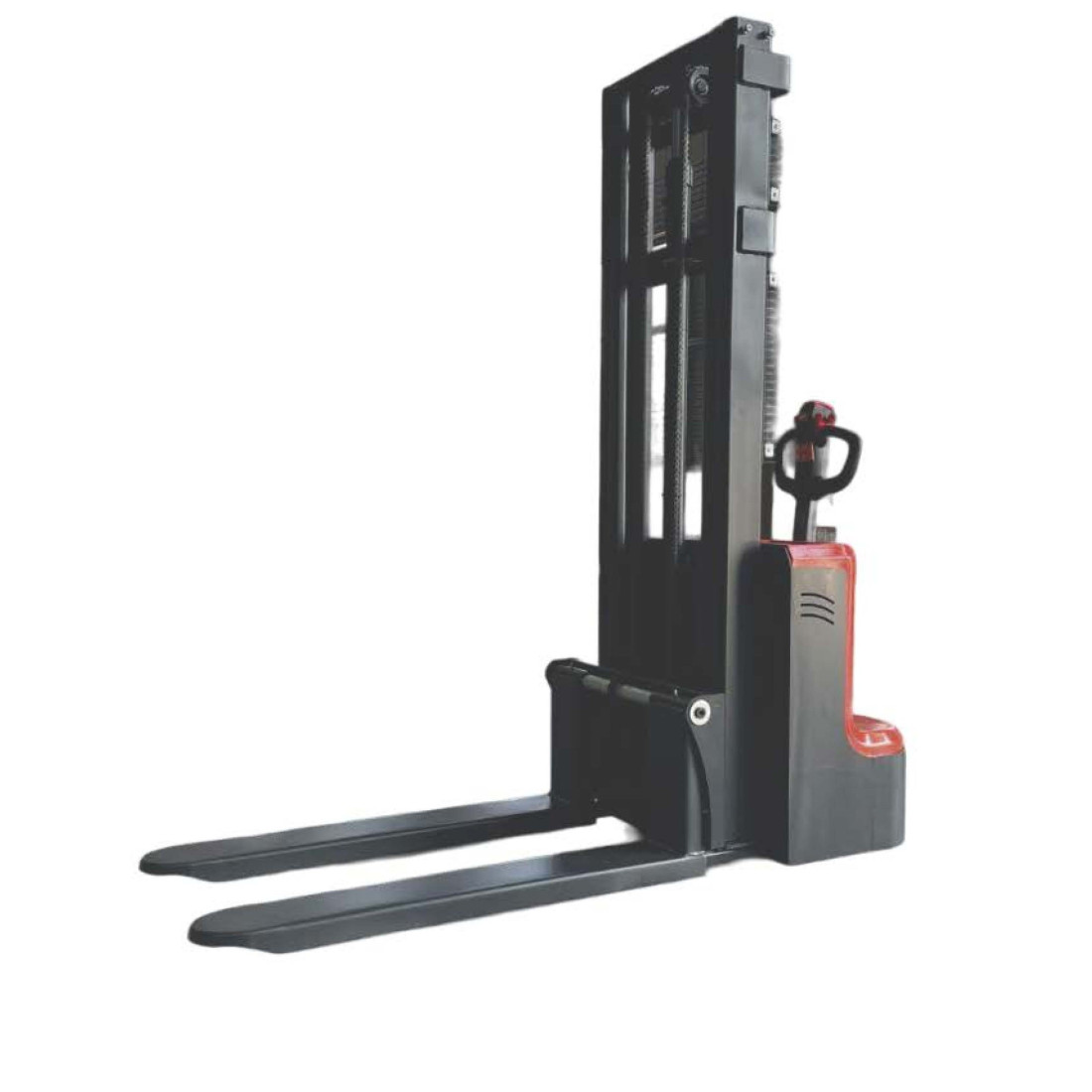

Model ES-15K electric type
Maximum nominal load 1500 kg
Load center C 500mm
Wheelbase Y 1277mm

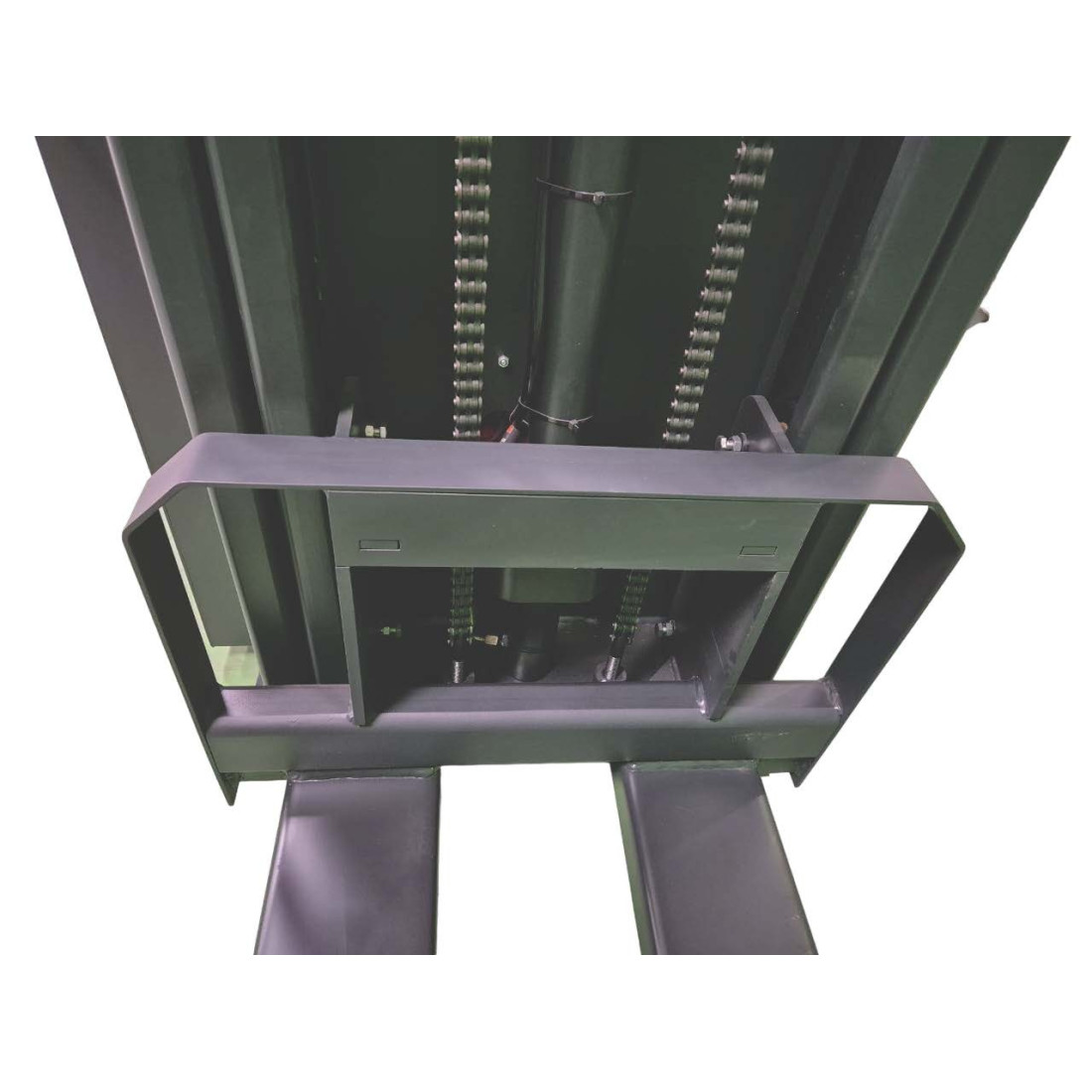

Lifting height with 2-stage mast 3000mm
Weight (excluding battery) 500 kg
Weight (including battery) 550 kg
Battery (Maintenance-free) 48V/52Ah
Overall fork width 680 mm
Fork length 1100mm
Charging voltage 220 V
Standard EU plug
PU WHEELS
DRIVE WHEEL (PrxAn) 0250x80mm
AUXILIARY WHEEL (PrxAn) 0125x50mm
BALANCE WHEEL (PrxAn) 080x70mm
