Highlighted Features:
✔ Electrohydraulic Lifting System: Controlled via buttons on the tiller for precise handling.
✔ Manual Traction with Double Wheels: Facilitates movement, even on uneven surfaces.
✔ Self-loading on Commercial Vehicles: Allows loading and unloading from vans without the need for ramps or lifts.
✔ Long-lasting Battery: Operates with a maintenance-free 12V/45Ah battery.
✔ Robust and Compact Design: Sturdy construction for intensive use and long durability.
Technical Specifications:
- Load Capacity: 500 kg
- Maximum Lifting Height: 1,300 mm
- Fork Dimensions: 680 x 110 mm
- Total Weight: 249 kg
- Battery: 12V/45Ah (maintenance-free)
- Charging Voltage: 220V
- Motor: DC with 0.8 kW power
- Lifting Speed (unloaded): 65 mm/s
- Lifting Speed (loaded): 55 mm/s
- Lowering Speed (unloaded): 65 mm/s
- Lowering Speed (loaded): 75 mm/s
- Total Chassis Length: 1,569 mm
- Total Chassis Width: 885 mm
- Minimum Mast Height: 1,395 mm
- Maximum Mast Height: 2,460 mm
- Wheelbase: 832 mm
- Minimum Turning Radius: 1,000 mm

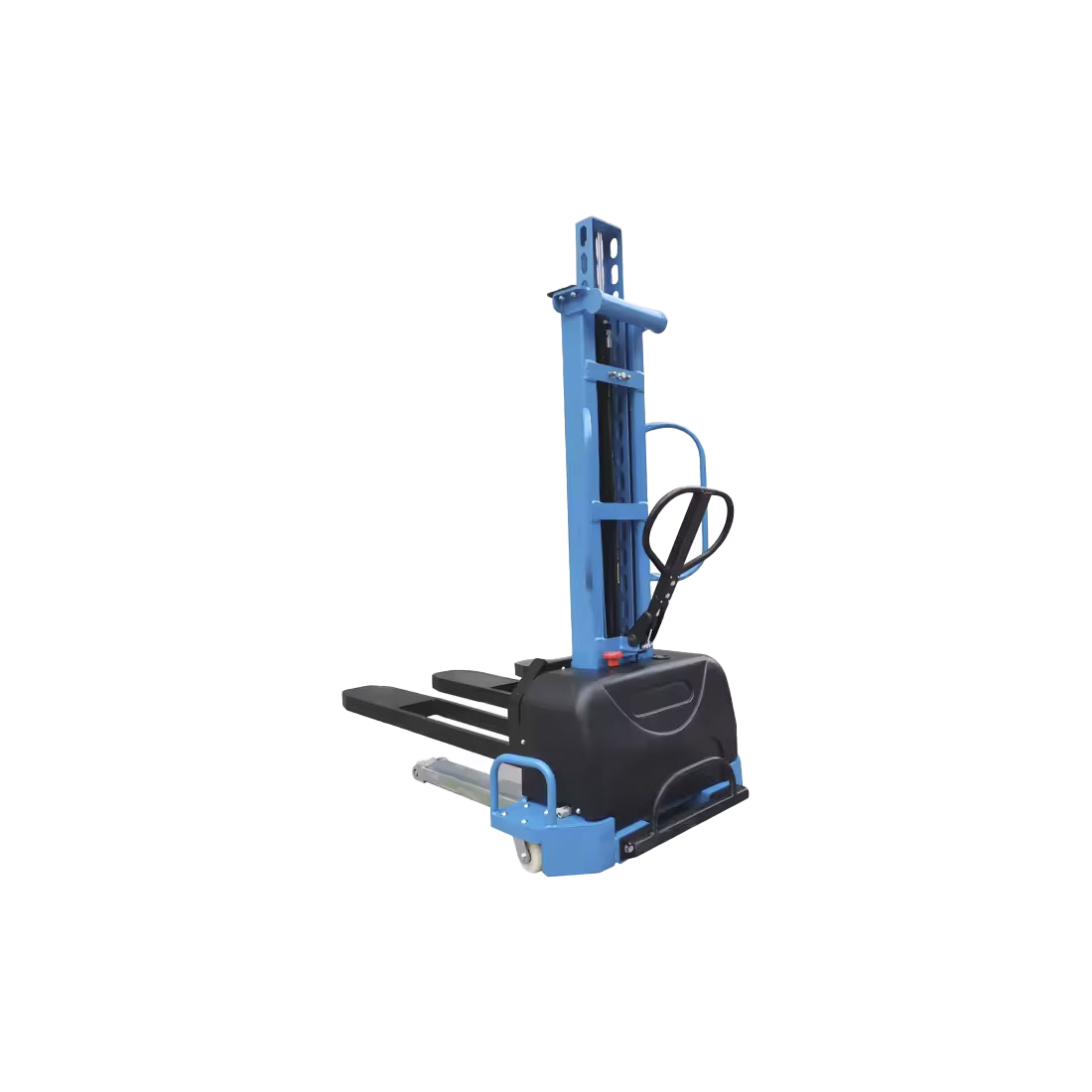

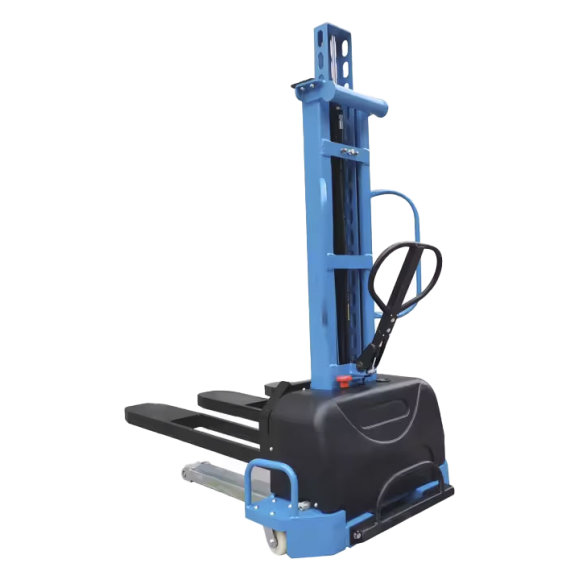

Advantages of the Self-Supporting Stacker ZTS-05:
✅ Space Optimization: Its compact design allows work in aisles as narrow as 1,200 mm.
✅ Increased Productivity: Fast lifting and lowering system to improve performance.
✅ Enhanced Safety: Robust construction and speed control system.
✅ Easy Transport: Balanced weight for simple and effective mobility.
The Self-Supporting Stacker ZTS-05 is the ideal solution for warehouses, supermarkets, and distribution centers looking to improve efficiency and safety in goods handling.
