Industrial Scale TMZ 60 M 260589

FEATURES:

• Tubular structure platform made of painted steel, with a plate in stainless steel and a column in stainless steel.
• Aluminum cell with IP65 protection.
• Column of 649mm with painted steel fixing base (model P447 mm).
• 4 adjustable feet in height up to an increase of 13 mm.
• Length of platform-display cable: 1200 mm (up to 1370 mm, depending on model).

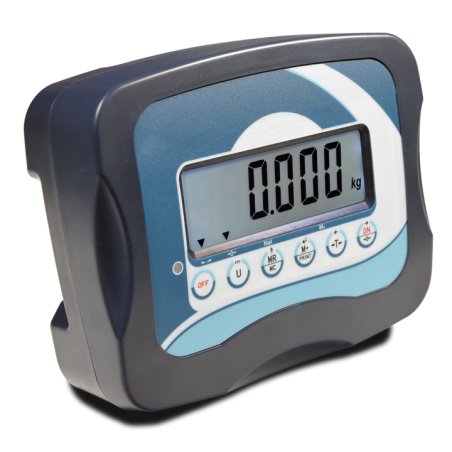

• Indicator in ABS, model BR15.
• IP54 protection.
• Waterproof keyboard with 5 function keys and power on/off keys.
• Backlit LCD display with 6 digits of 30 mm.
• Display backlighting with three modes: automatic, activated, and deactivated.
• ABS support for column.
• Includes wall anchoring holes.
• Operating temperature: –10ºC +40ºC.
• Power supply with AC/DC adapter 240Vac 50Hz.
• Rechargeable battery 6V/4Ah.
• Battery life with backlighting activated: approximately 120 hours.
• Battery life with backlighting deactivated: approximately 160 hours.
• Configurable gravity
• Unit 1 to choose from off, kg, t, and g: Unit 2 to choose from off, lb, lboz; Unit 3 to choose from off, Taiwan Jin, CA, or VISS.
• RS232 output. Data transmission in PC and printer format.
• Unit range / Multi range / Multi interval.
• Automatic disconnection (with desired time setting from 1 to 99 minutes).

FUNCTIONS:

• Accumulation
• Totalization
• Piece counting
• Zero
• Four hold modes: off, moving animal, peak value, stable, and stable with auto cancellation to zero
• Weight and piece control (limit function) with visual signal and alarm
• Three speeds of the AD converter (high, medium, and low)
• Configurable gravity
• Gross/Net
• Tare
