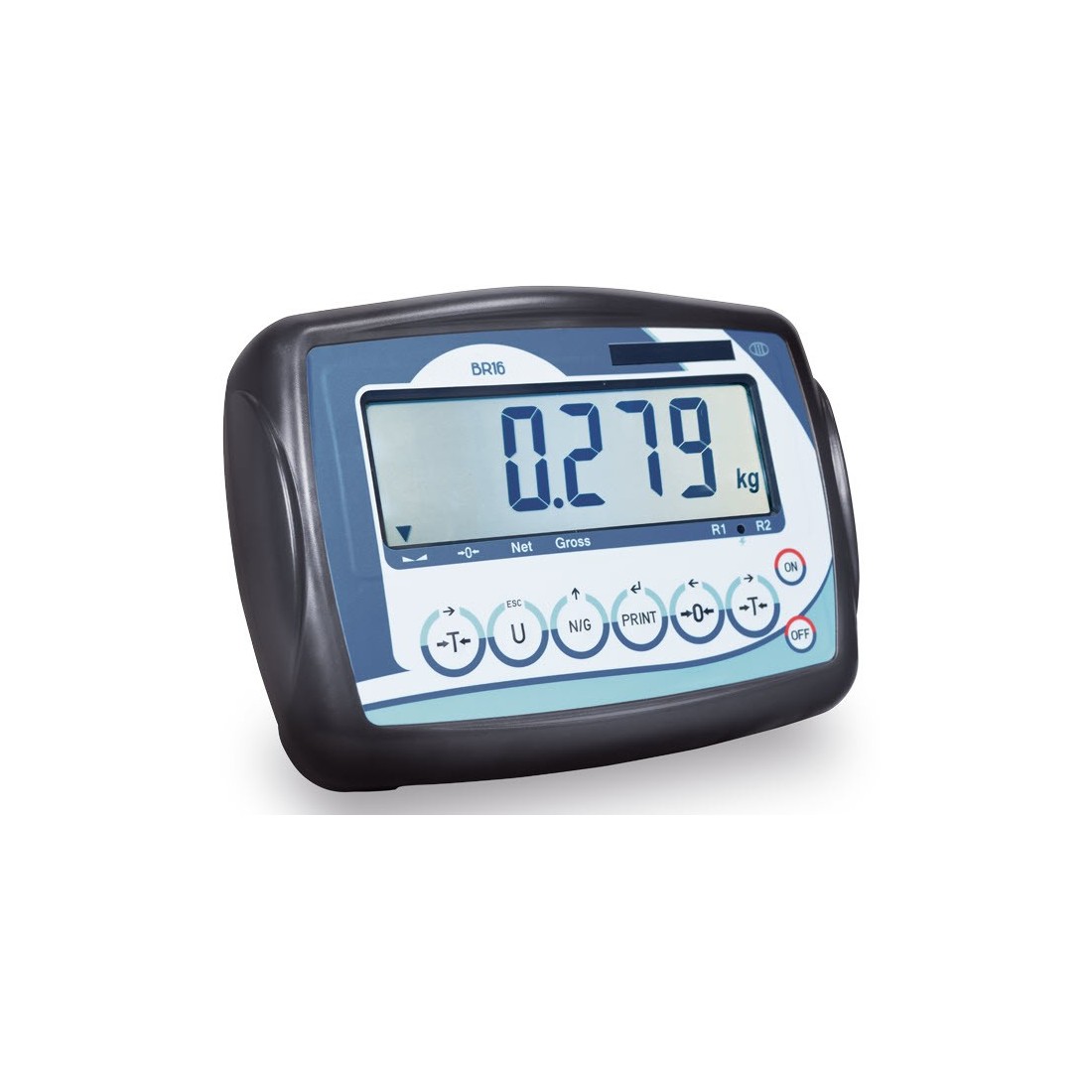

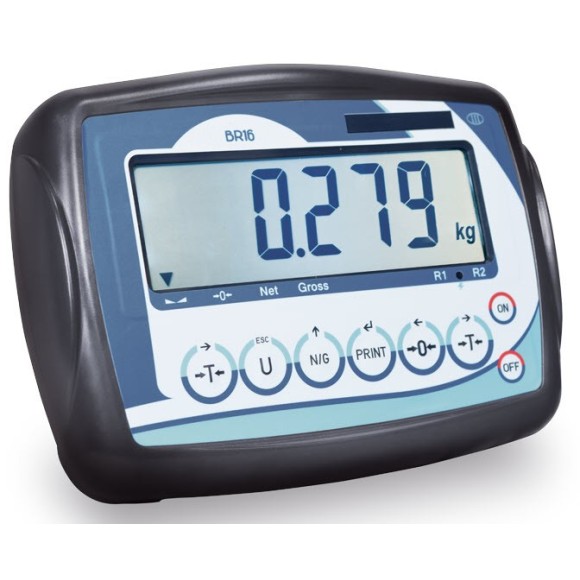

BR16 weight indicator without RS-232
BR16 weight indicator without RS-232

BR16 weight indicator without RS-232

BR16
€170.00
Tax excluded

Download PDF

Description

  • Weight-tare indicator.
  • ABS housing. IP54 protection.
  • Waterproof keyboard with 6 function keys and power on/off keys.
  • Large backlit LCD display with 6 digits of 40 mm.
  • Display backlighting with three modes: automatic, on, and off.
  • ABS support for column.
  • Includes wall mounting holes.
  • Blister included.
  • Up to 4 load cells of 350Ω each or 8 load cells of 700Ω.
  • Operating temperature: -10ºC to +40ºC.
  • Powered by network with AC/DC adapter 110-240Vac 50-60Hz.
  • Rechargeable battery 6V/4Ah.
  • Battery life with backlighting on and RS232 ON: approximately 80 hours.
  • Battery life with backlighting off and RS232 OFF: approximately 320 hours.
  • Units: kg, t or g (to be chosen at the time of order).
  • Optional RS232 output (DB9 connector). Data transmission in PC and printer format.
  • Single range / Multi range (to be chosen at the time of order).
  • Automatic disconnection (with desired time setting of 1 to 99 minutes).

Product Details

Weighing
Weight Viewer
Touch-Keyboard
Keyboard

Associated references: Check compatibility before purchasing.
