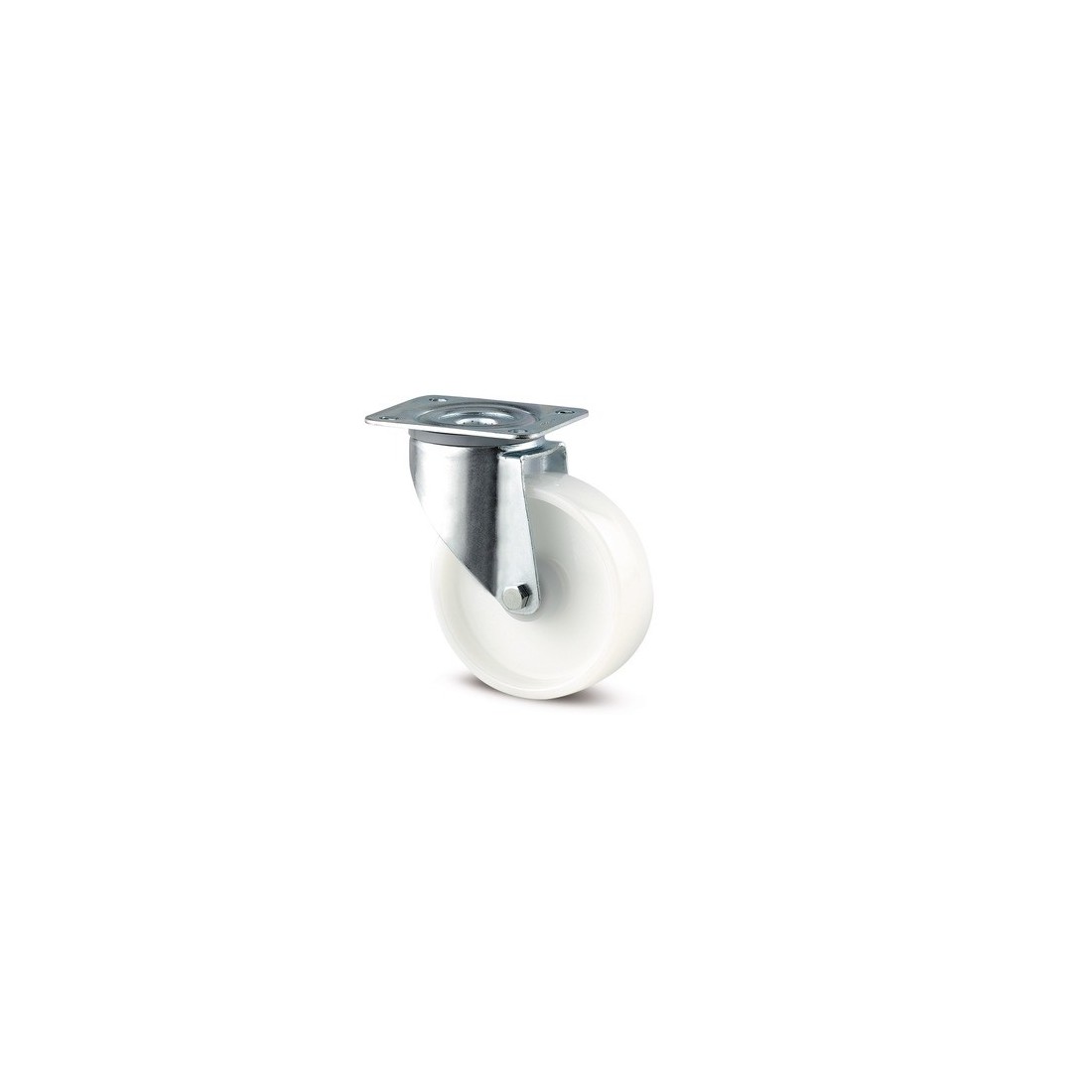

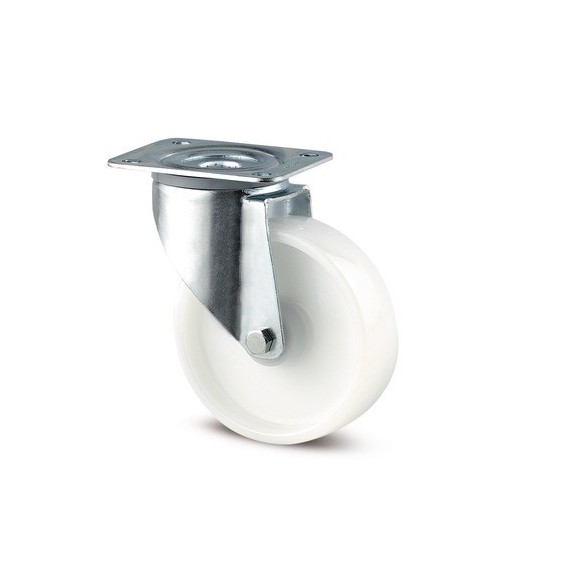

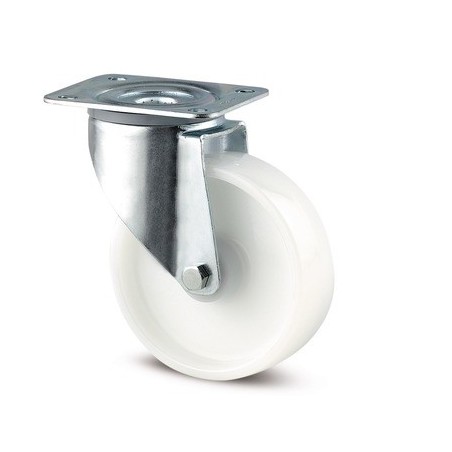

Swivel wheel 80 mm T03621 3370UOO080P62
Swivel wheel, Steel plate support, zinc-coated, two-row ball bearing swivel, protective plate for the swivel bearing, fixing plate. Wheel core made of polyamide, smooth hub
Wheel diameter 80 mm
Wheel width 34 mm
Plate size 104 x 85 mm
Drilling distance 80-60 mm
Hole diameter 9 mm
Offset 40 mm
Turning interference 160 mm
Total height 108 mm
Load capacity 200 kg
Temperature -25 / +80 °C
Standard EN 12532
Wheel weight 1 kg
Dome diameter 75 mm
Swivel radius 80 mm
Tread hardness D 75 Shore
Stainless No
Electrical conductivity No
Support Swivel wheels
