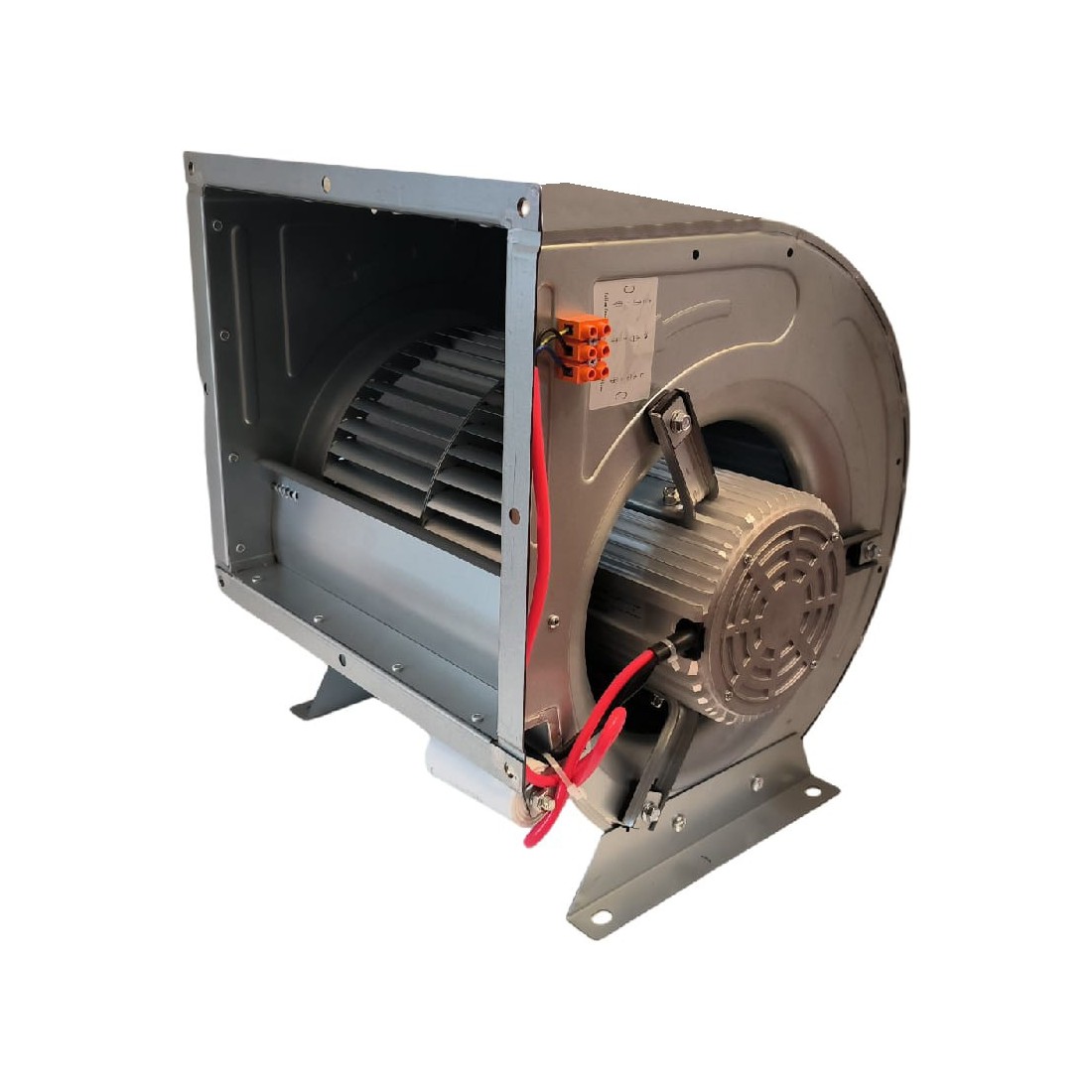

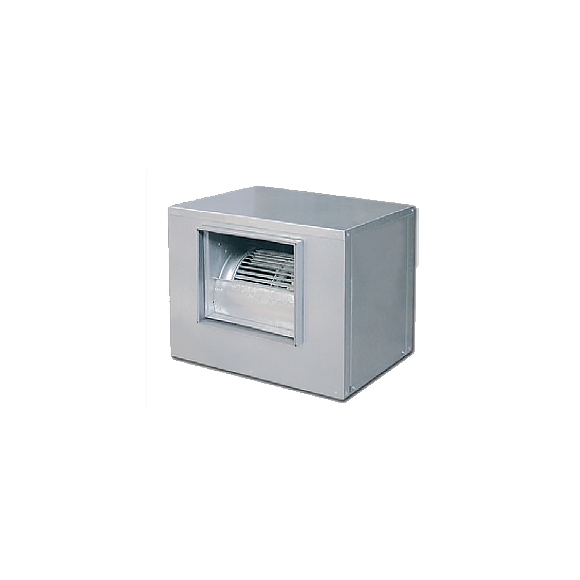

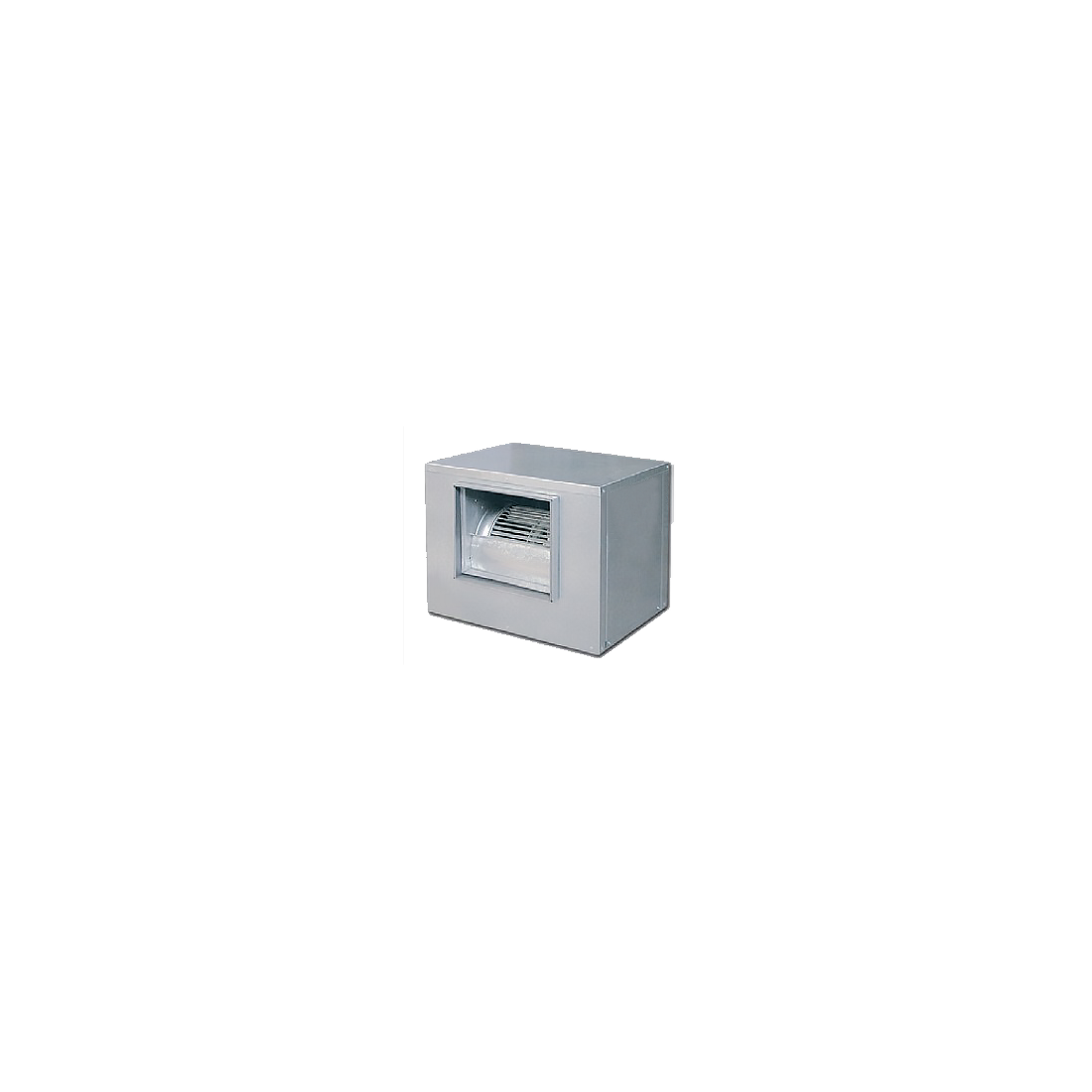

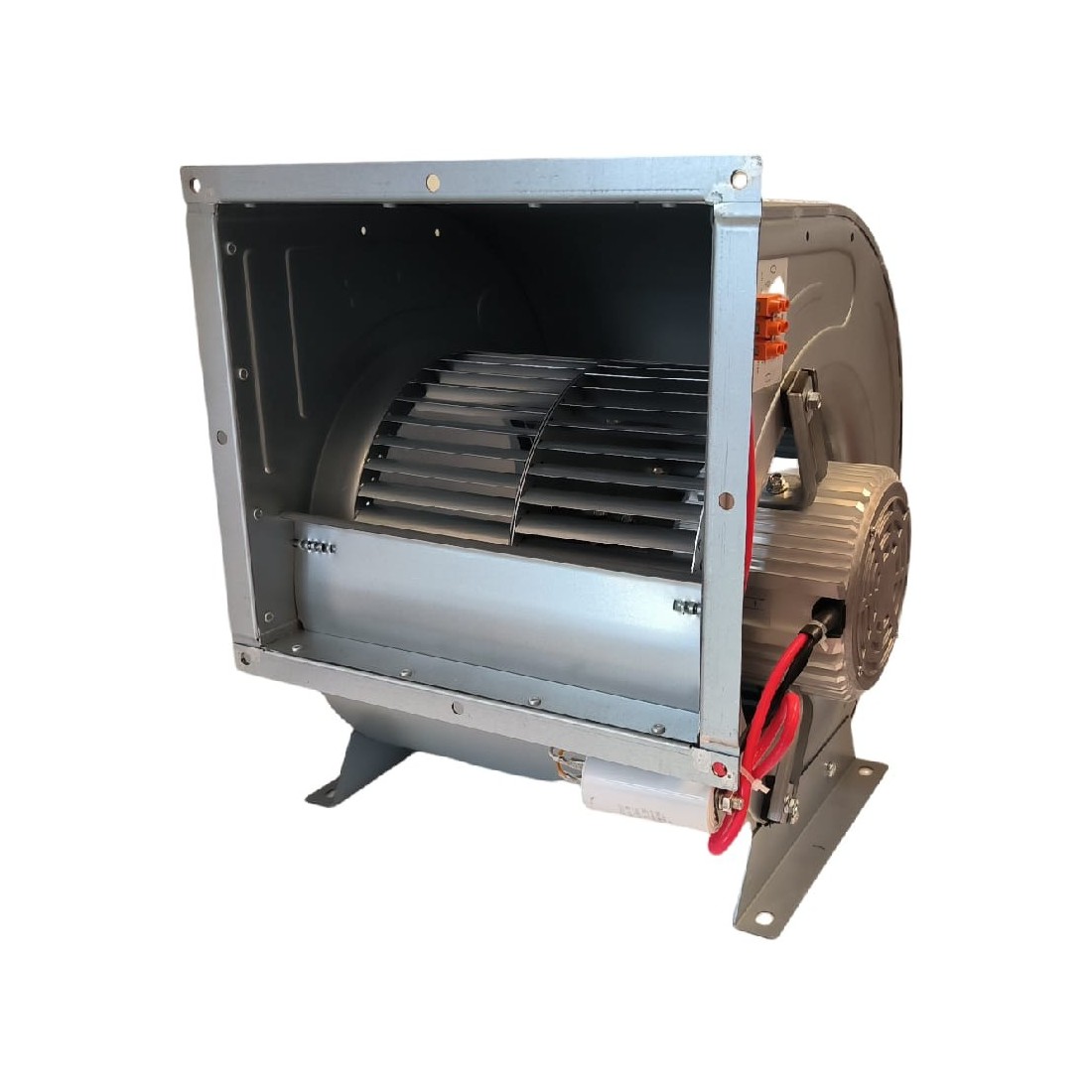

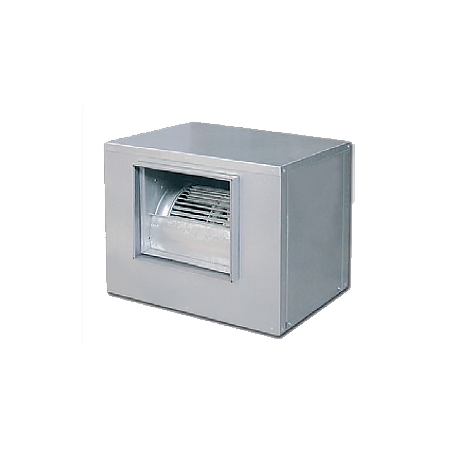

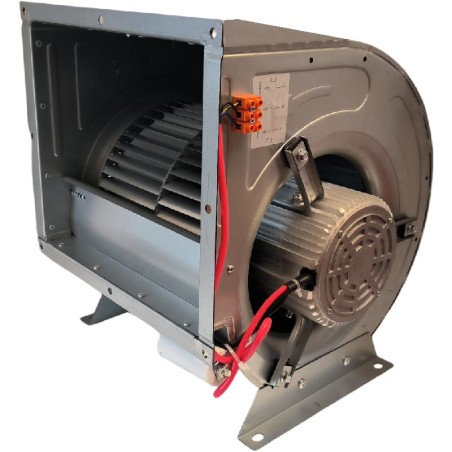

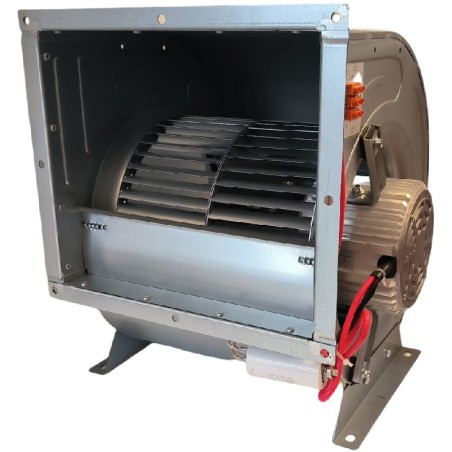

Extraction box LKZ 10/10-4M 1/2M

Material and Design

• Structure made of galvanized steel with anticorrosive treatment.

• Turbine with blades facing forward, also made of galvanized steel.

• Includes blind cover.

• Resistant finish for demanding environments.

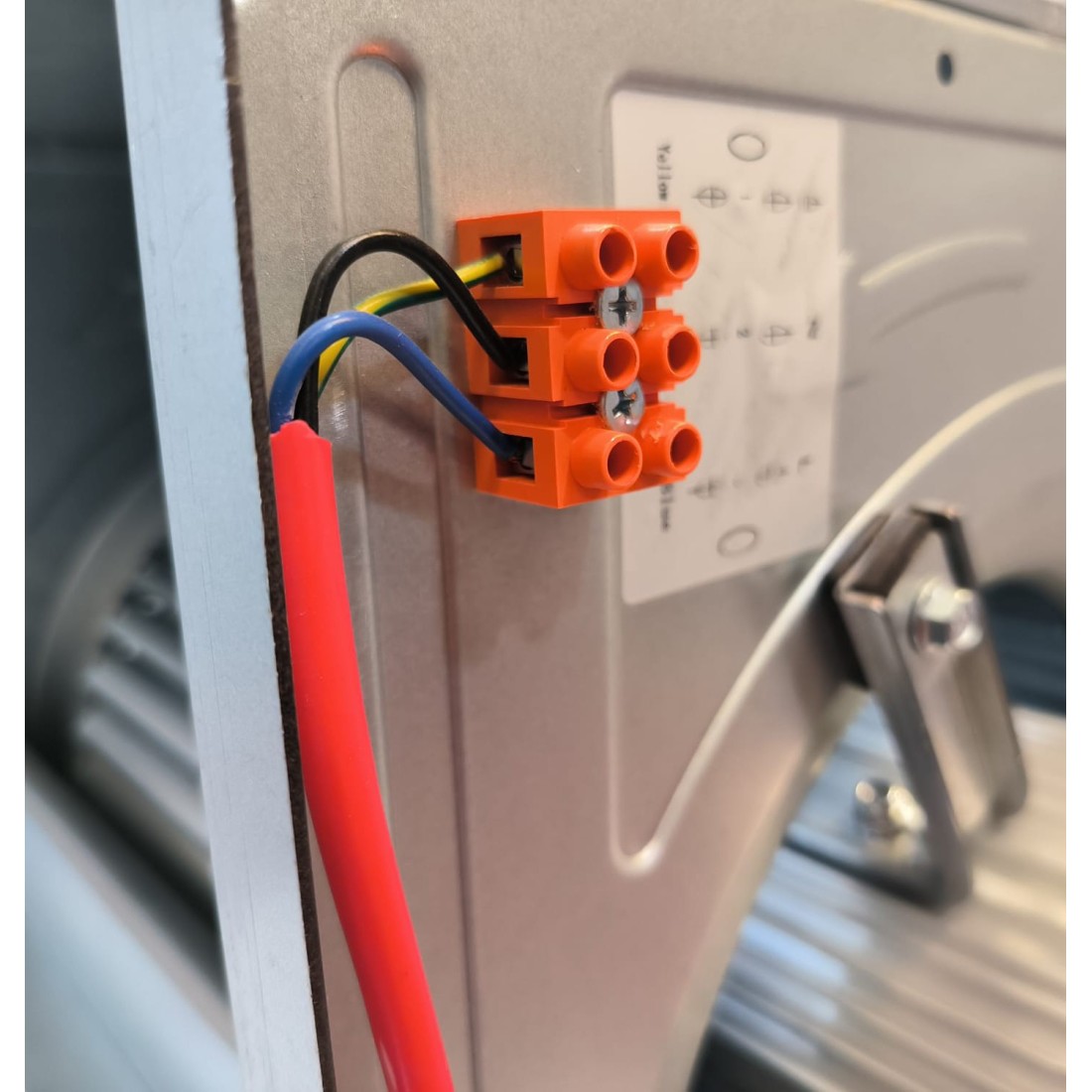

• Electrical connection via connection plug.

Technical Specifications

• Motor: High efficiency (HE), compliance with ErP 2015 standards.

• Type of motor: Closed, with built-in thermal protector, class F, ball bearings.

• Protection: IP54.

• Speed: 1250 rpm (1 speed).

• Voltage: Single-phase 220-240 V AC – 50 Hz.

• Power: 450 W.

• Air flow: 2800 m³/h.

• Sound level: 65 dB.

• Air temperature to be transported: -20 ºC to +60 ºC.

• Capacitor: 20 μF.

Included Supplies

• Extraction box with mounted turbine.

• Blind cover.

• Electrical connection plug.

Additional Features

• Easy installation and maintenance.

• Ideal for general ventilation applications or localized extraction.

• Designed for a long service life in demanding conditions.
