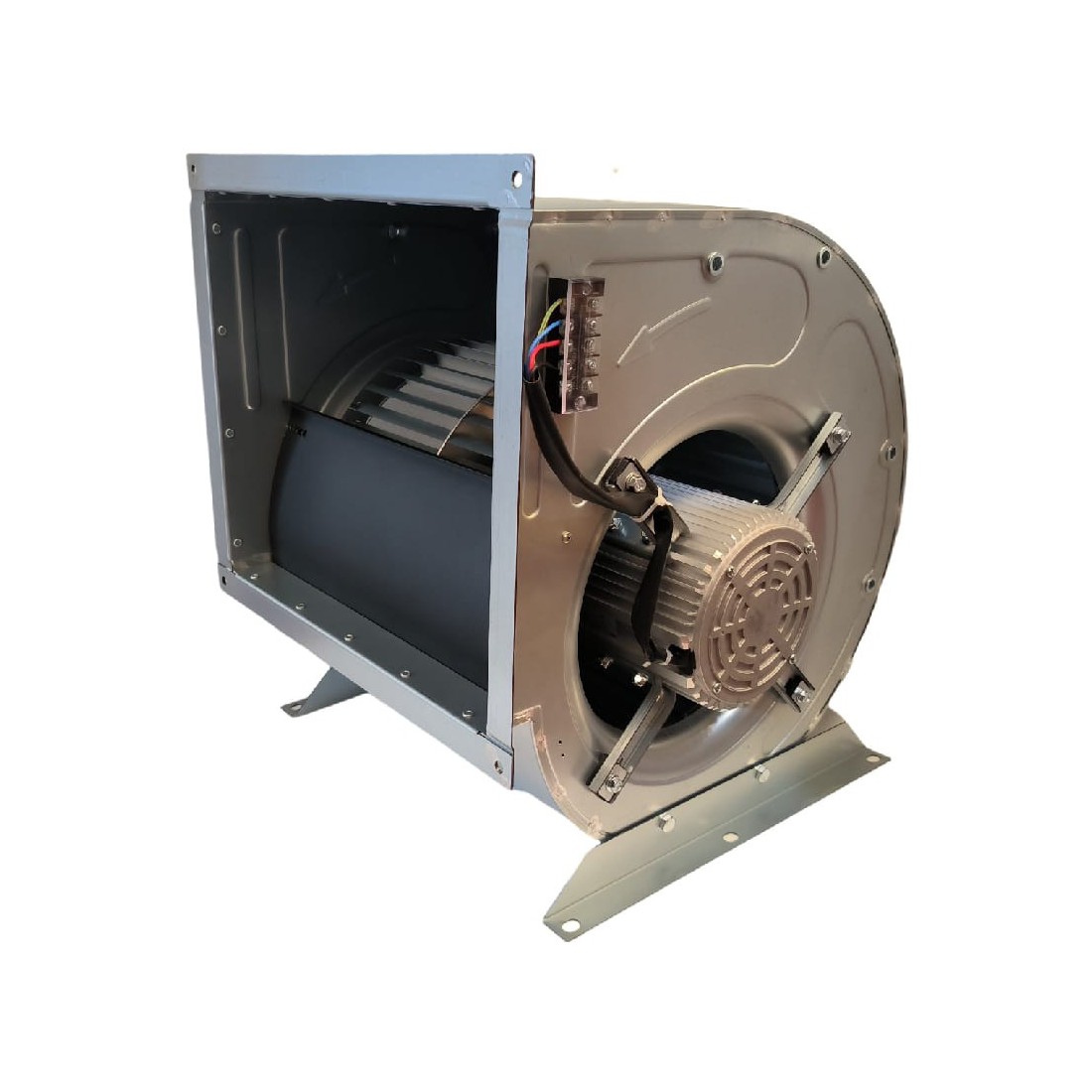

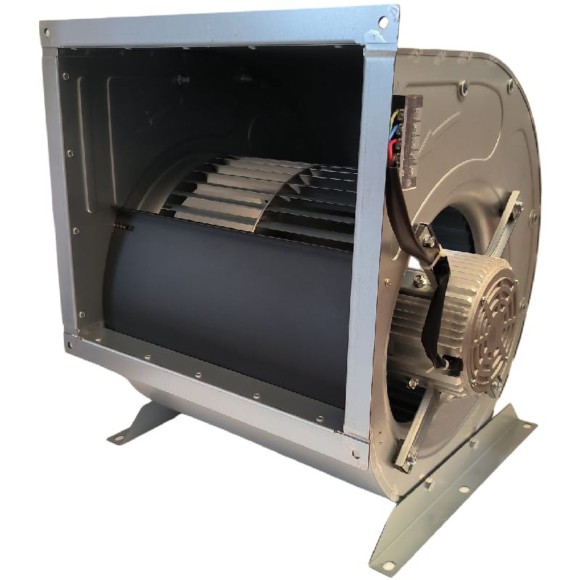

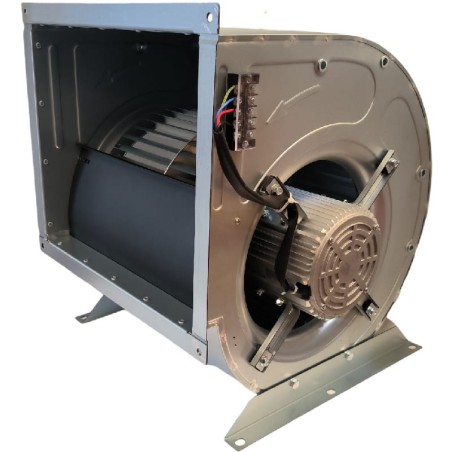

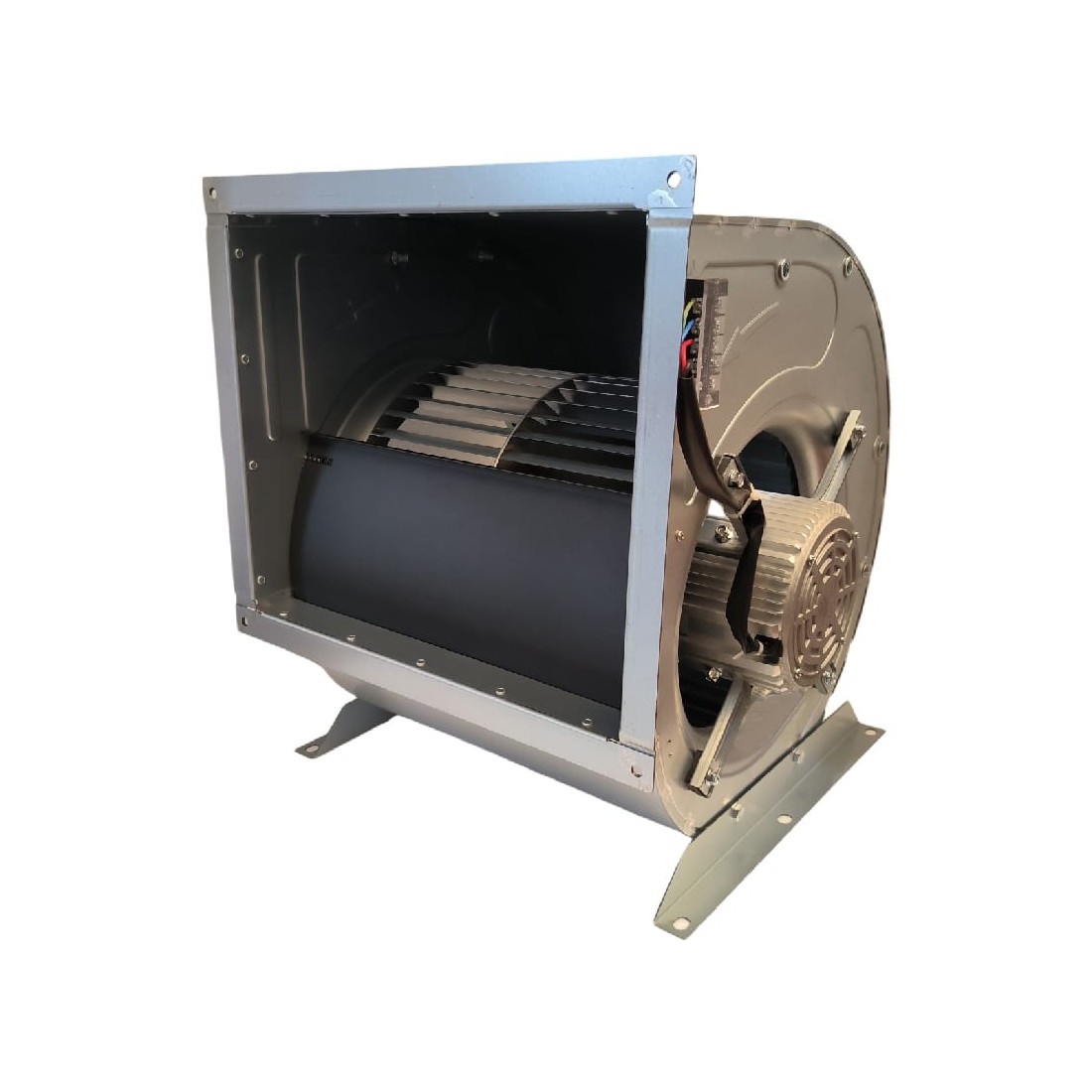

Centrifugal fan LKZ 12/12-6T 1 1/2T EFF

Name: Centrifugal fan LKZ 12/12-6T 1 1/2T EFF
Brand: Eutron
SKU: 9049
Price: 485 EUR
Availability: InStock

Reference 9049

€485.00

Tax excluded

LKZ12-12 12/12-6T 1 1/2M, 1 SPEED, 850R/M, 380V, 1.1KW, 7800R/H, 75DB

Download PDF

Description

Fan:

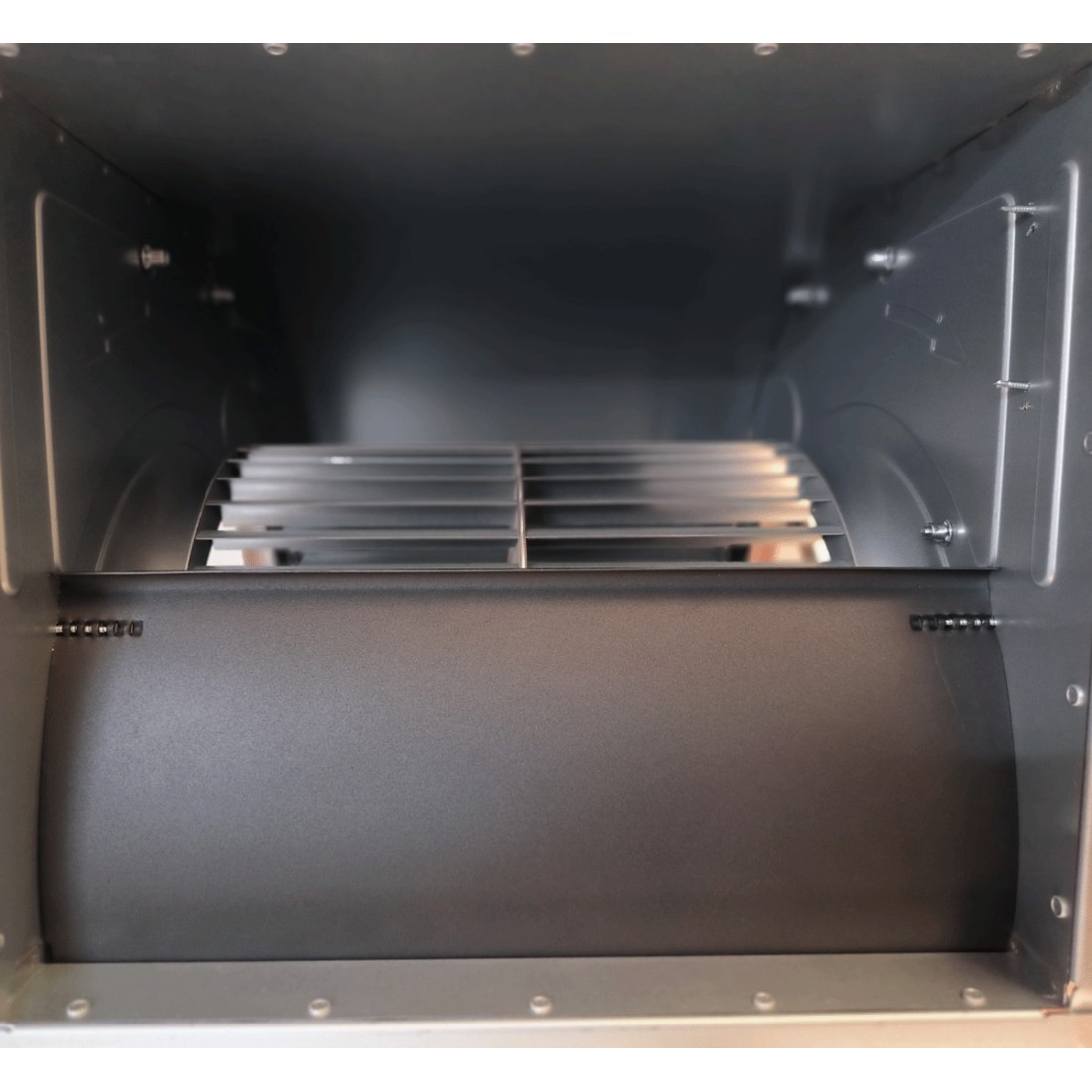

Enclosure made of galvanized steel sheet.

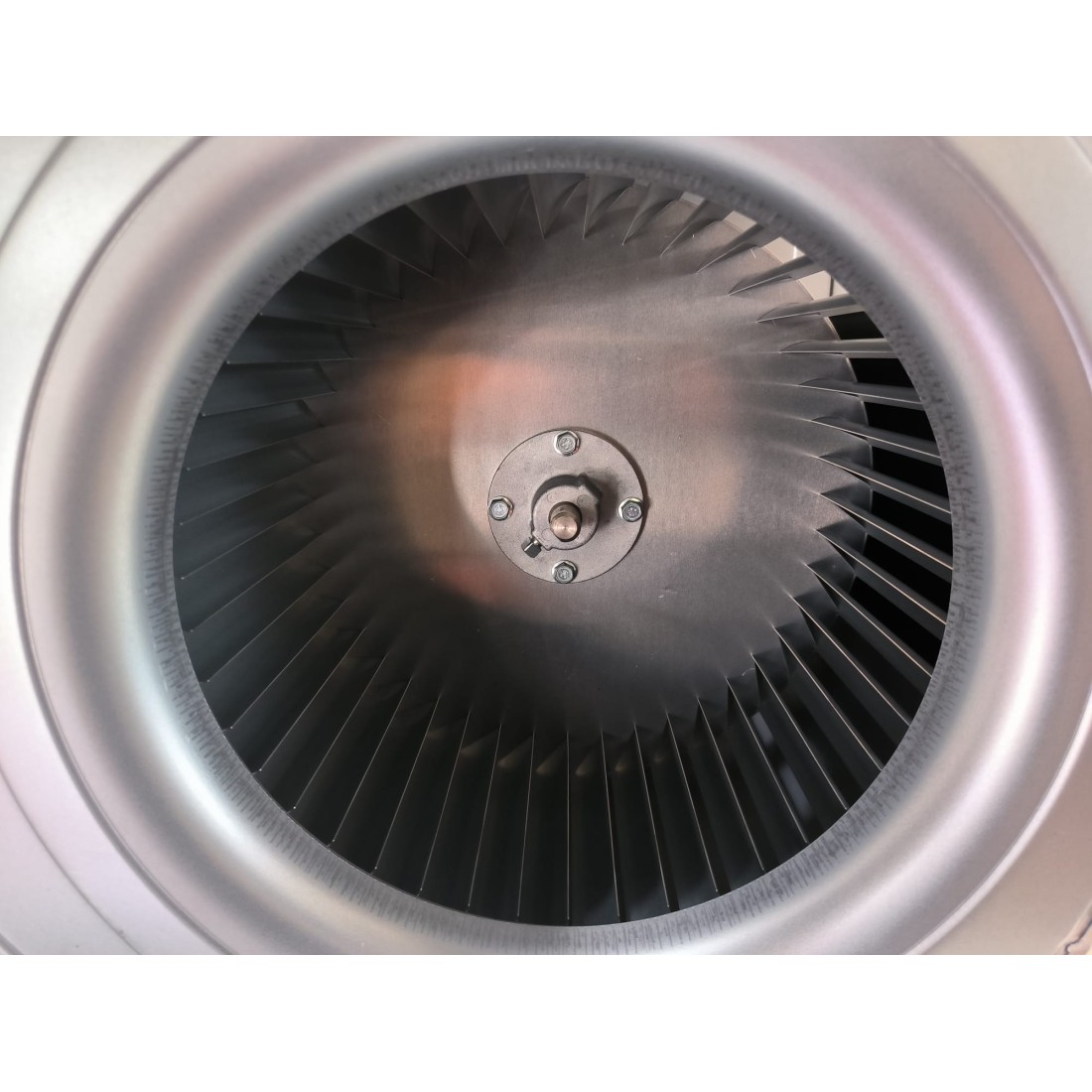

Turbine with forward-curved blades, made of galvanized steel sheet.

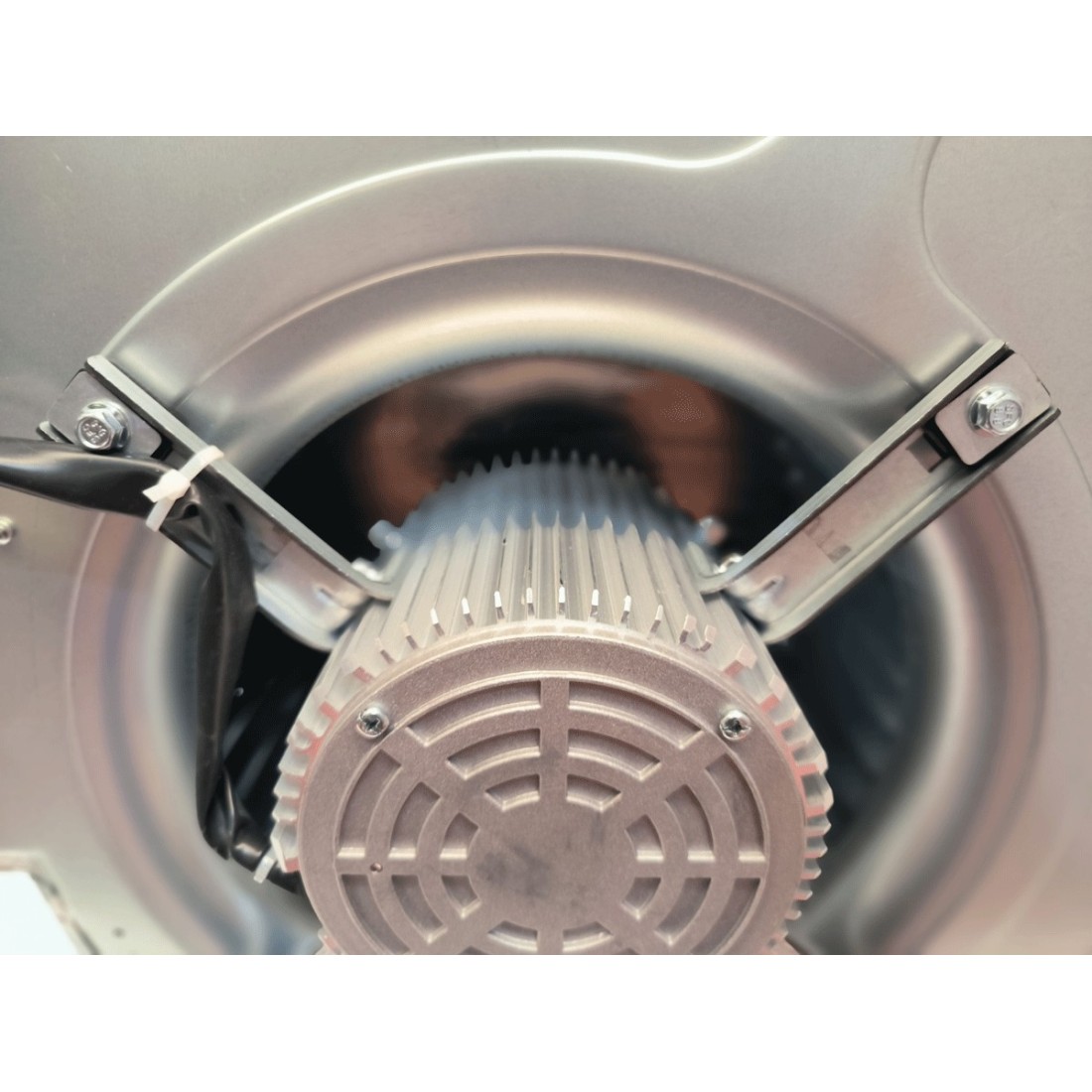

Motor:

High efficiency (HE) motors to comply with ErP 2015.
Closed motors with built-in thermal protector, class F, with ball bearings, IP54 protection.
Three-phase 380V AC-50Hz
Maximum air temperature to be transported: -20ºC to +60ºC.
Speed 850 rpm, 1 speed
Decibels 75
Power 1100W
Air flow 6300 m³/hour

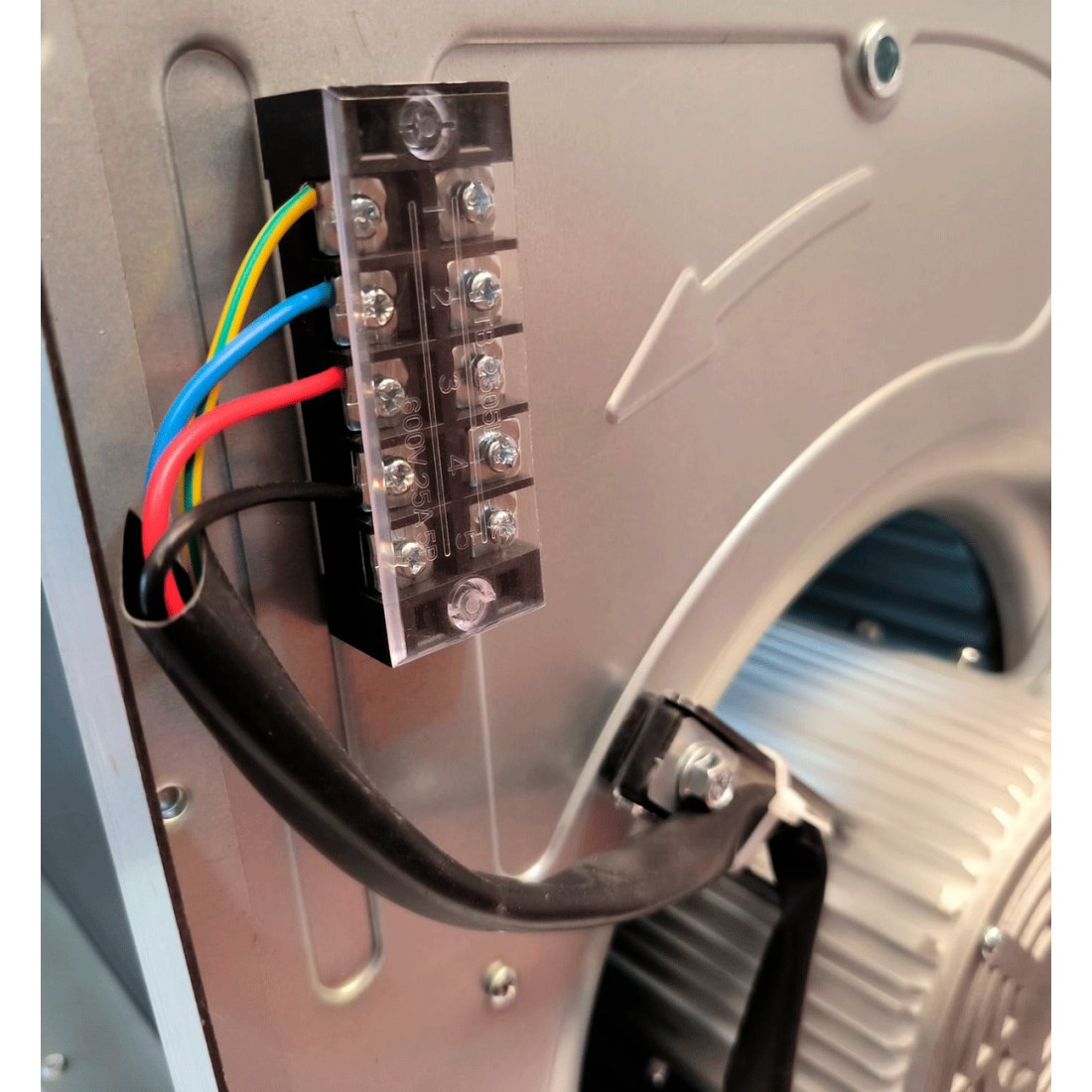

Connection via splice plug
Net weight 24.20 kg
Gross weight 25.50 kg

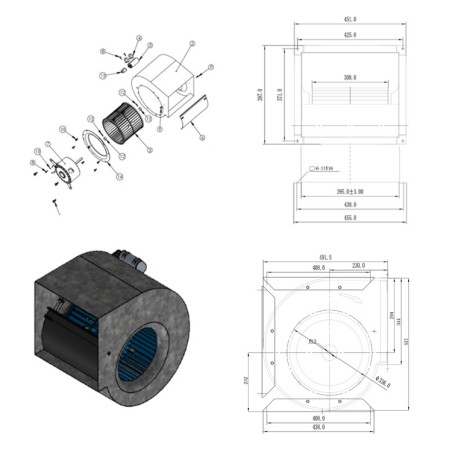

Packaging dimensions 580x485x515mm

Finish:

Corrosion-resistant galvanized steel sheet.

Product Details

Power Supply Voltage: 380-400V 50Hz
Power Watts: 1100W
Hospitality Furniture: Bells Accessories
Bells Accessories: Ventilador Centrifugo
