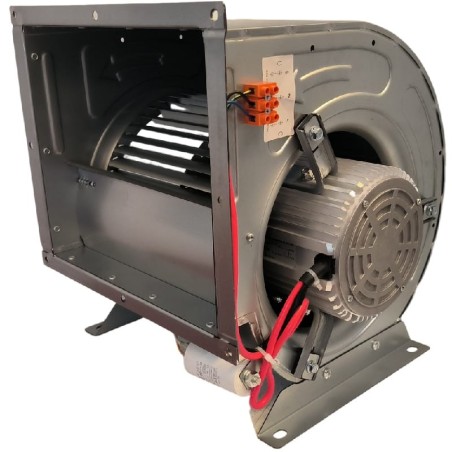

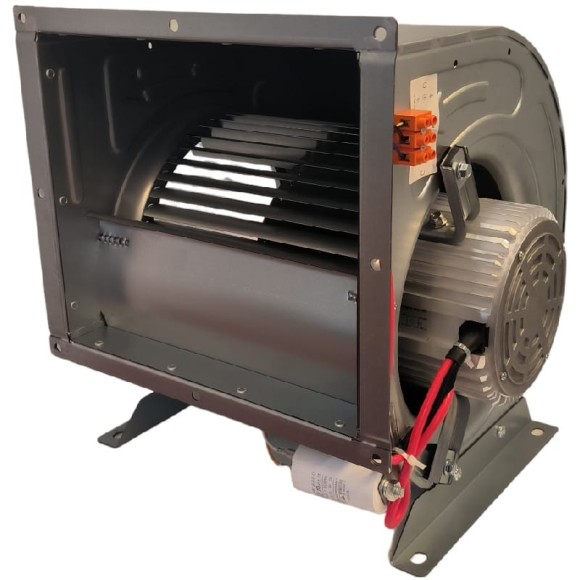

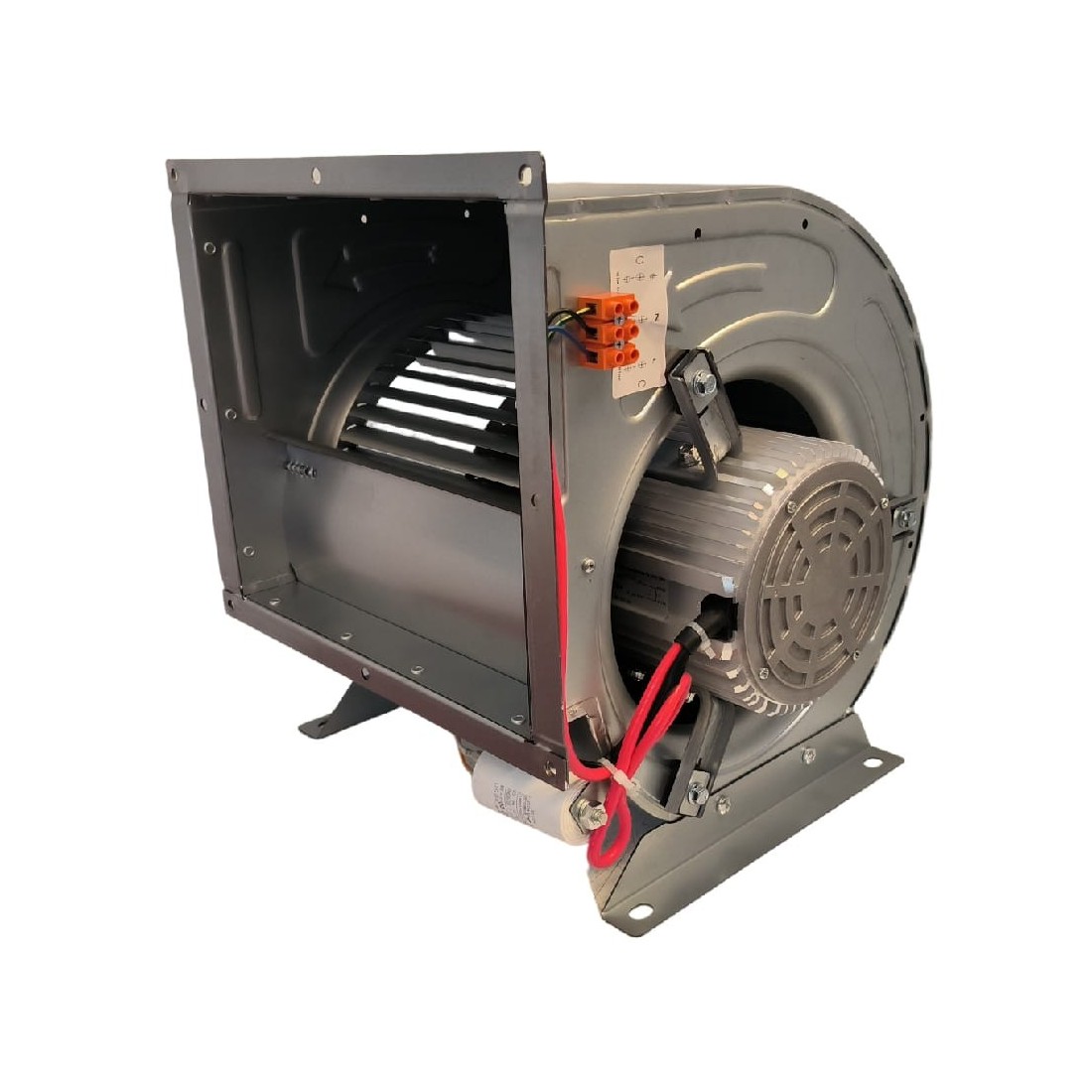

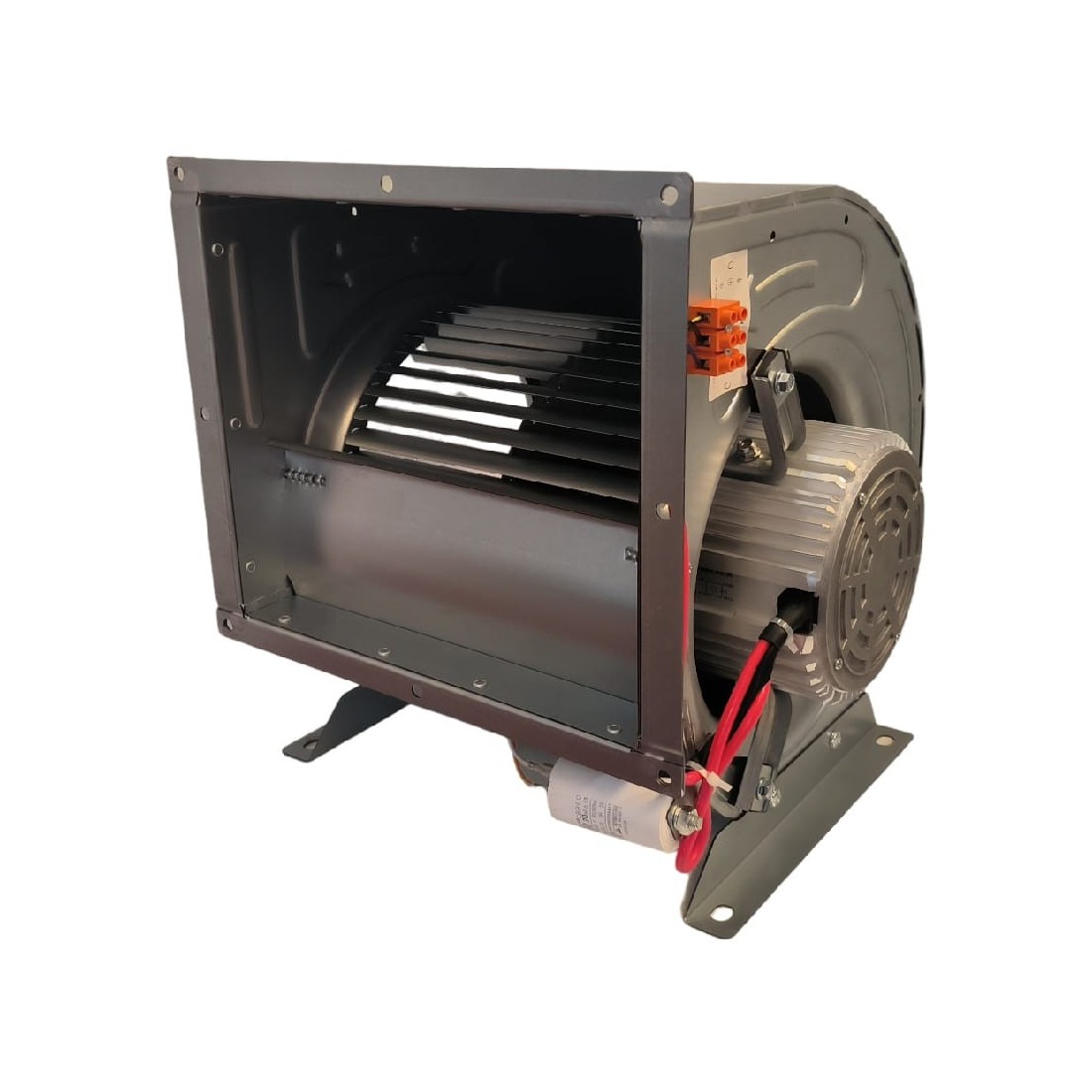

Centrifugal fan LKZ 9/9-4M 1/2 EFF

Name: Centrifugal fan LKZ 9/9-4M 1/2 EFF
Brand: Eutron
SKU: 9041
Price: 285 EUR
Availability: InStock

Reference 9041

€285.00

Tax excluded

Download PDF

Description

Fan:

Enclosure made of galvanized steel sheet.
Forward-curved blade turbine, made of galvanized steel sheet.

Motor:

High efficiency (HE) motors to comply with ErP 2015.
Closed motors with built-in thermal protection, class F, with ball bearings, IP54 protection.
Single-phase 220-240V AC-50Hz
Maximum air temperature to be transported: -20ºC to +60ºC.
Speed 1250 rpm 1 speed
Decibels 70
Capacitor 20 μF
Power 370W
Air flow 3000 m³ - hour

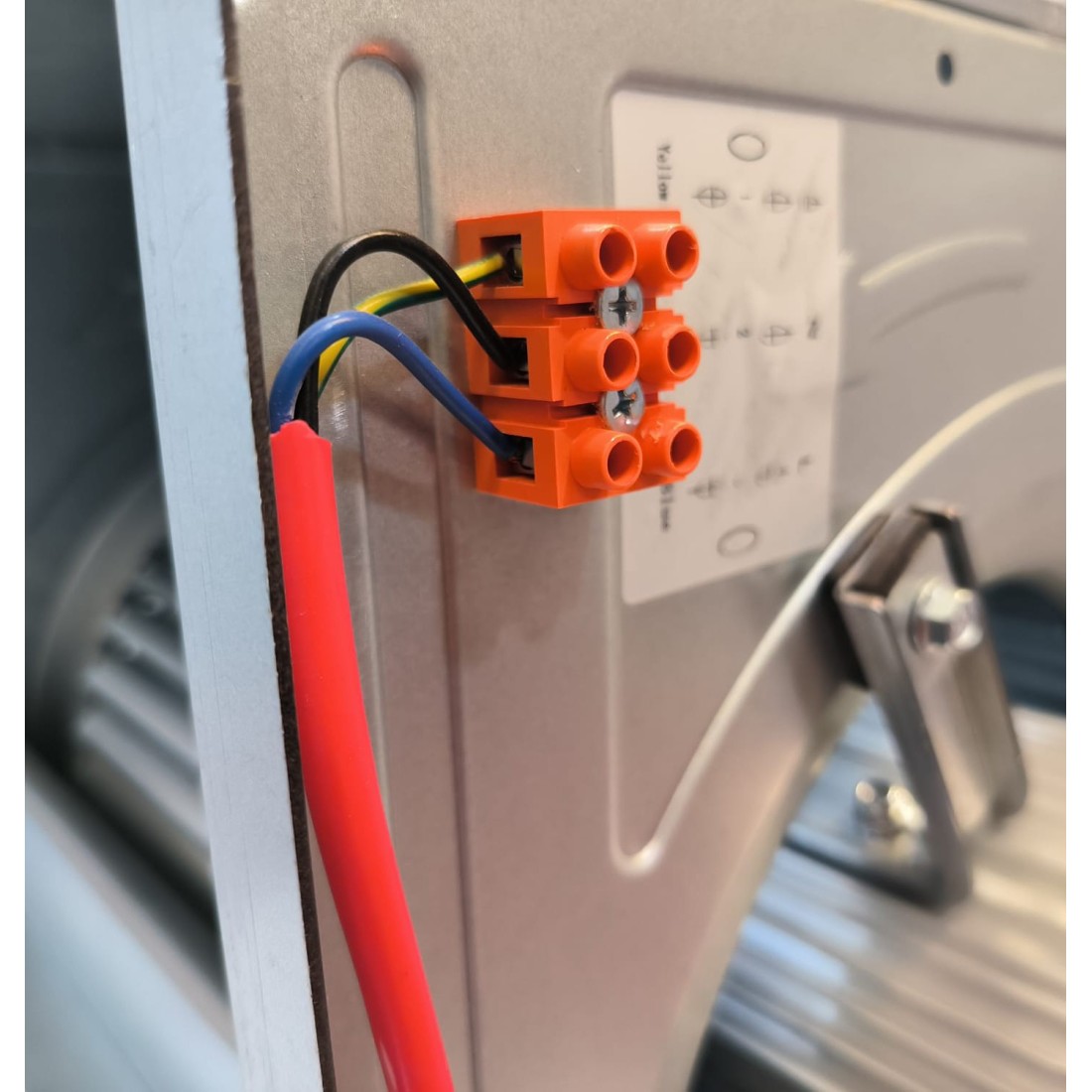

Connection via connector plug
Net weight 15.60 kg
Gross weight 14.90 kg
Packaging dimensions 420x395x400mm

Finish:

Corrosion-resistant galvanized steel sheet.

Product Details

Power Supply Voltage: 220-240V 50Hz
Power Watts: 550W
Hospitality Furniture: Bells Accessories
Bells Accessories: Ventilador Centrifugo
