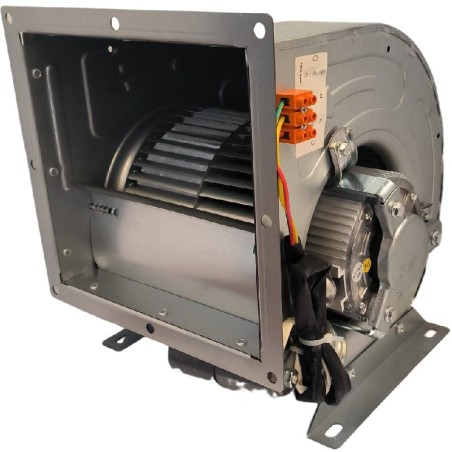

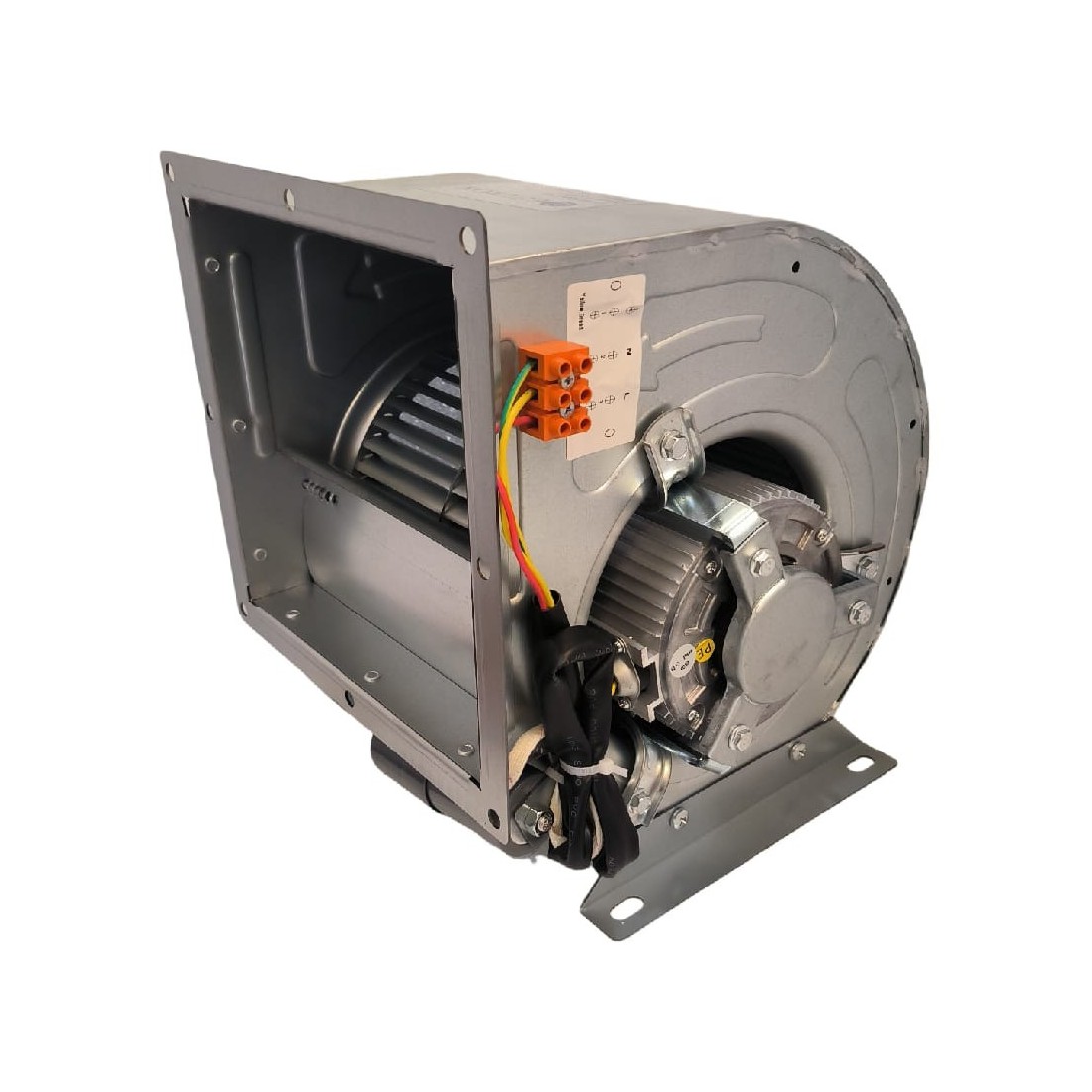

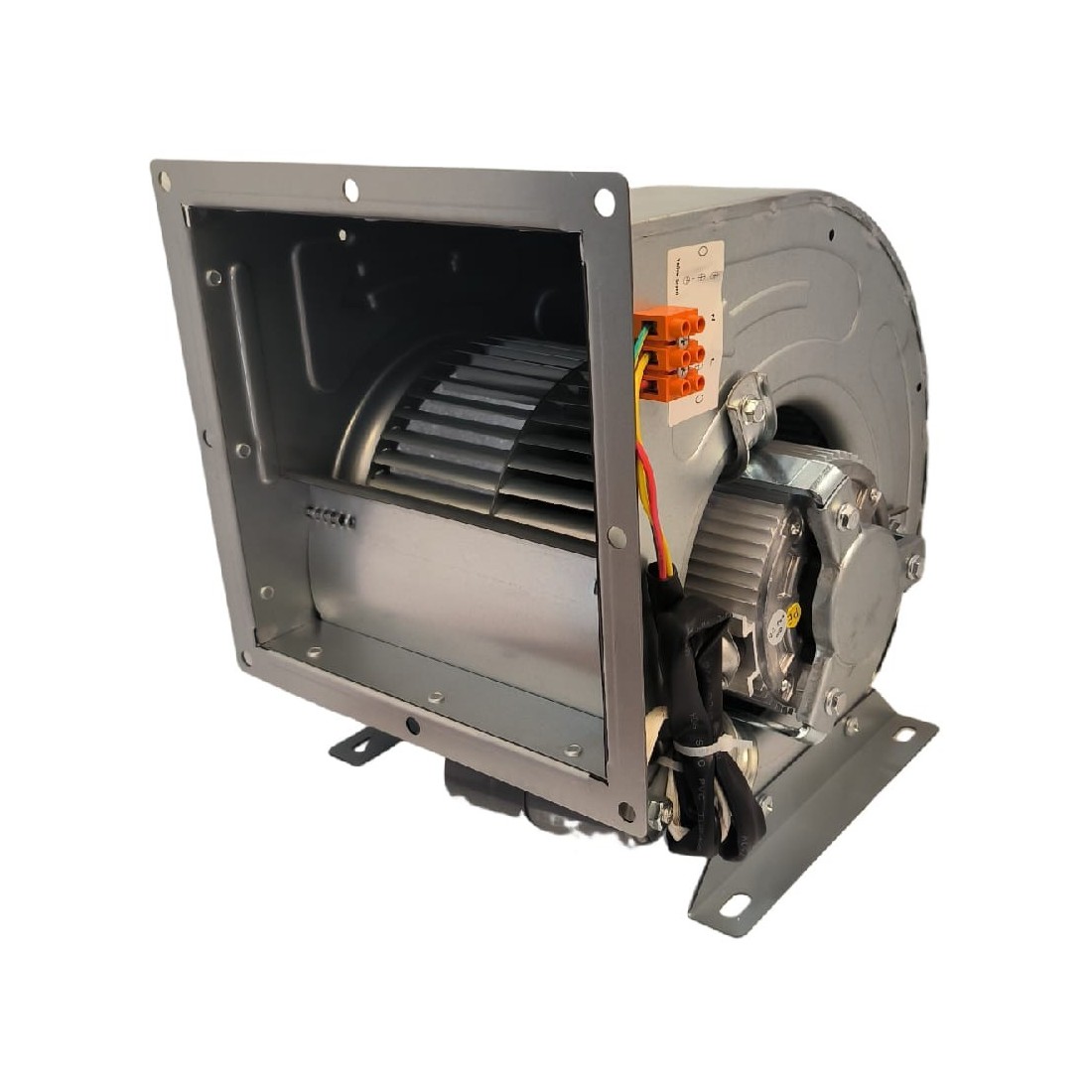

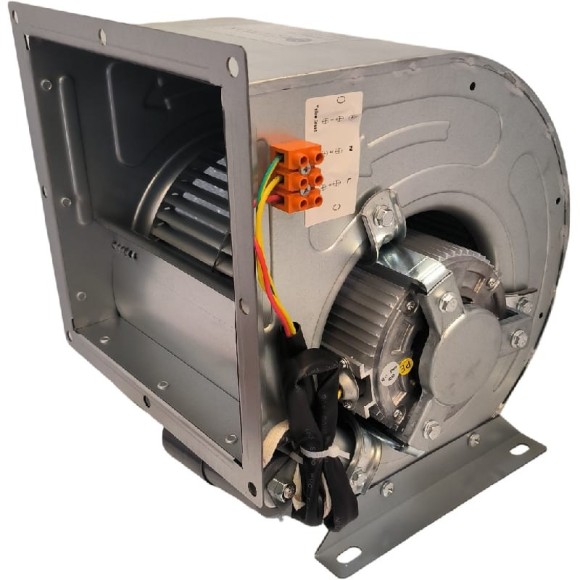

Centrifugal fan LKZ 7-7 -4M 1/5 EFF

Name: Centrifugal fan LKZ 7-7 -4M 1/5 EFF
Brand: Eutron
SKU: 9040
Price: 215 EUR
Availability: InStock

Reference 9040

€215.00

Tax excluded

7/7-4M 1/5M, 1 SPEED, 1320R/M, 230V, 0.15KW, 1500R/H, 59DB

Download PDF

Description

Fan:

Enclosure made of galvanized steel sheet.
Forward-curved turbine blades, made of galvanized steel sheet.

Motor:

High efficiency (HE) motors to comply with ErP 2015.
Closed motors with built-in thermal protector, class F, with ball bearings, IP54 protection.
Single-phase 220-240V AC-50Hz
Maximum air temperature to be transported: -20ºC to +60ºC.
Speed 1250 rpm 1 speed
Decibels 59
Capacitor 8 μF
Power 150W
Air flow 1500 m³ - hour
Connection via terminal block
Net weight 9.90 kg
Gross weight 9.40 kg
Packaging dimensions 355x340x335mm

Finish:

Corrosion-resistant galvanized steel sheet.

Product Details

Power Supply Voltage: 220-240V 50Hz
Power Watts: 150W
Hospitality Furniture: Bells Accessories
Bells Accessories: Ventilador Centrifugo
