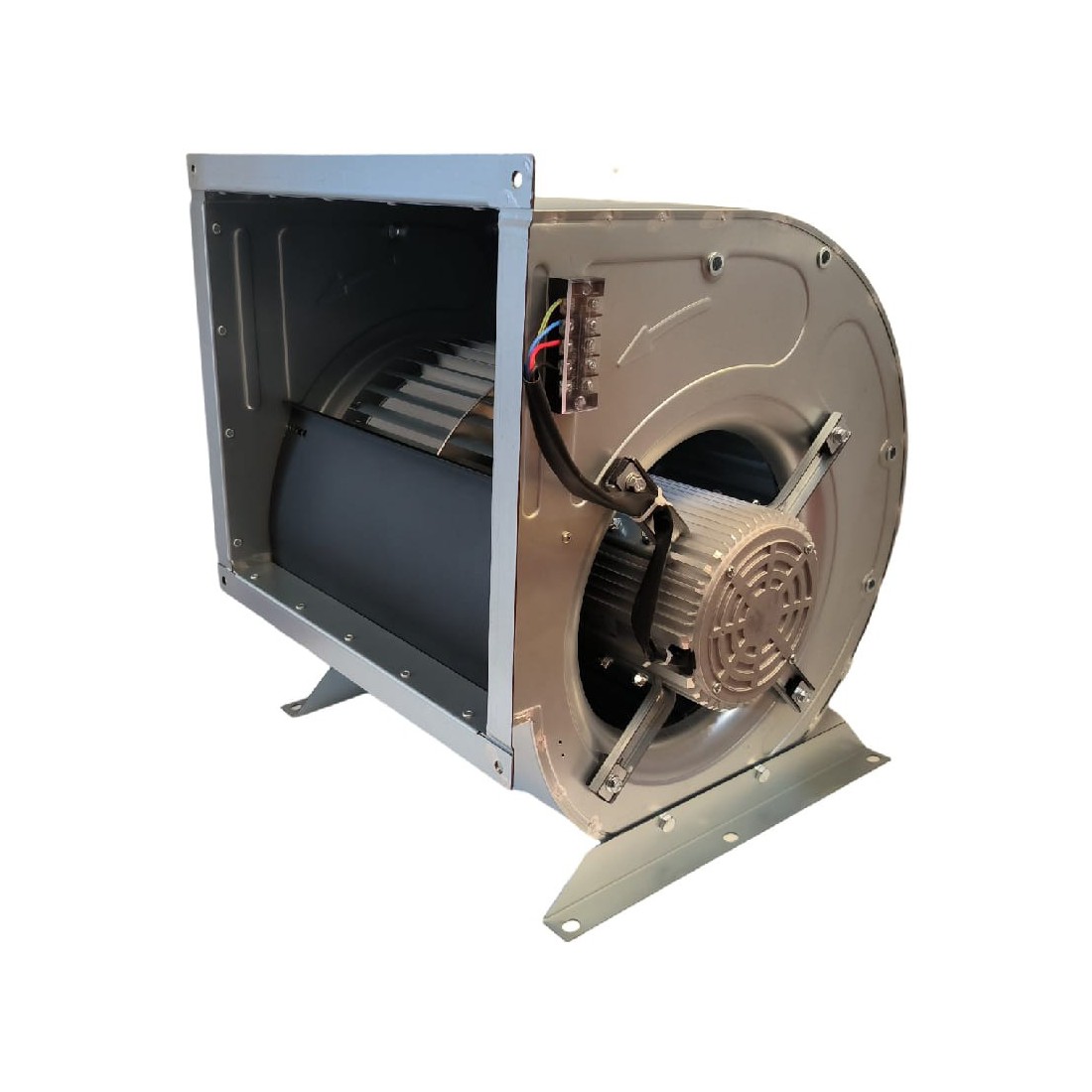

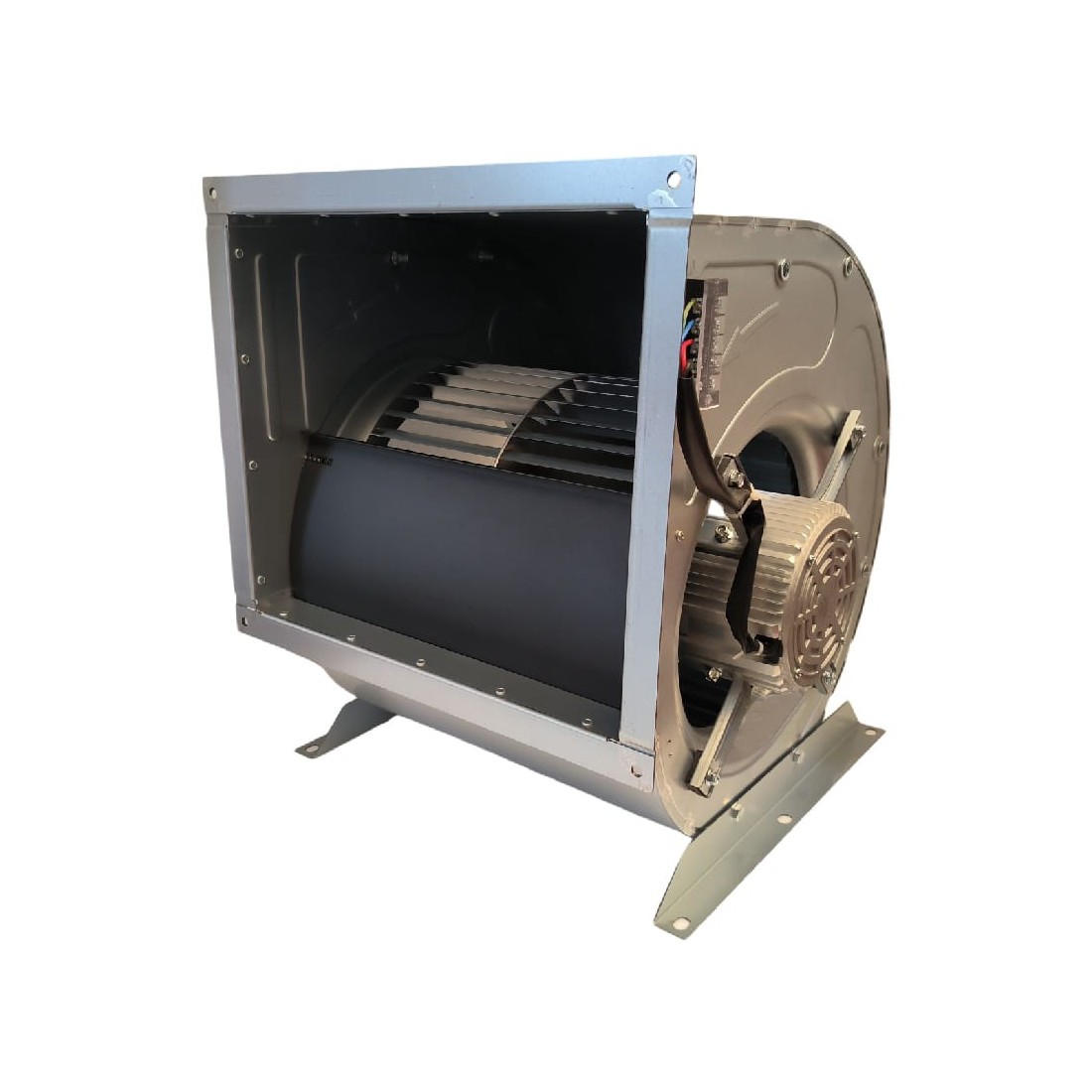

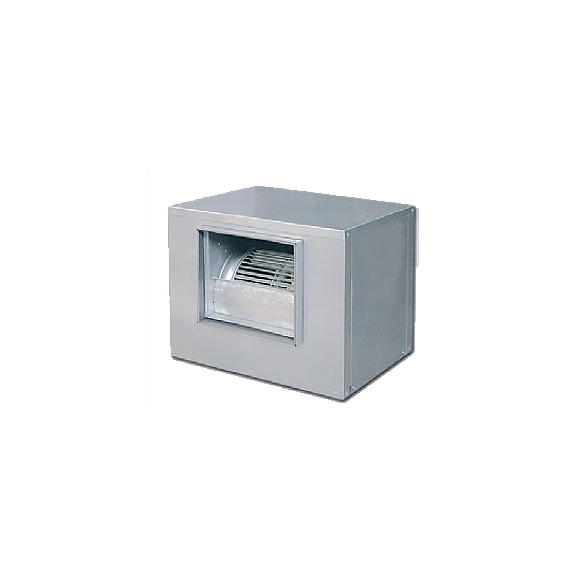

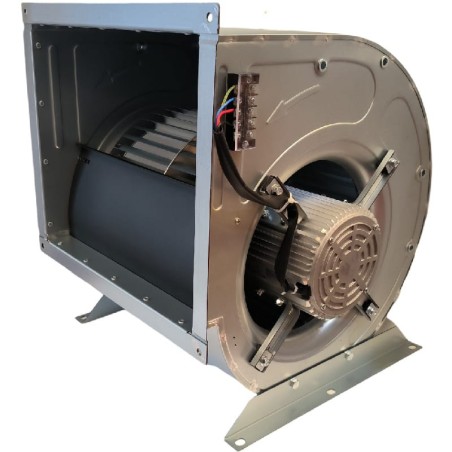

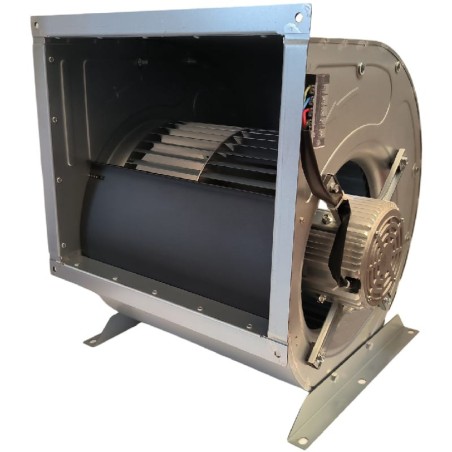

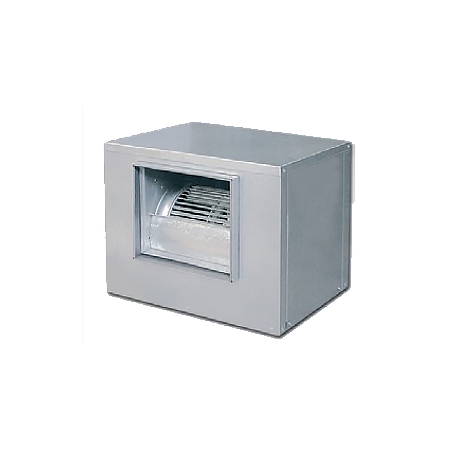

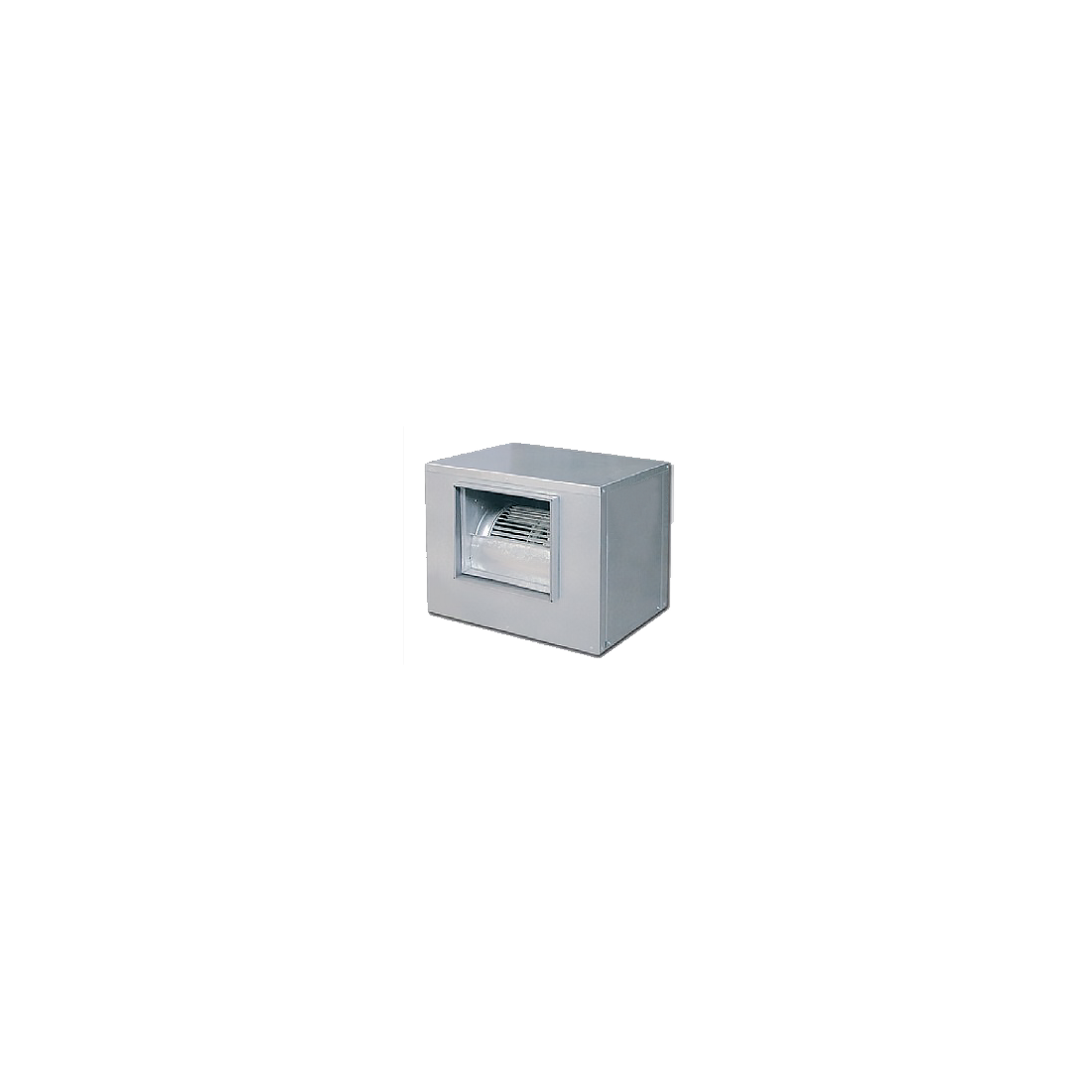

LKZ 12/12-6T 1 1/2M Extraction Box

Material and Design

• Enclosure made of galvanized steel with anti-corrosive treatment.

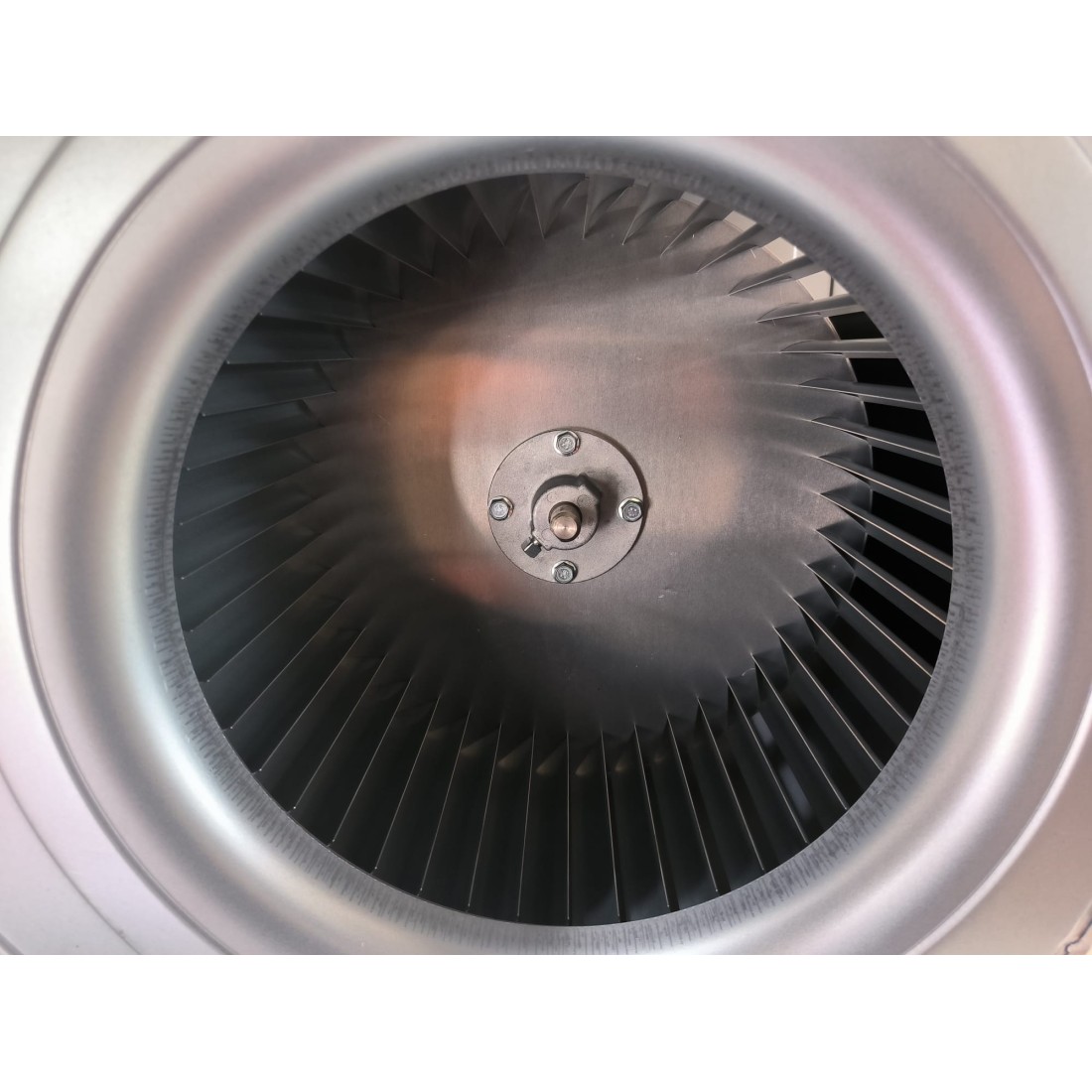

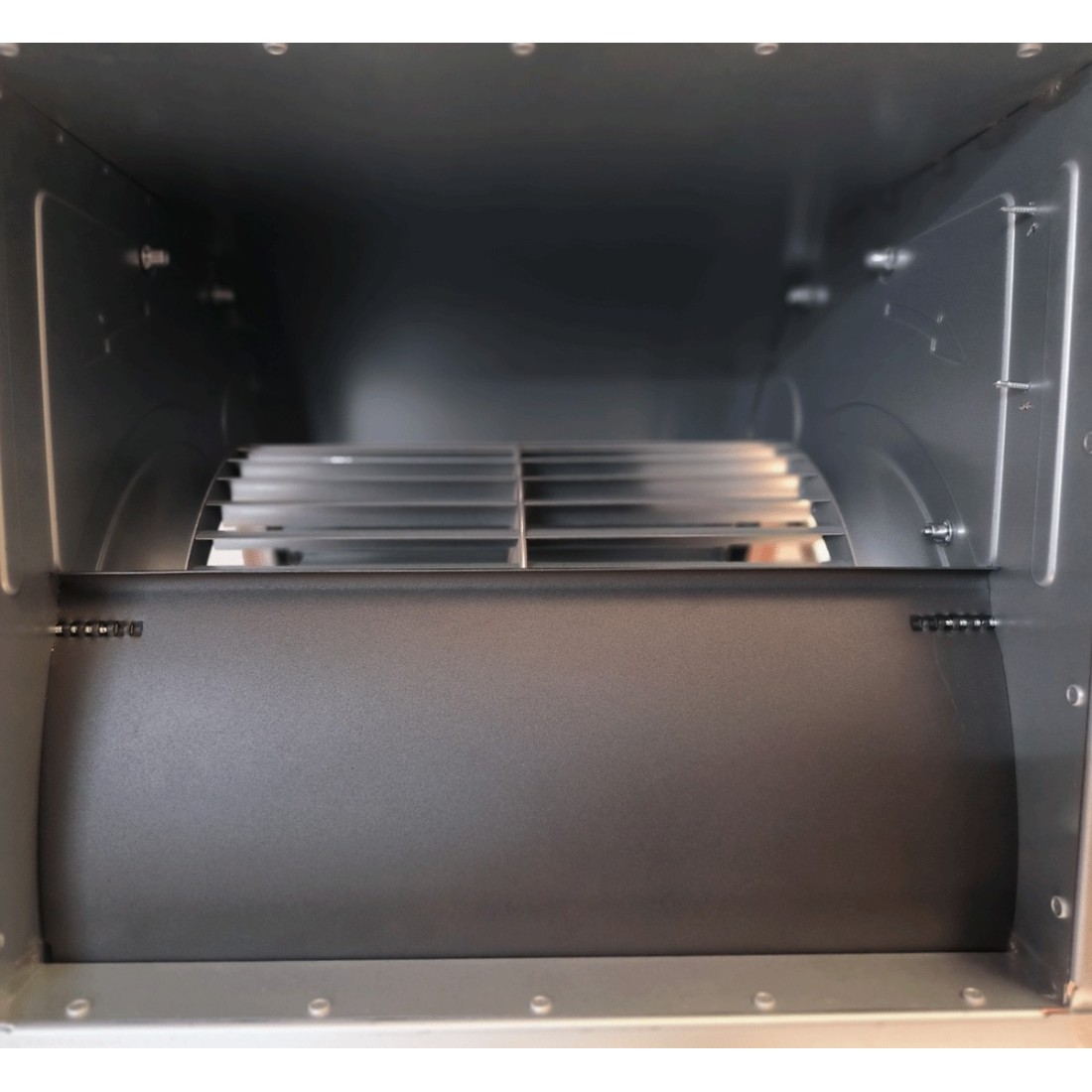

• Turbine with blades curved forward, also made of galvanized sheet.

• Includes blind cover to facilitate installation in extraction systems.

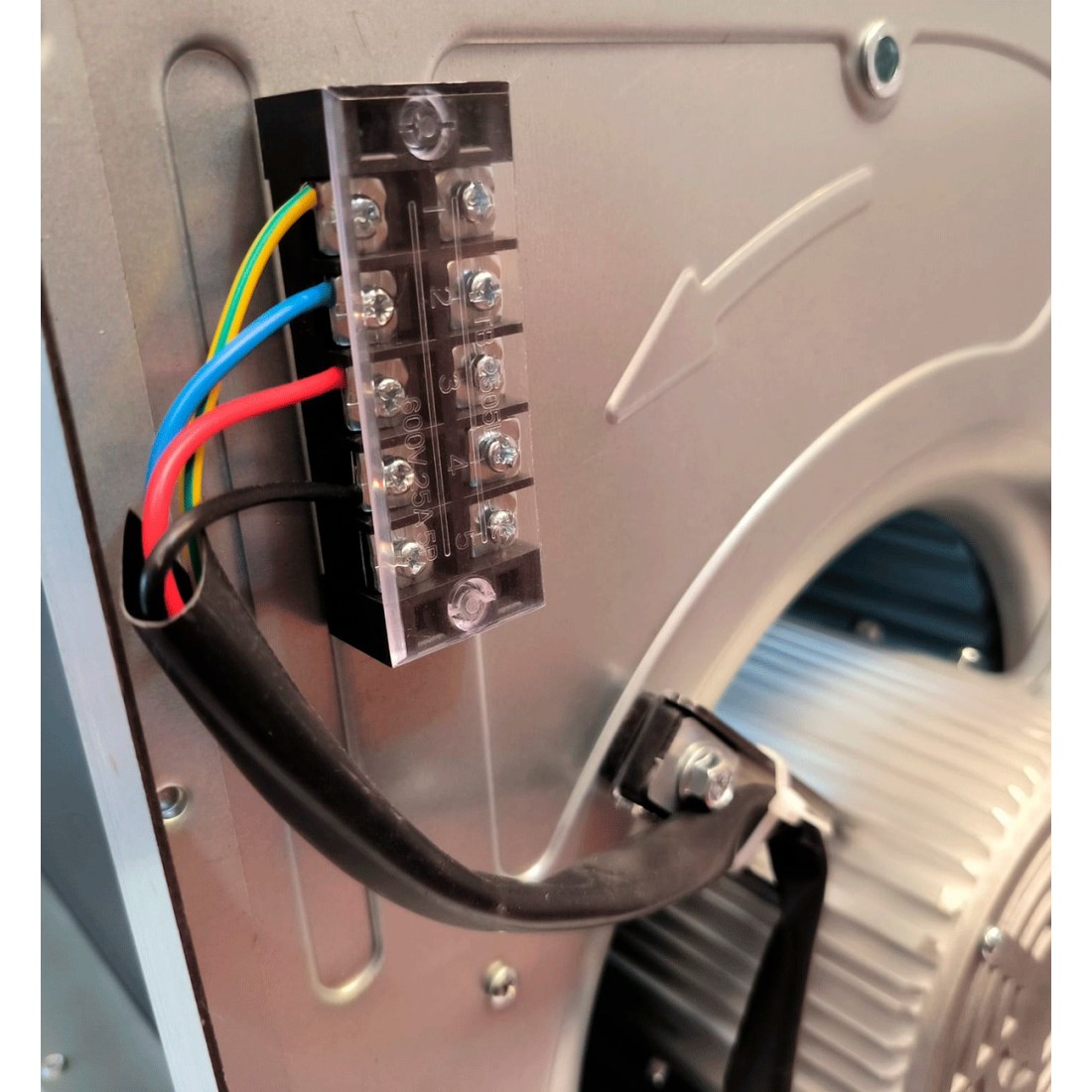

• Electrical connection via splice connector.

• Robust, compact design, prepared for intensive use.

Technical Specifications

• Motor: High efficiency, in accordance with ErP 2015 regulations.

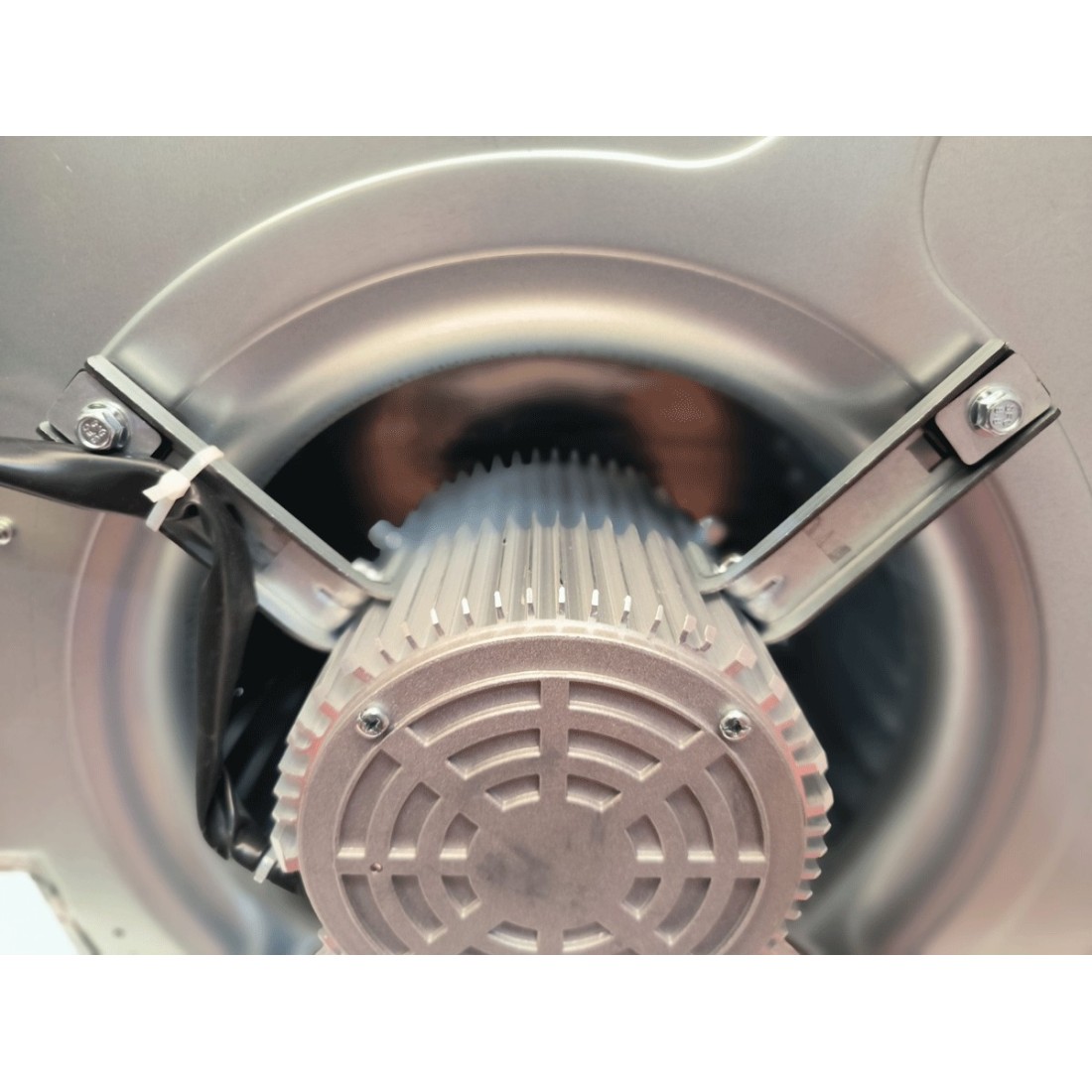

• Motor type: Closed, with built-in thermal protector, class F, with ball bearings.

• Protection: IP54.

• Speed: 900 rpm (1 speed).

• Voltage: Three-phase 380 V AC – 50 Hz.

• Power: 1,100 W.

• Air flow: 7800 m³/h.

• Sound level: 75 dB.

• Air temperature to be transported: -20 ºC to +60 ºC.

Included Equipment

• Extraction box with turbine and pre-assembled motor.

• Blind cover.

• Electrical connection plug.

Additional Features

• High extraction flow for large spaces or with high thermal load.

• Quiet operation relative to its power.

• Durable and resistant materials for demanding environments.

• Compatible with centralized or local ventilation installations.
