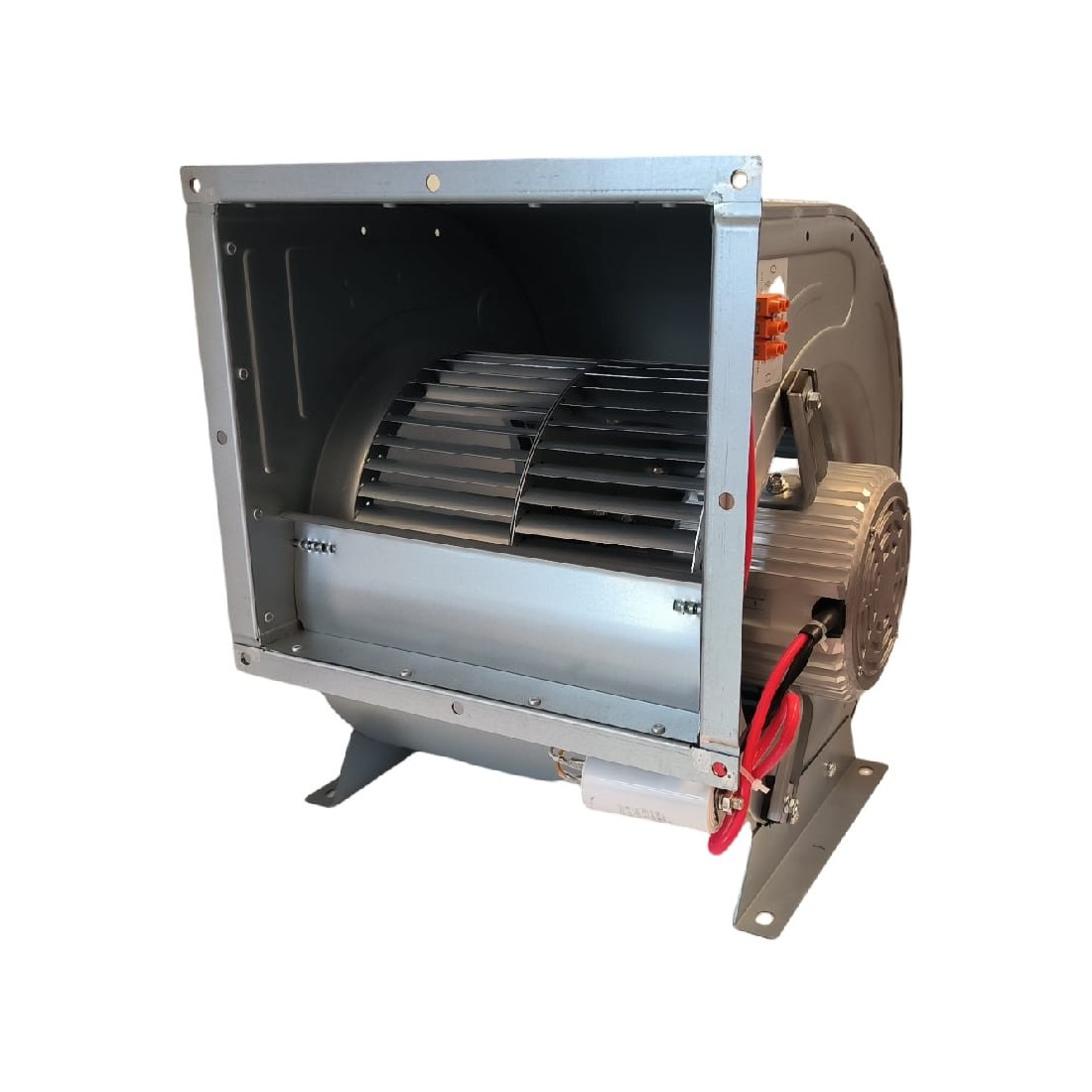

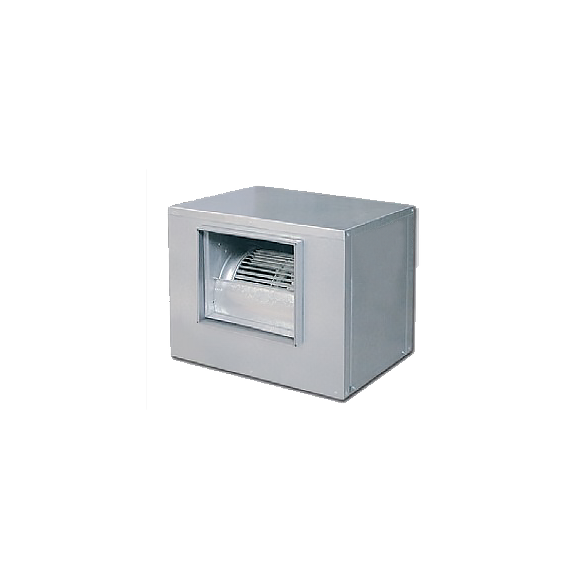

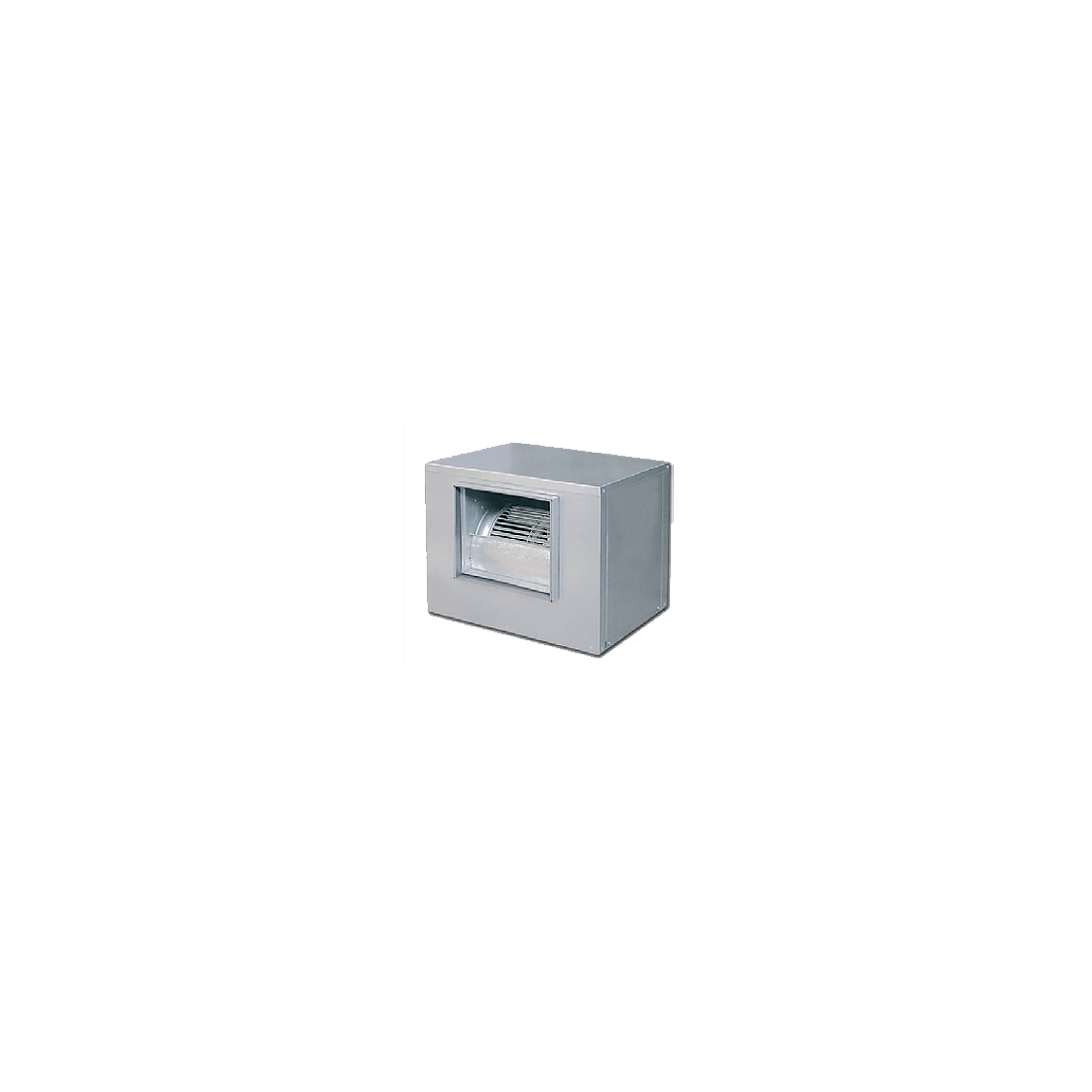

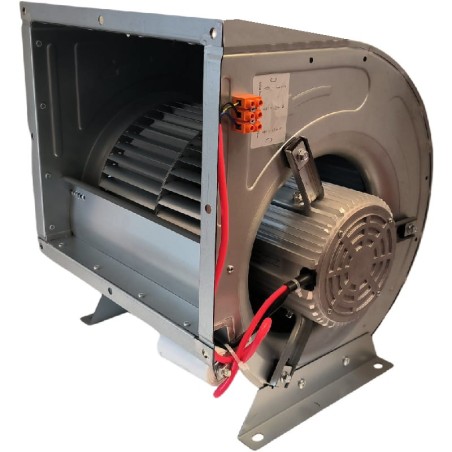

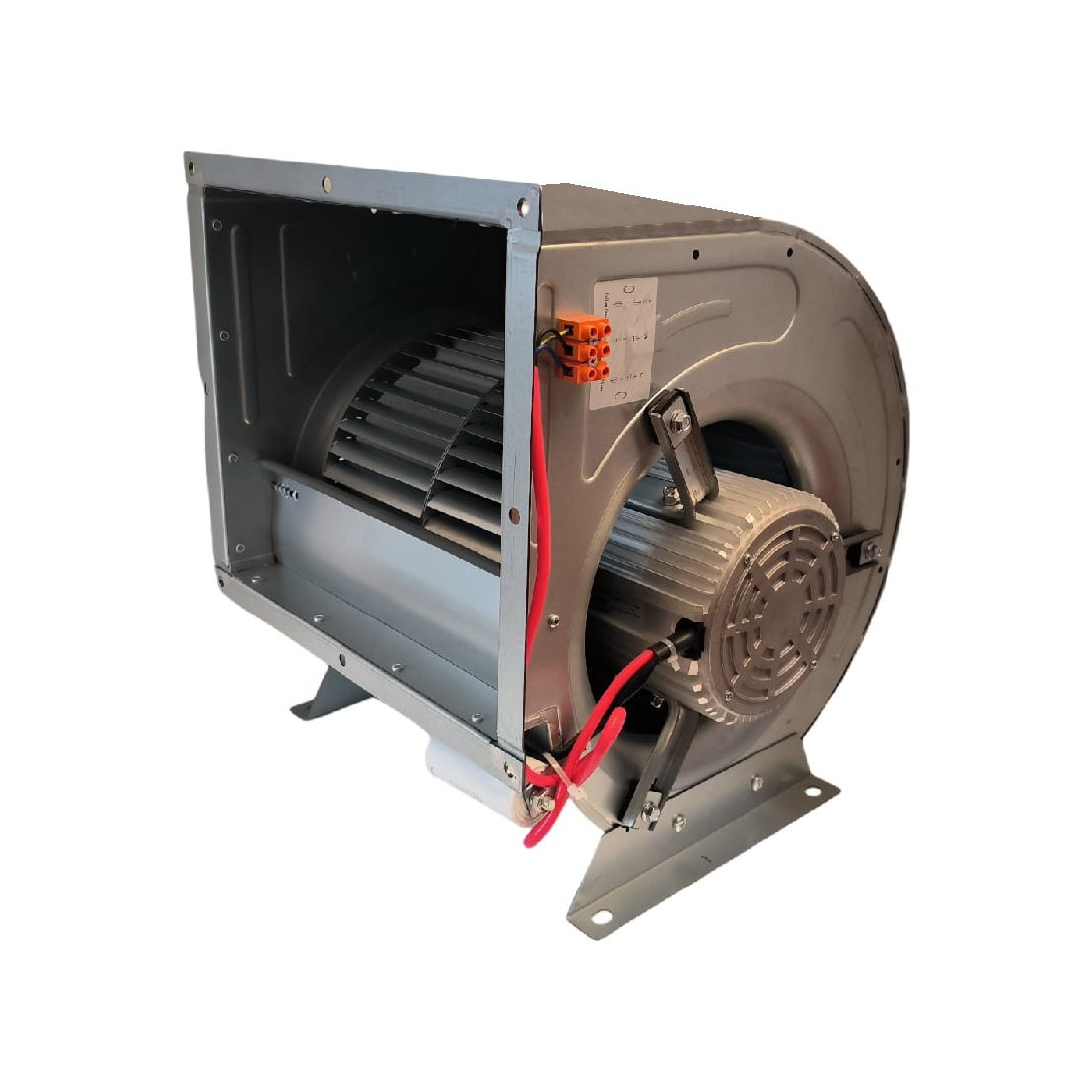

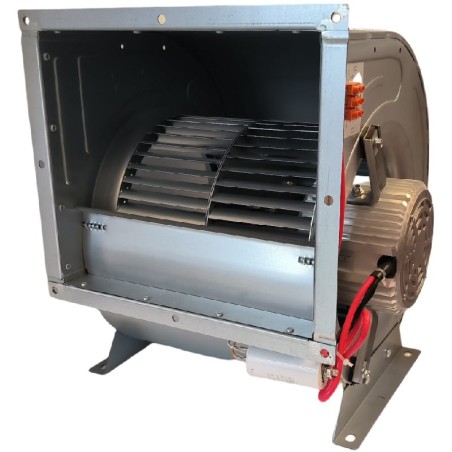

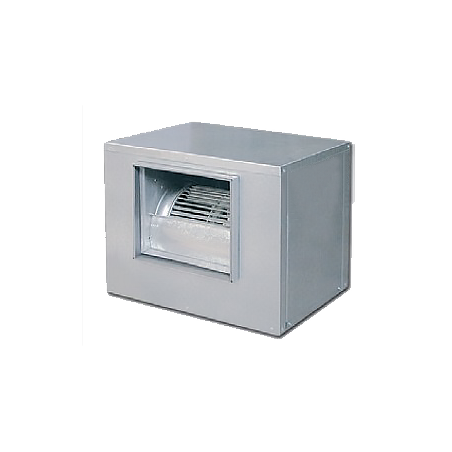

Extraction box LKZ 10/10-6M 3/4M

Material and Design

• Structure made of galvanized steel with anti-corrosive treatment.

• Turbine with blades facing forward made of galvanized steel.

• Includes blind cover.

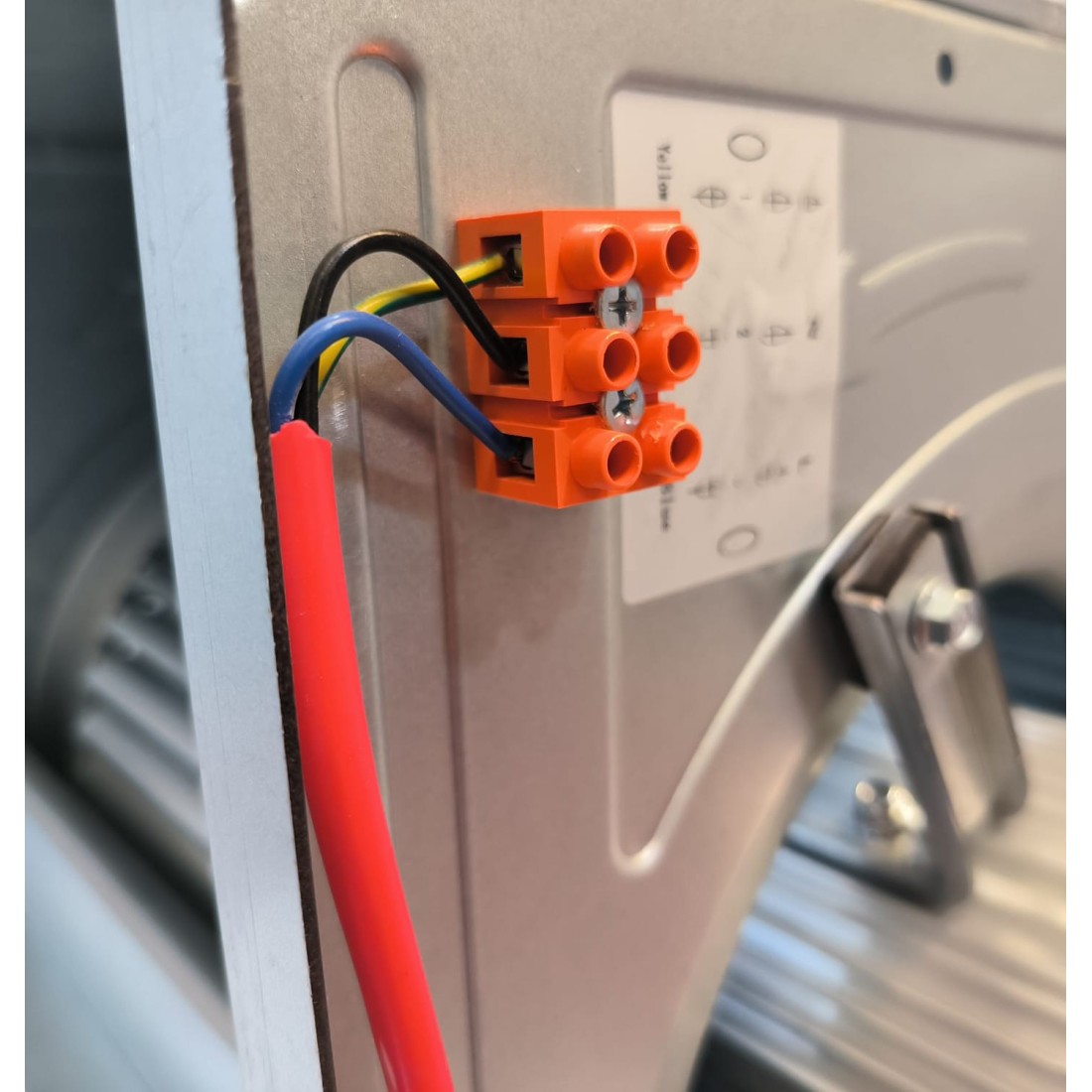

• Electrical connection via junction plug.

• Robust and compact design with resistant materials to corrosion.

Technical Specifications

• Motor: High efficiency (HE), in accordance with ErP 2015 regulations.

• Type of motor: Closed, with built-in thermal protector, class F, with ball bearings.

• Protection: IP54.

• Speed: 900 rpm (1 speed).

• Voltage: Single-phase 220-240 V AC – 50 Hz.

• Power: 550 W.

• Air flow: 3950 m³/h.

• Sound level: 70 dB.

• Air temperature to be transported: -20 ºC to +60 ºC.

• Capacitor: 25 μF.

Included Equipment

• Extraction box with pre-assembled turbine.

• Blind cover.

• Electrical connection plug.

Additional Features

• Quiet and efficient operation.

• Ideal for centralized ventilation systems or localized extraction areas.

• Durable components designed for industrial environments.
