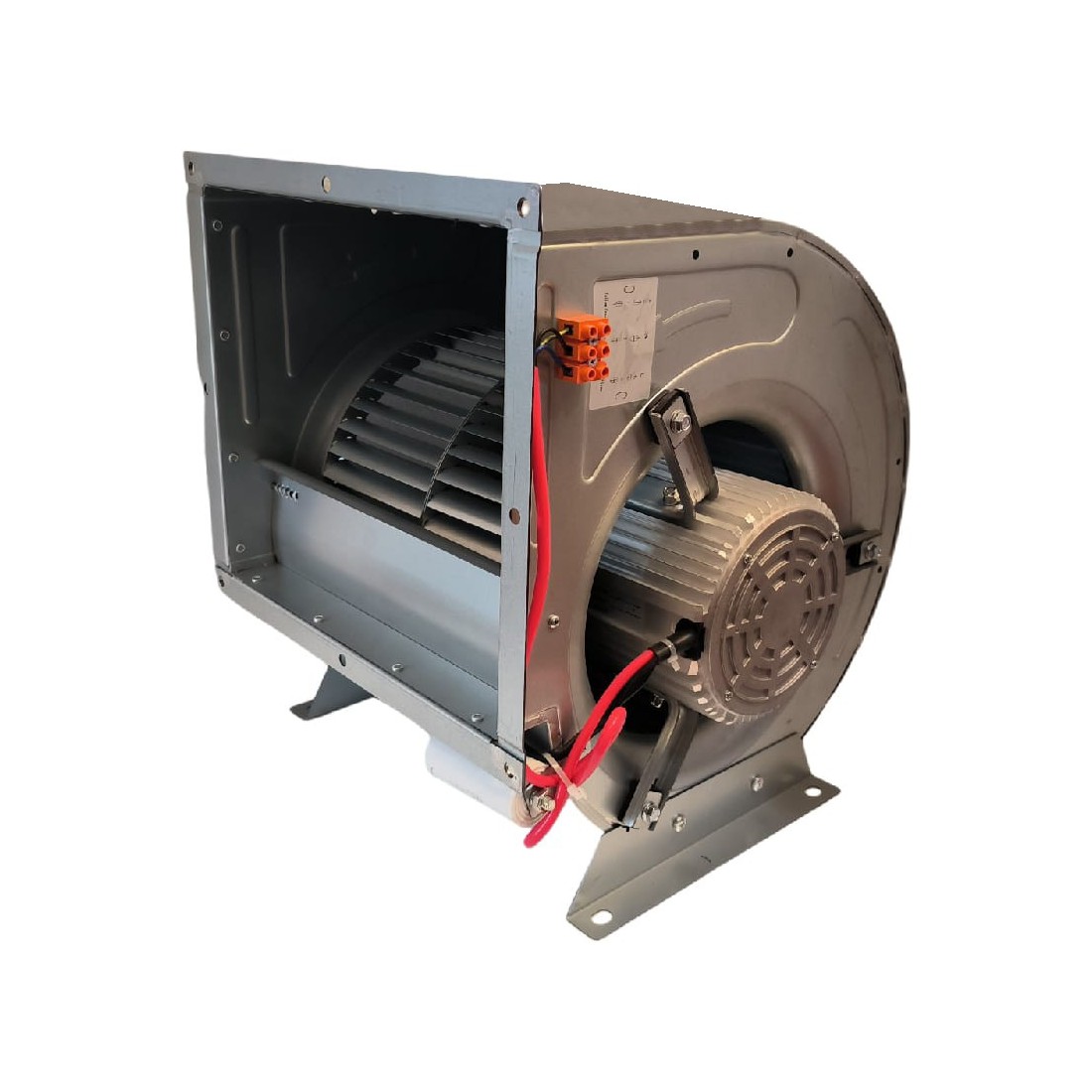

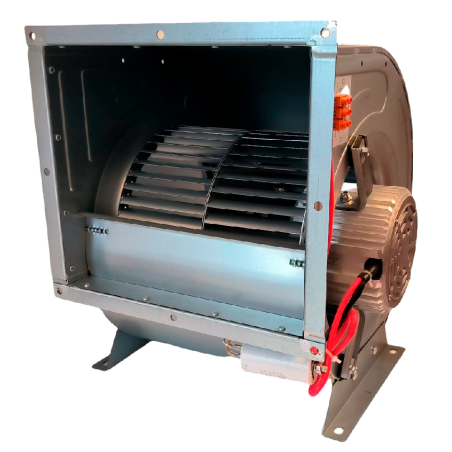

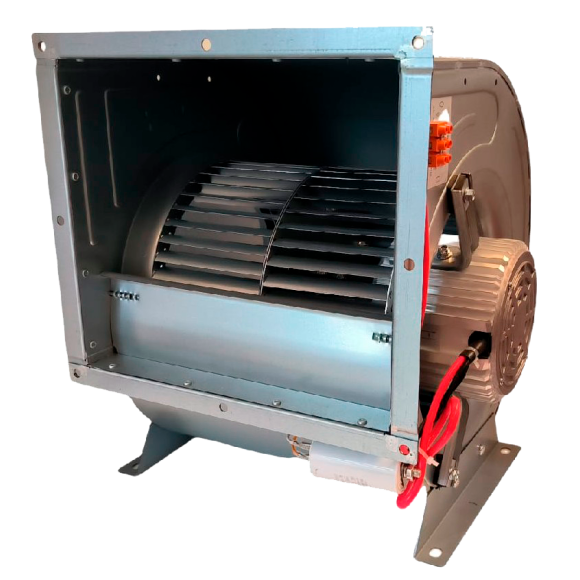

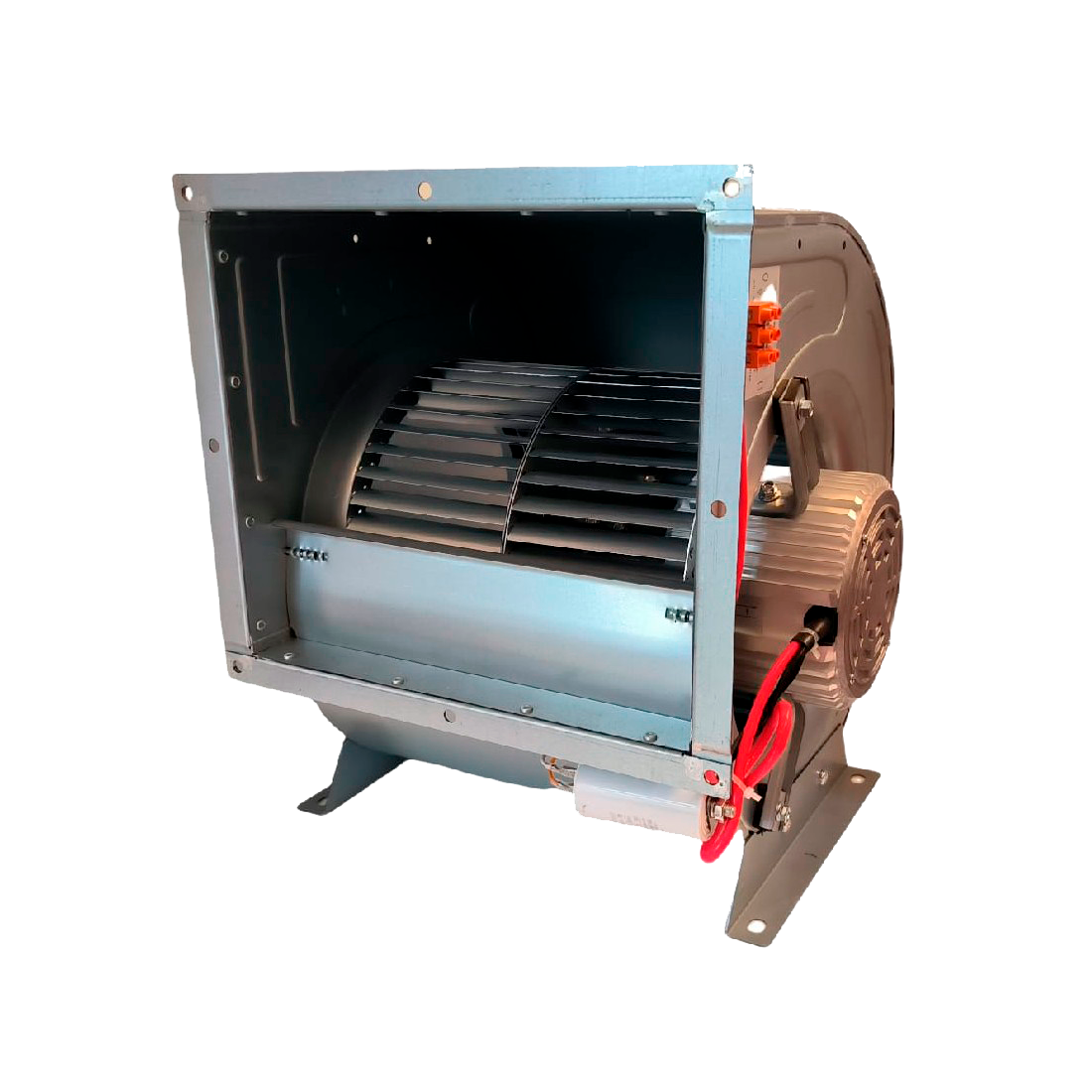

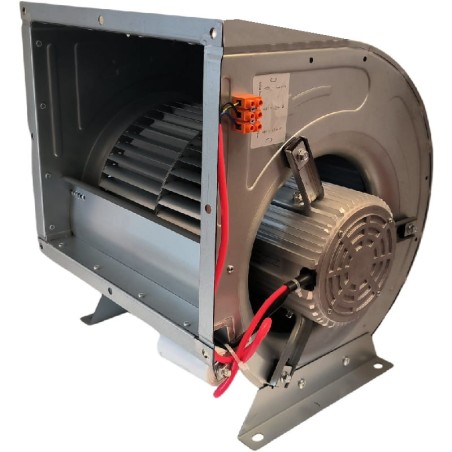

Centrifugal fan LKZ 10/10-4M 1/2 EFF

Name: Centrifugal fan LKZ 10/10-4M 1/2 EFF
Brand: Eutron
SKU: 9045
Price: 295 EUR
Availability: OutOfStock

Reference 9045

Fora d'estoc

€295.00

Tax excluded

LKZ10-10 10/10-6M 3/4M, 1 SPEED, 850R/M, 230V, 0.45KW, 3950R/H, 70DB

Download PDF

Description

Fan:

Enclosure made of galvanized steel sheet.
Turbine with forward-curved blades, made of galvanized steel sheet.

Motor:

High efficiency (HE) motors to comply with ErP 2015.
Closed motors with built-in thermal protection, class F, with ball bearings, IP54 protection.
Single-phase 220-240V AC-50Hz
Maximum air temperature to be transported: -20ºC to +60ºC.
Speed 1250 rpm 1 speed
Decibels 65
Capacitor 20 μF
Power 370W
Air flow 2800 m³ - hour

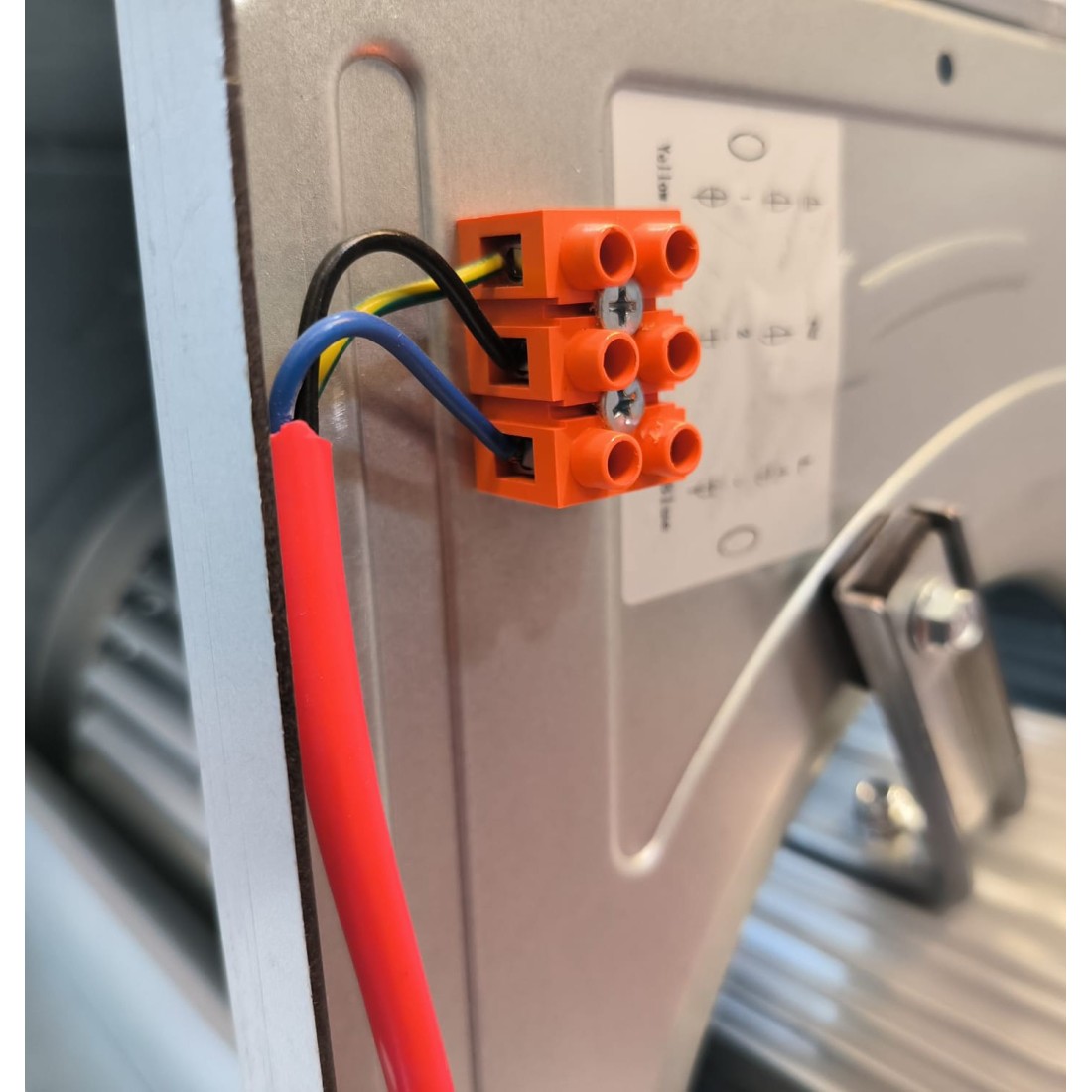

Connection via terminal block
Net weight 16.50 kg
Gross weight 15.60 kg
Packaging dimensions 475x430x450mm

Finish:

Corrosion-resistant galvanized steel sheet.

Product Details

Power Supply Voltage: 220-240V 50Hz
Power Watts: 375W
Hospitality Furniture: Bells Accessories
Bells Accessories: Ventilador Centrifugo
