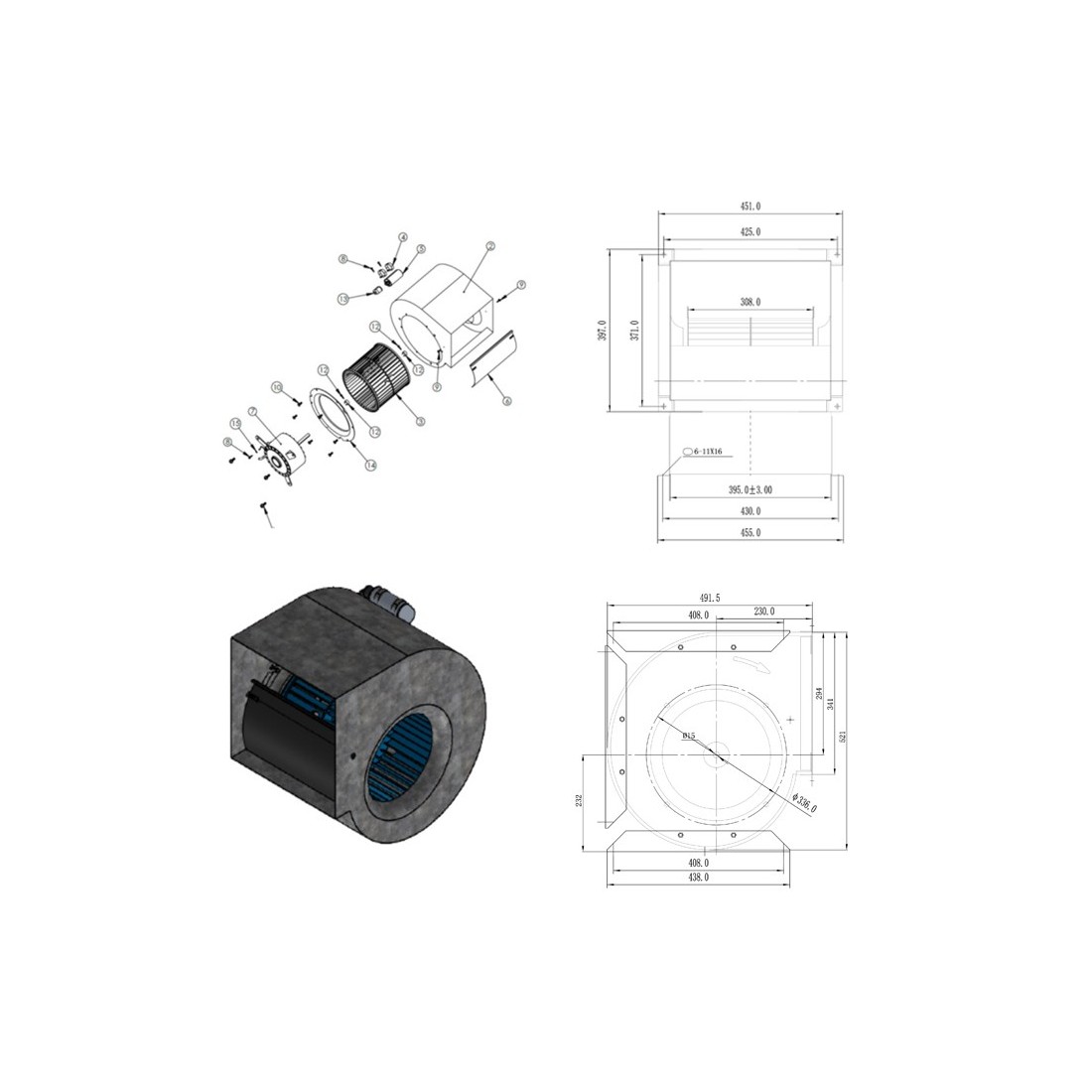

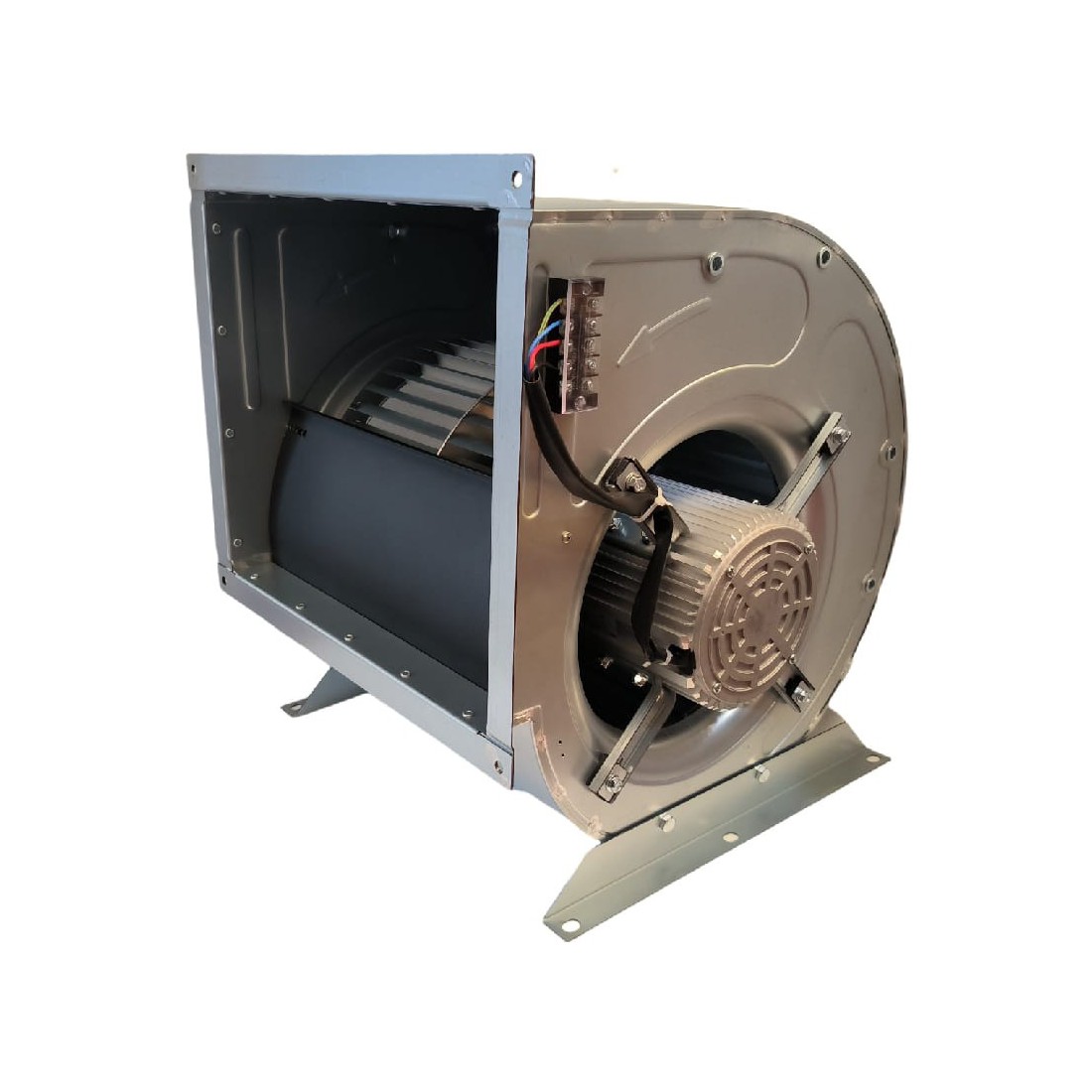

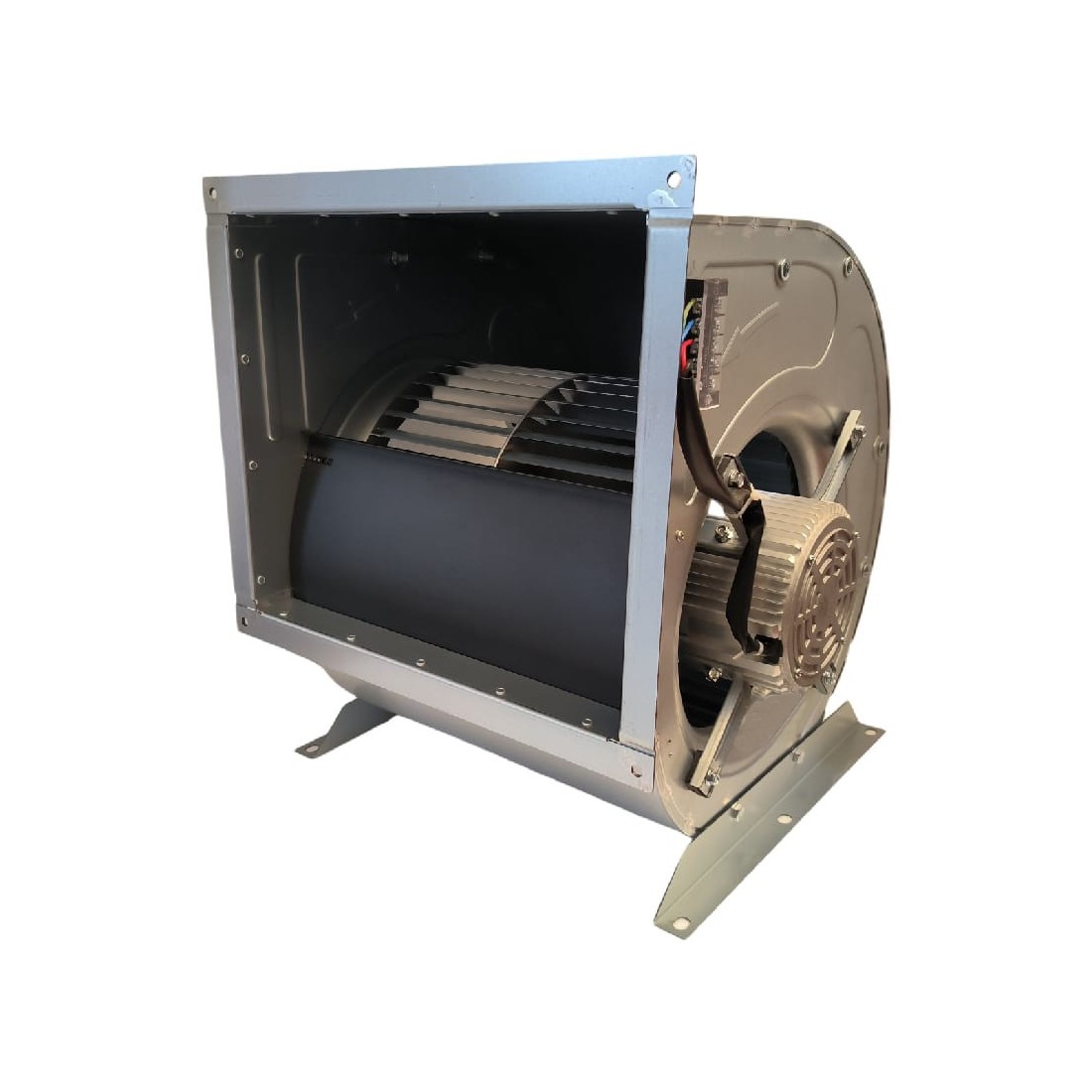

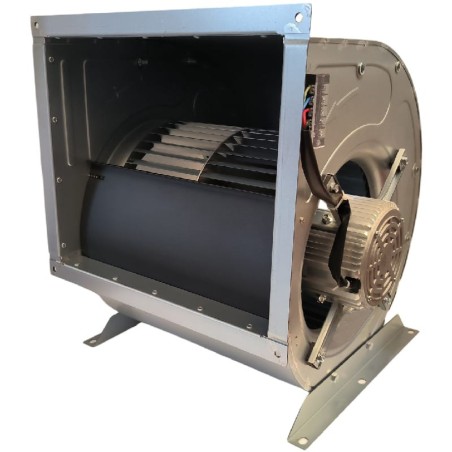

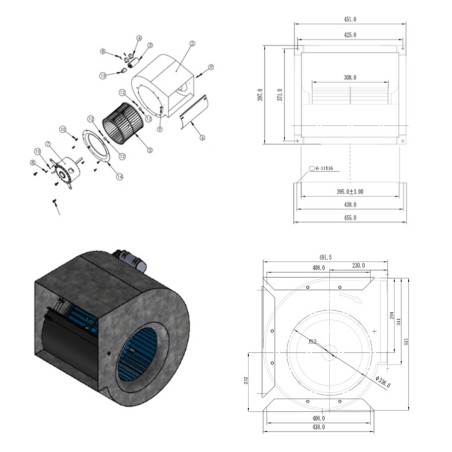

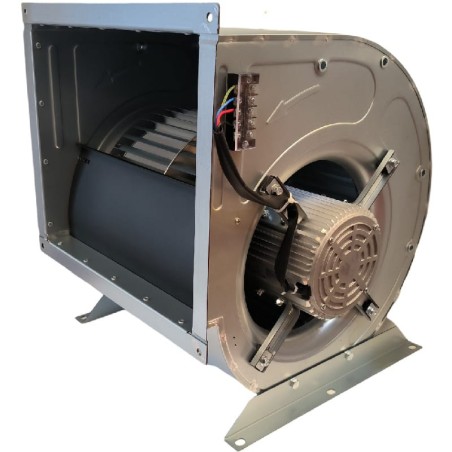

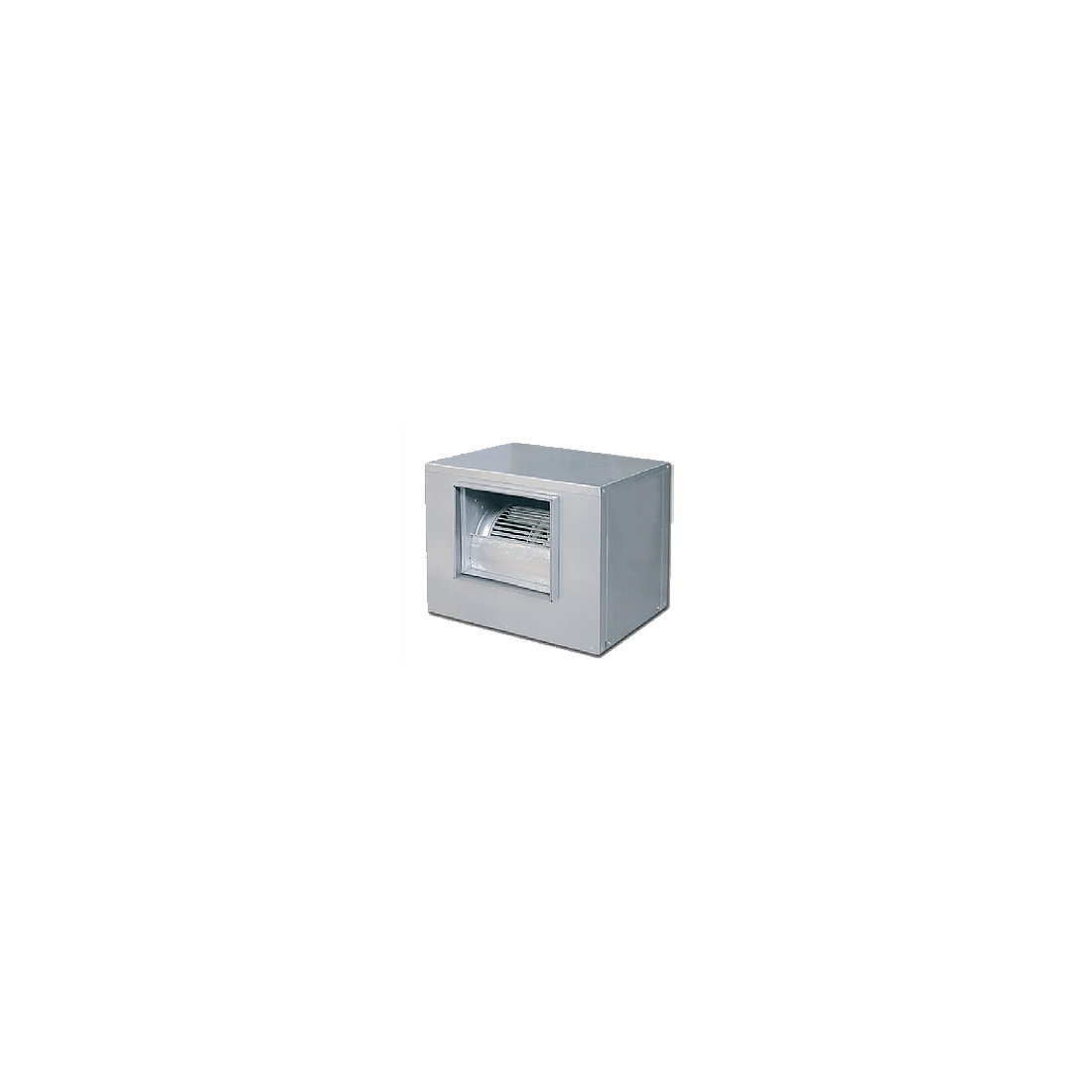

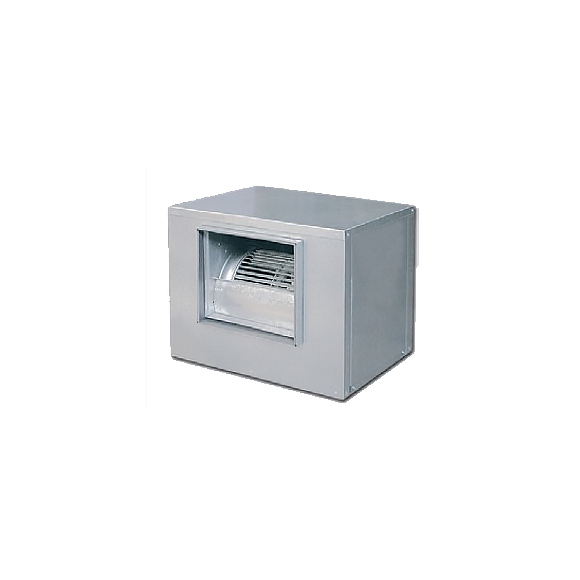

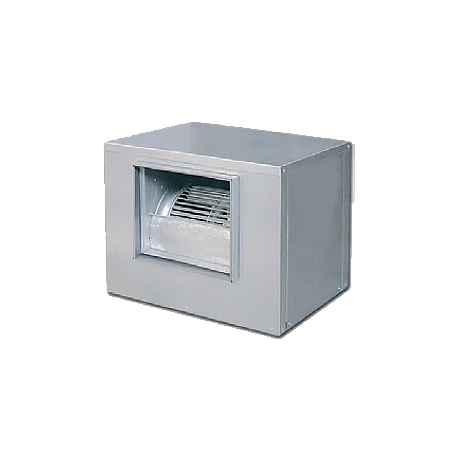

Extraction Box LKZ 12/12-6M 1 1/2M

Material and Design

• Enclosure made of galvanized steel sheet with anticorrosive treatment.

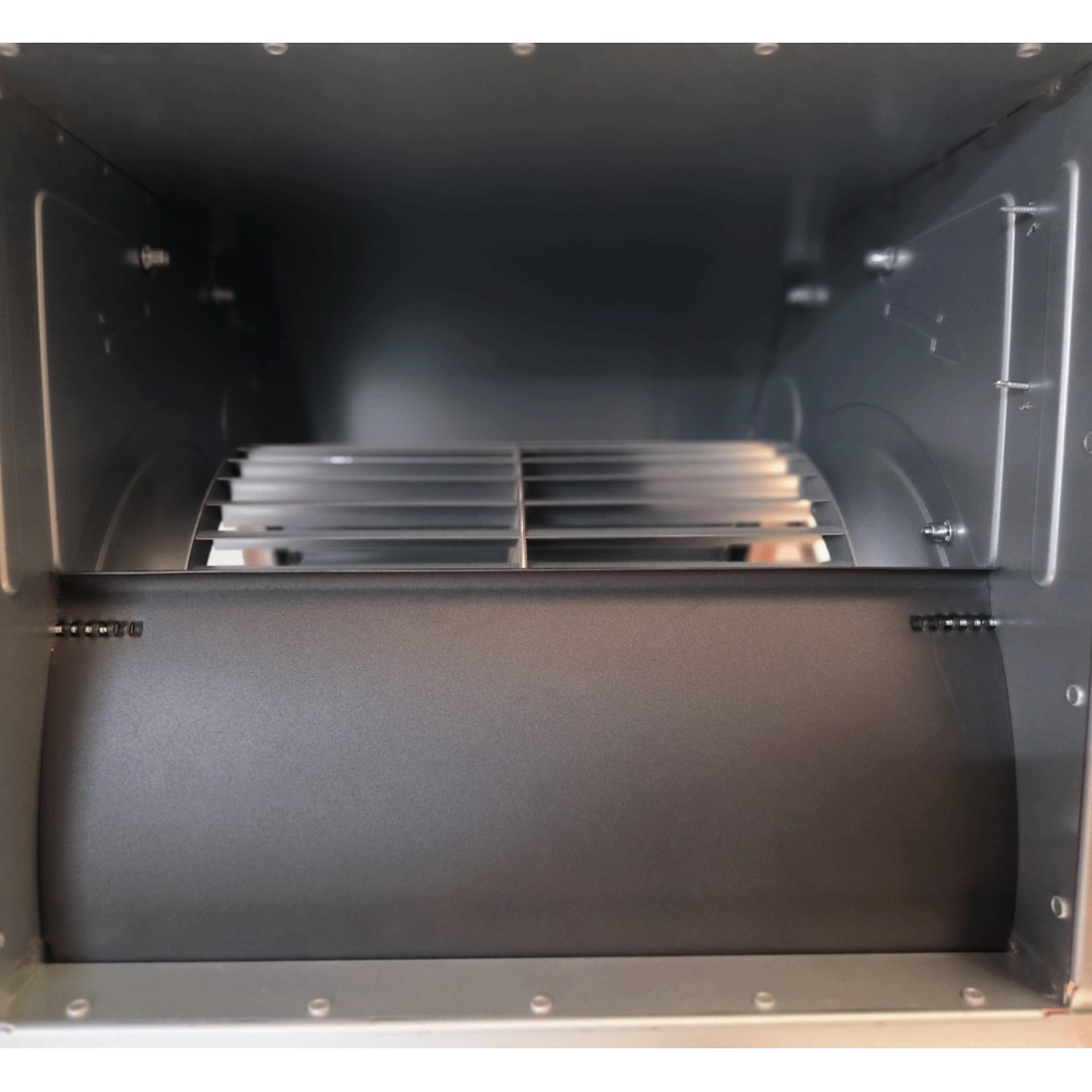

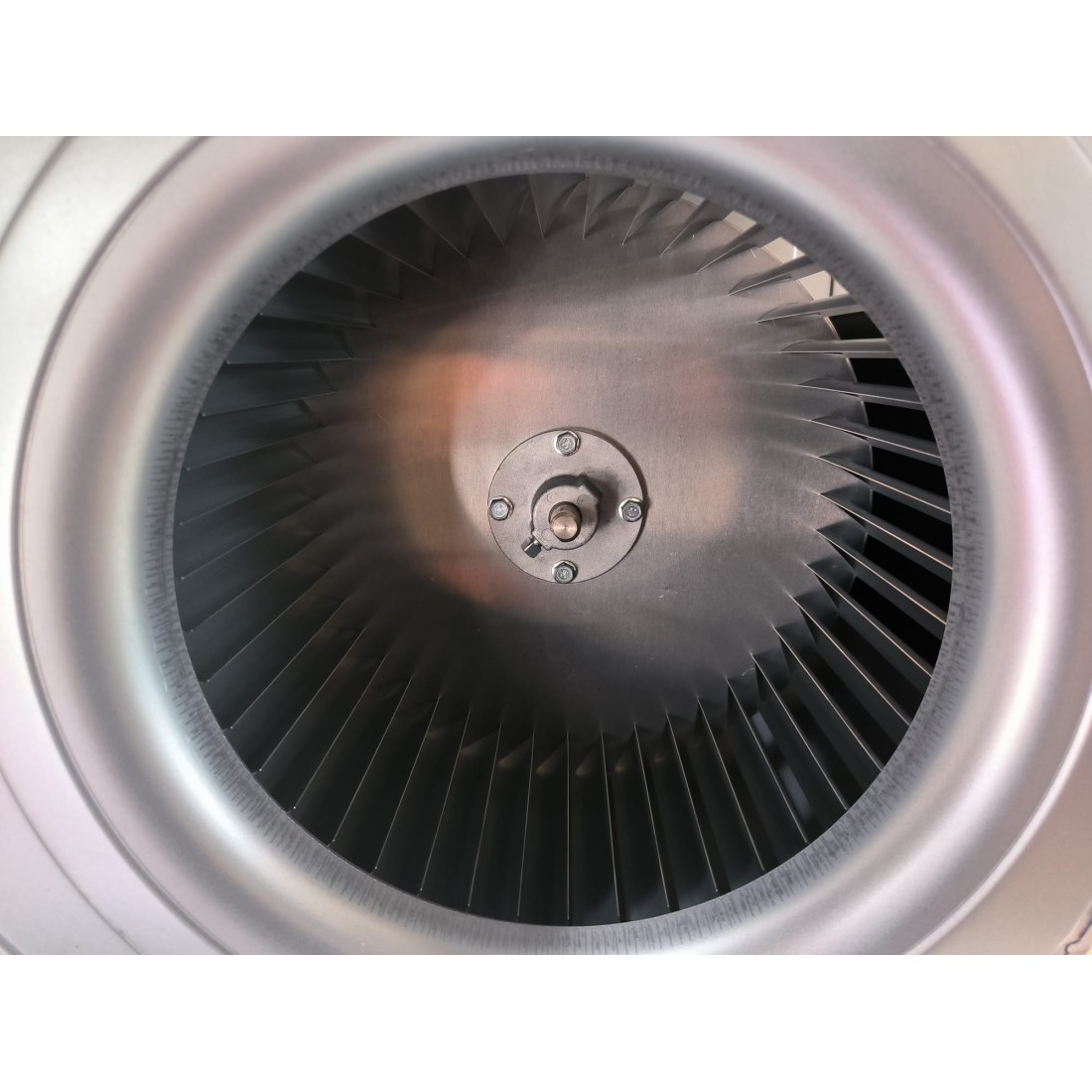

• Turbine with forward-curved blades, also in galvanized sheet.

• Includes blind cover to facilitate installation in extraction systems.

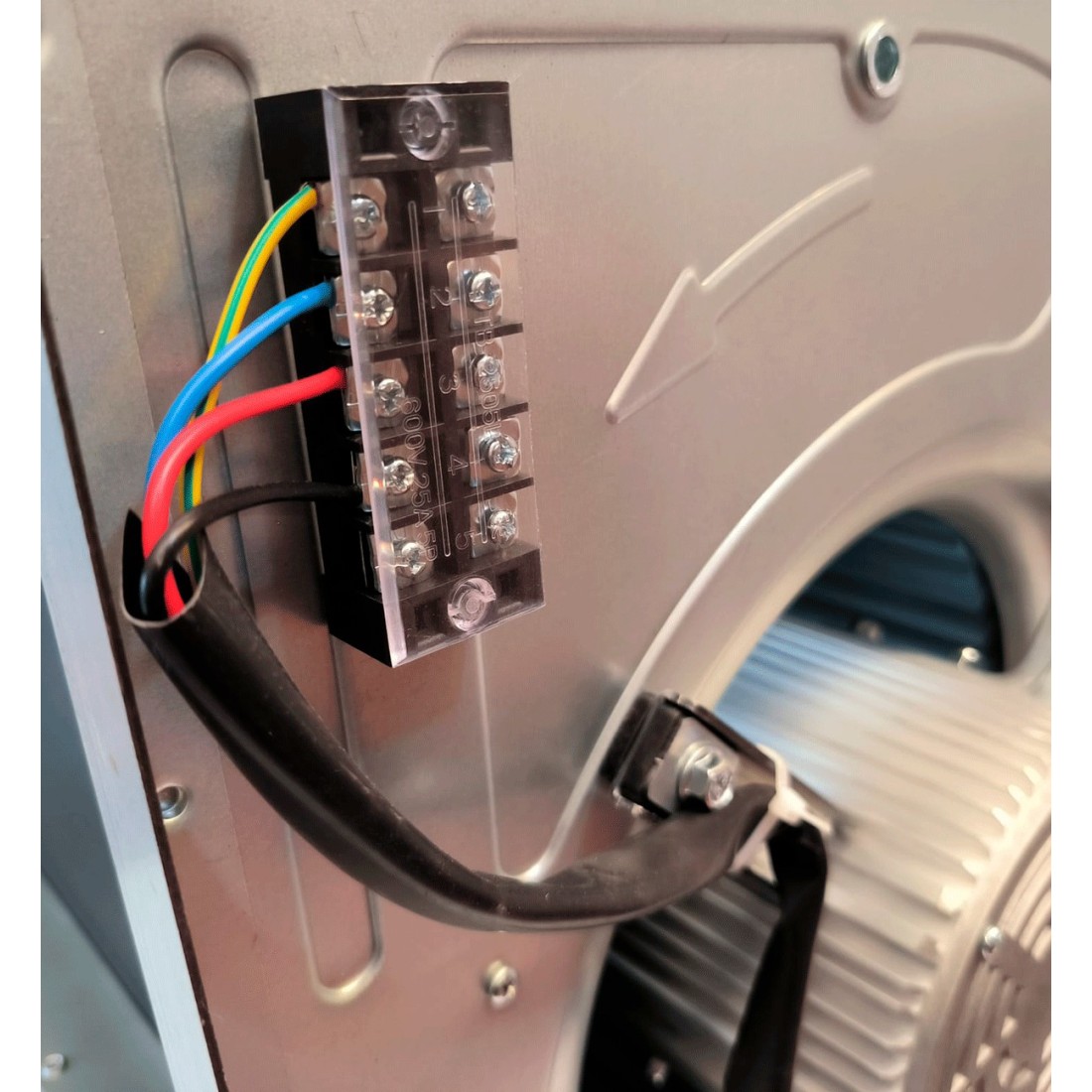

• Electrical connection via splice connector.

• Resilient, compact design prepared for intensive use.

Technical Specifications

• Motor: High efficiency, compliant with ErP 2015 regulation.

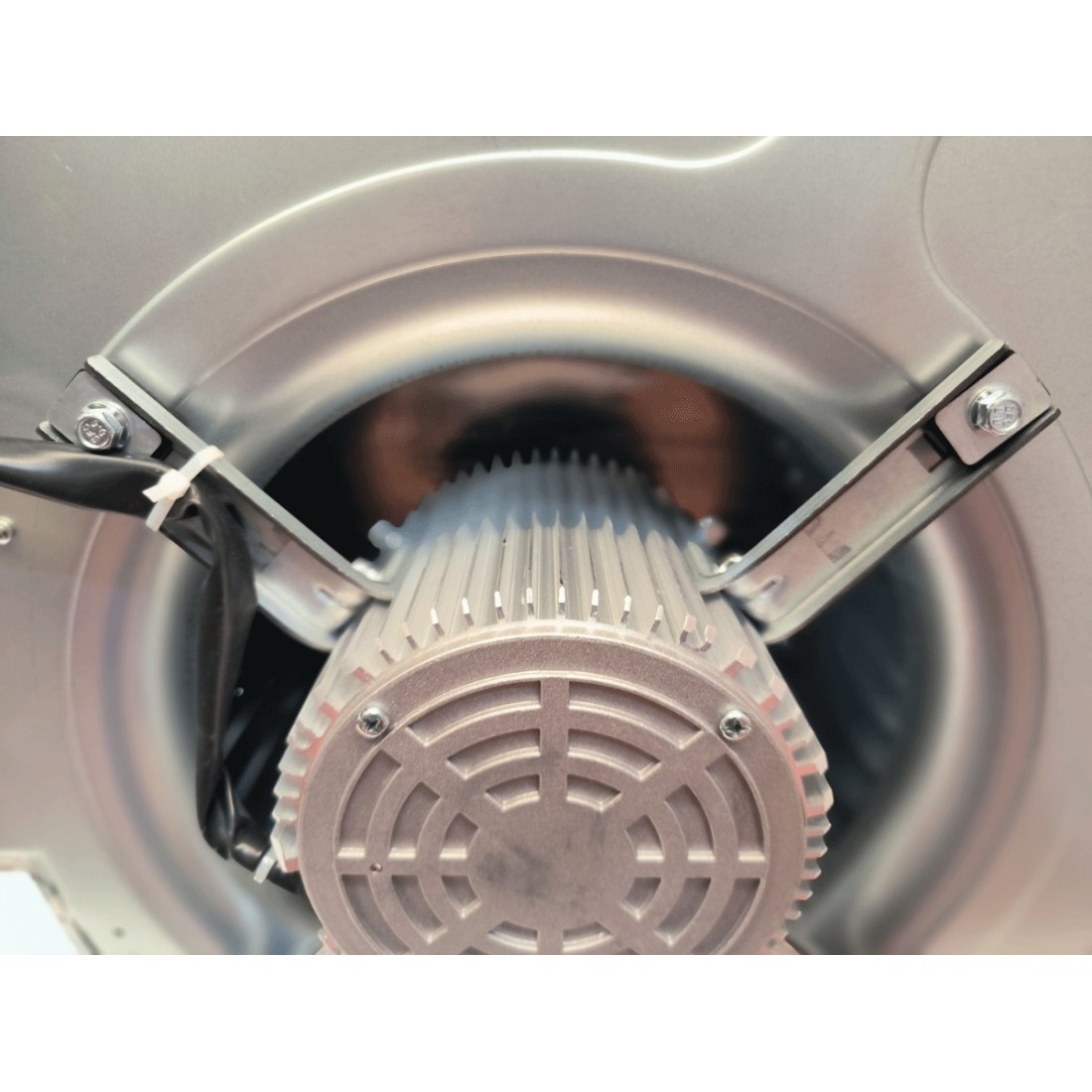

• Motor Type: Closed, with built-in thermal protector, class F, with ball bearings.

• Protection: IP54.

• Speed: 900 rpm (1 speed).

• Voltage: Single-phase 220V AC – 50 Hz.

• Power: 1,100 W.

• Air flow: 7800 m³/h.

• Sound level: 75 dB.

• Air temperature to be transported: -20 ºC to +60 ºC.

Included Equipment

• Extraction box with pre-mounted turbine and motor.

• Blind cover.

• Electrical connection connector.

Additional Features

• High extraction flow for large spaces or with high thermal load.

• Silent operation in relation to its power.

• Durable and resilient materials for demanding environments.

• Compatible with centralized or local ventilation installations.
