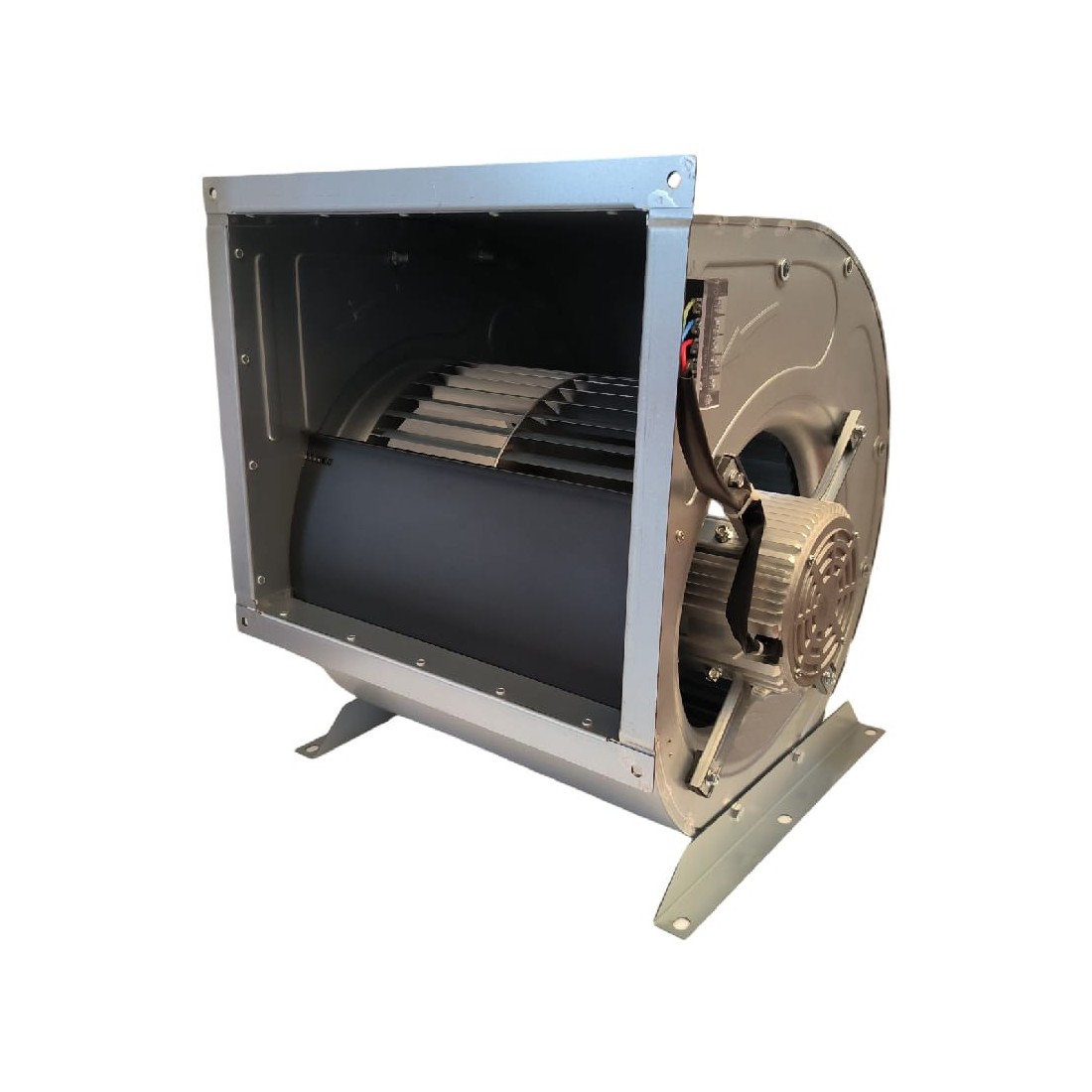

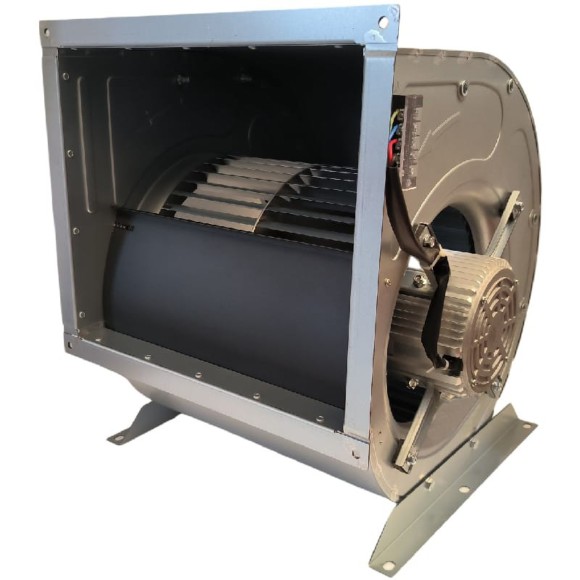

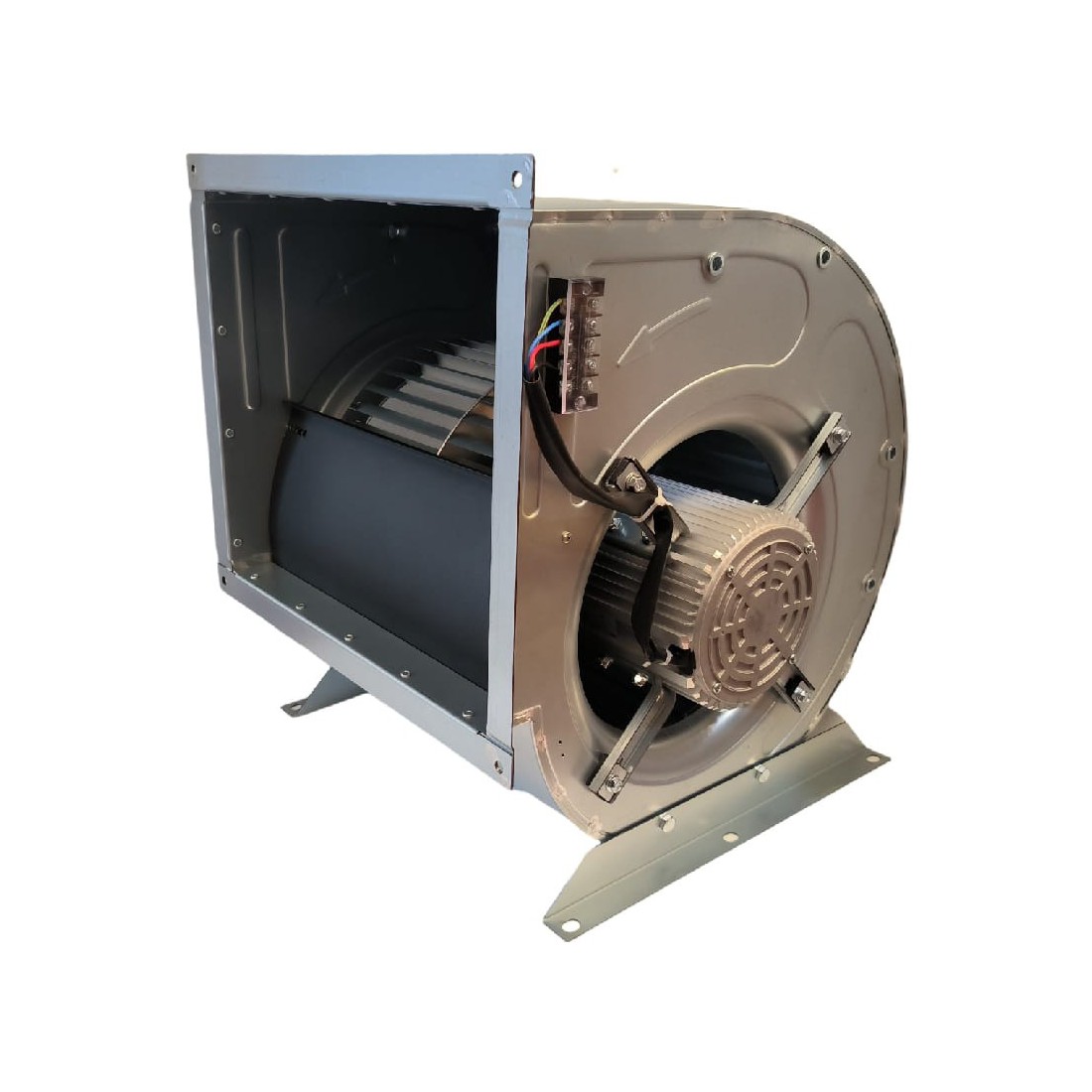

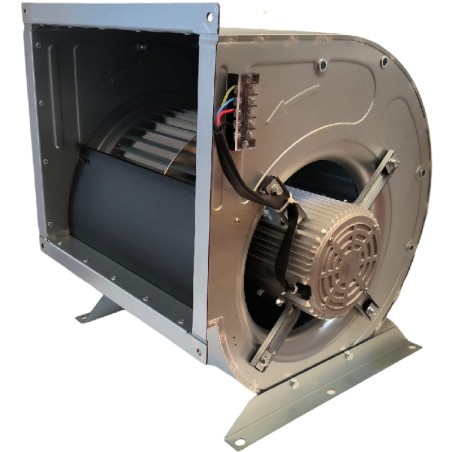

Centrifugal fan LKZ 12/12-6M 1 1/2M EFF

Name: Centrifugal fan LKZ 12/12-6M 1 1/2M EFF
Brand: Eutron
SKU: 9050
Price: 485 EUR
Availability: InStock

Reference 9050

€485.00

Tax excluded

LKZ12-12 12/12-6T 1 1/2M,1 SPEED, 850R/M,220V,1.1KW,7800R/H,75DB

Download PDF

Description

Fan:

Enclosure made of galvanized steel sheet.

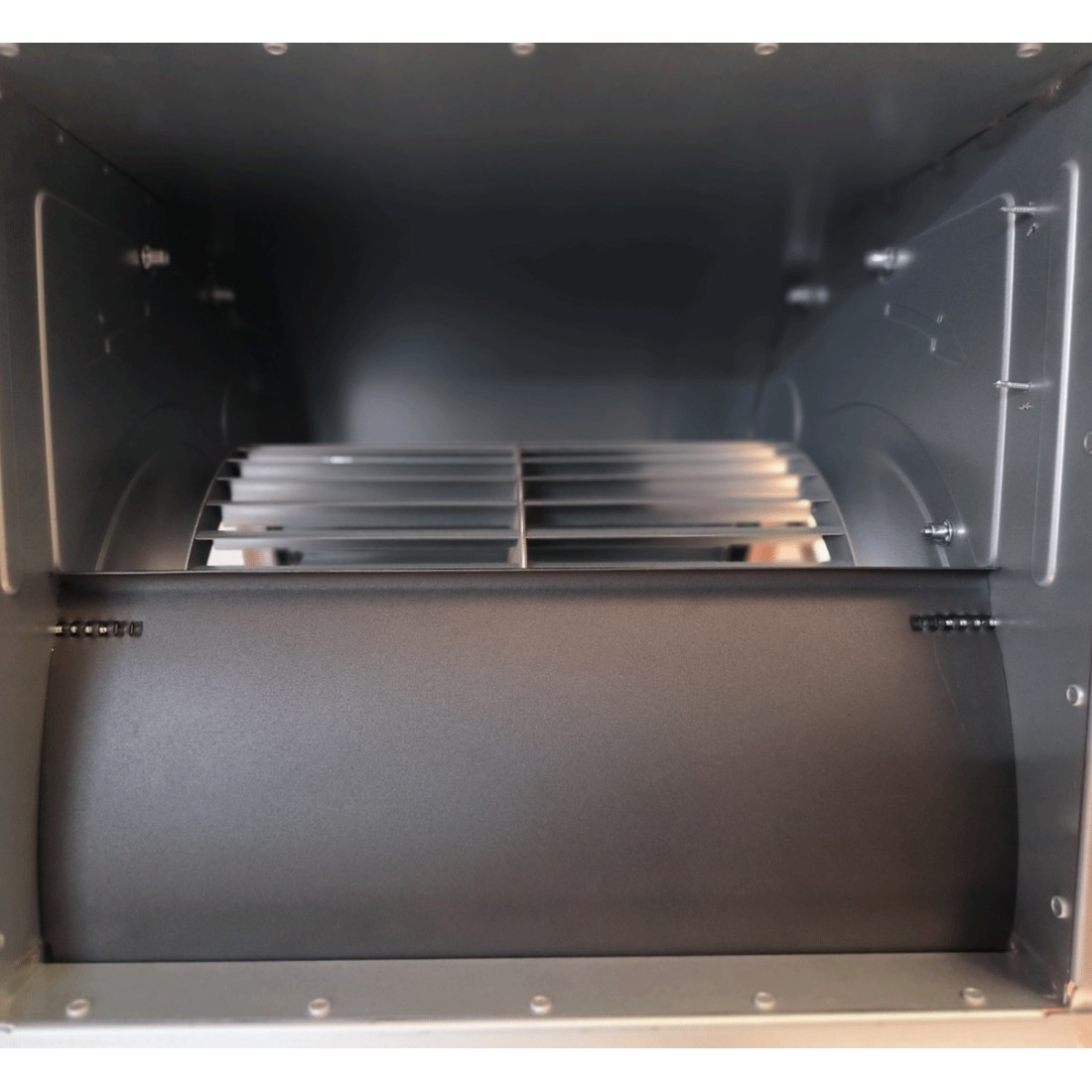

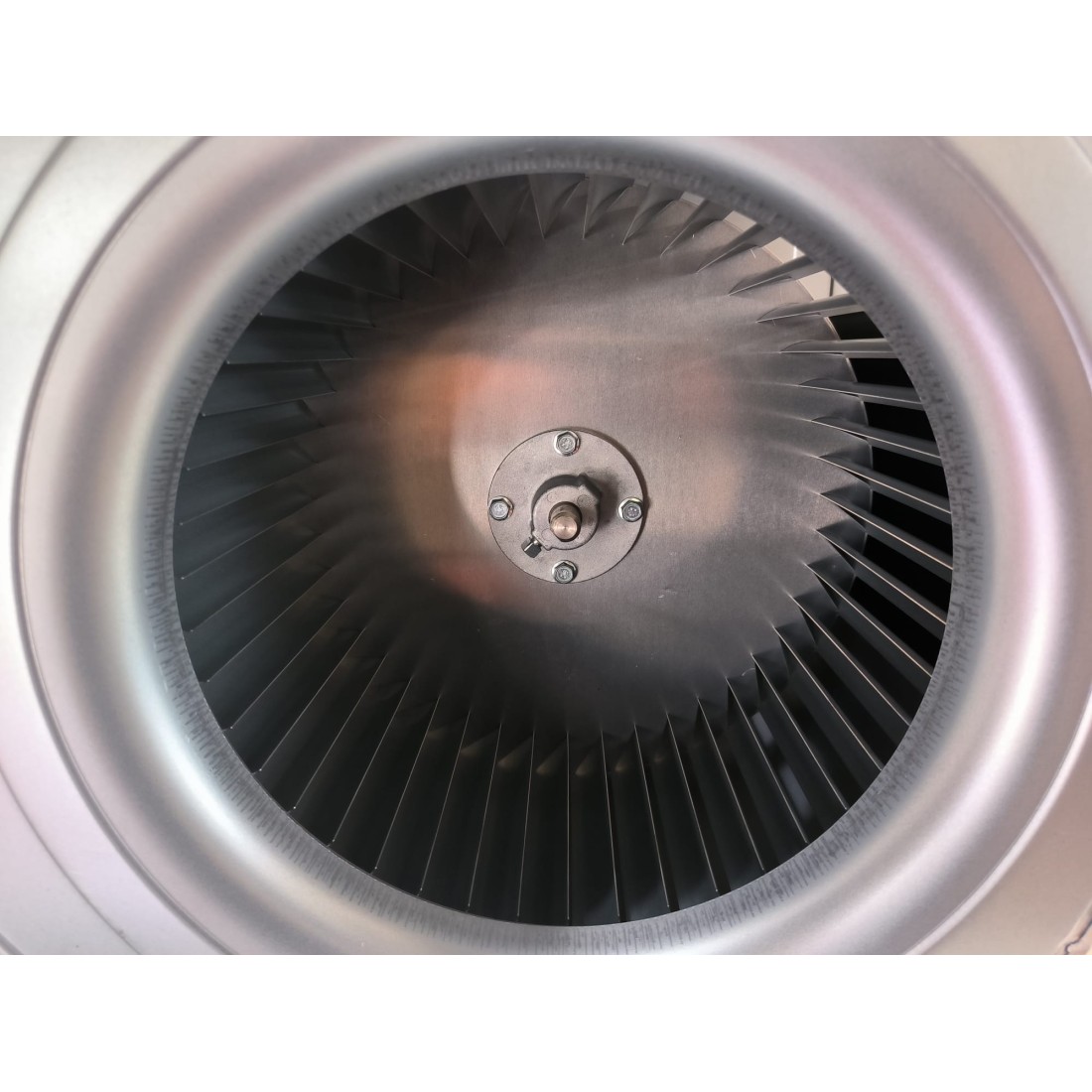

Impeller with forward curved blades, made of galvanized steel sheet.

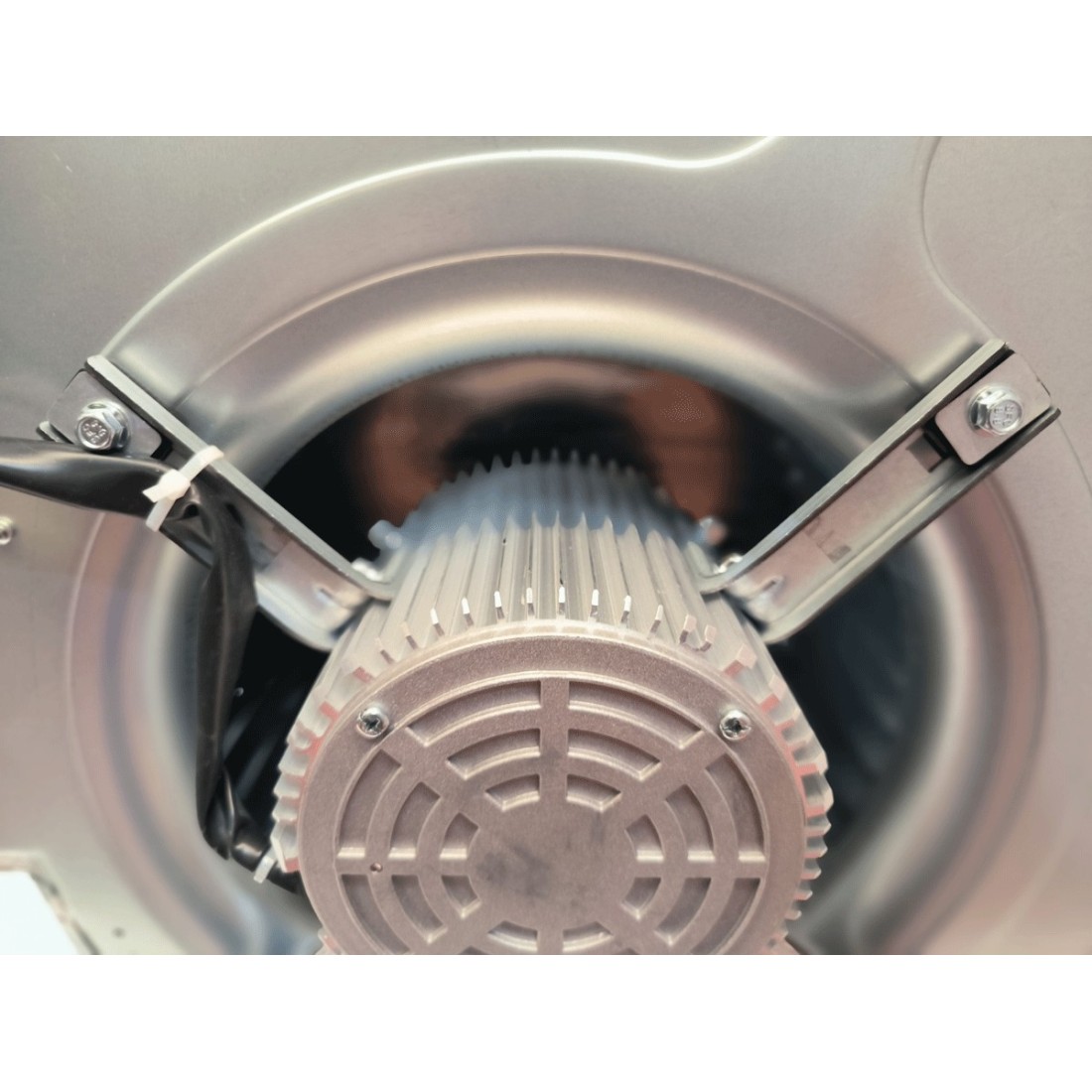

Motor:

High efficiency (HE) motors to comply with ErP 2015.
Closed motors with built-in thermal protector, class F, with ball bearings, IP54 protection.
Single-phase 220V AC-50Hz
Maximum air transport temperature: -20ºC.+ 60ºC.
Speed 850 rpm 1 speed
Decibels 75
Power 1100W
Airflow 6300m³ - hour

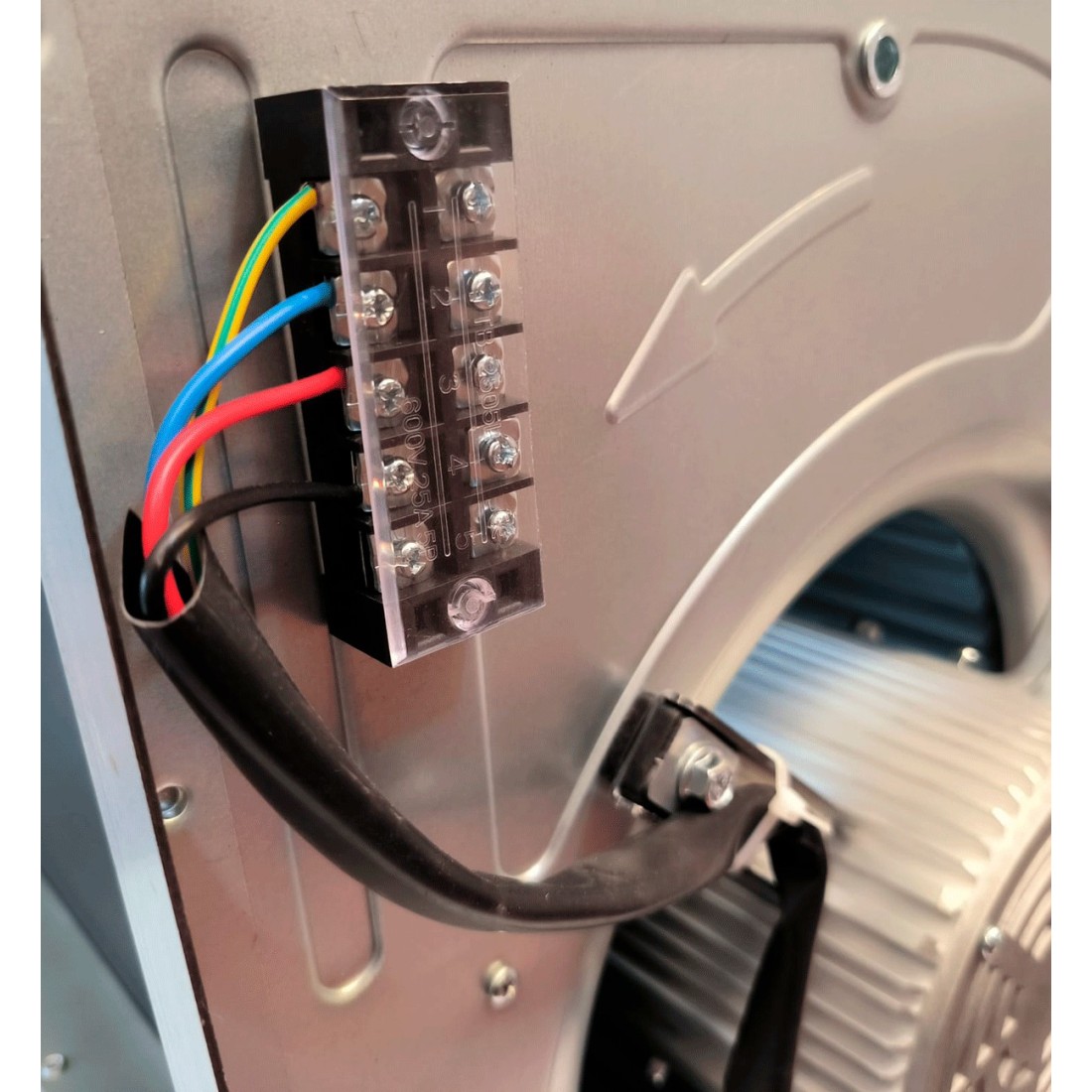

Connection via splice terminal
Net weight 24.20 kg
Gross weight 25.50 kg
Packaging dimensions 580x485x515mm

Finish:

Anti-corrosive in galvanized steel sheet.

Product Details

Power Supply Voltage: 220-240V 50Hz
Power Watts: 1100W
Hospitality Furniture: Bells Accessories
Bells Accessories: Ventilador Centrifugo
