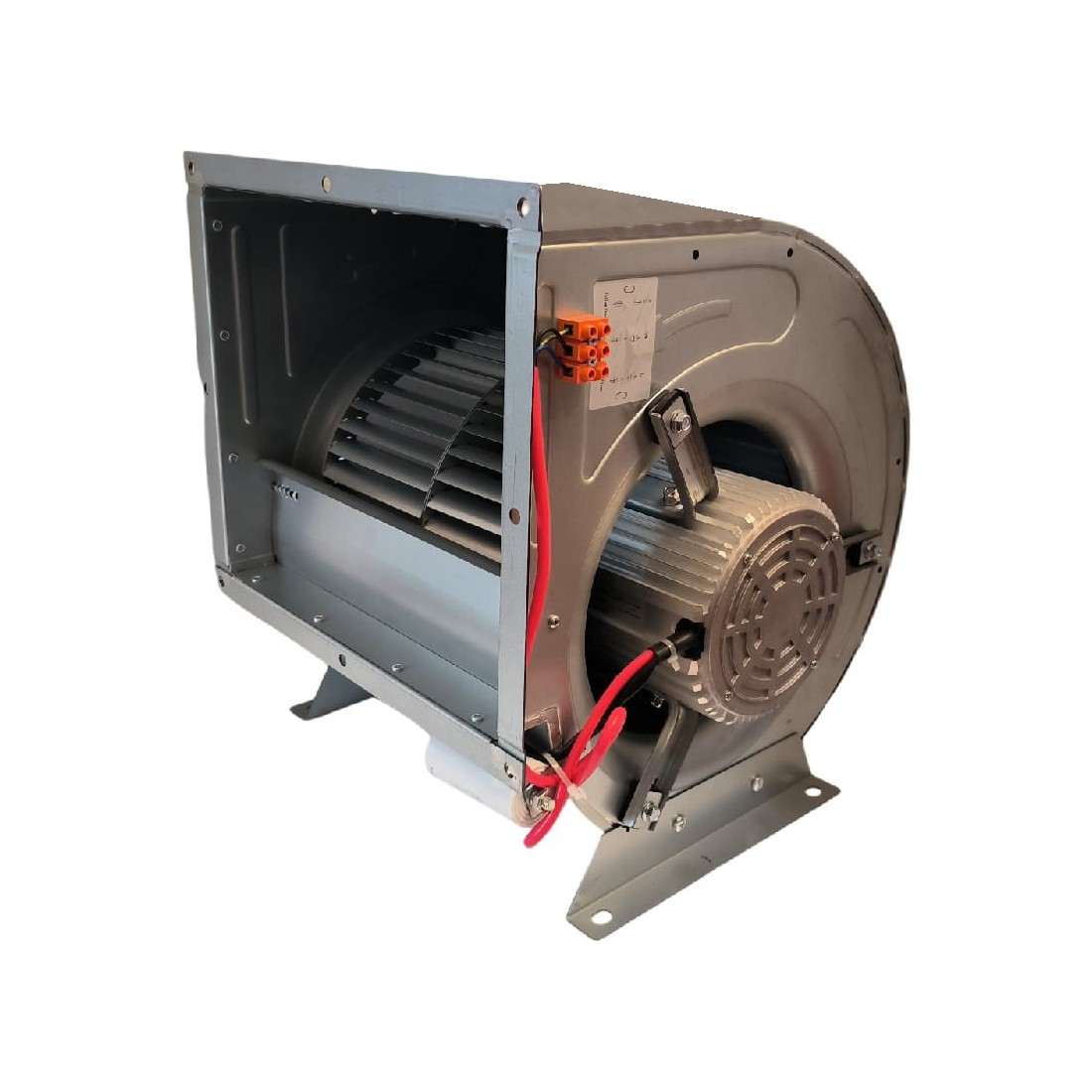

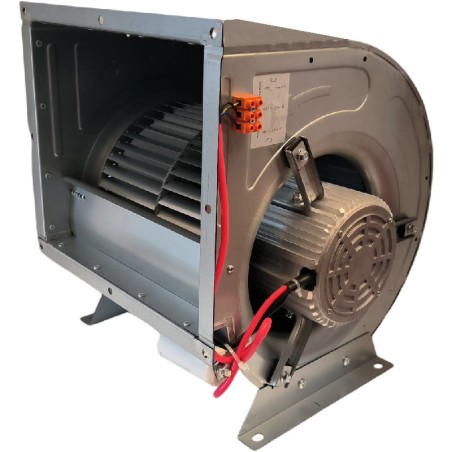

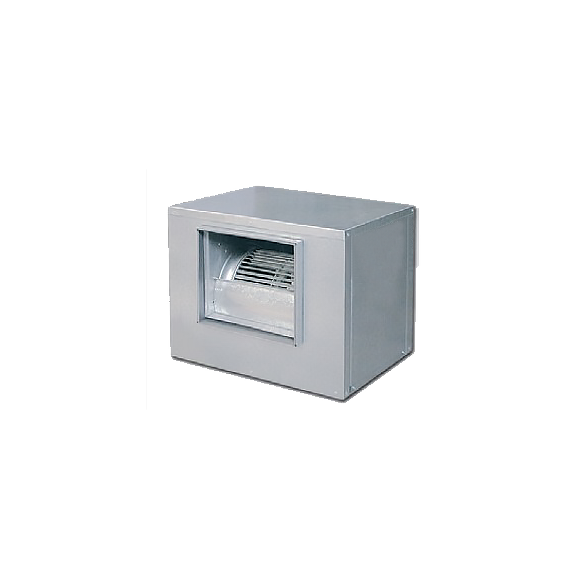

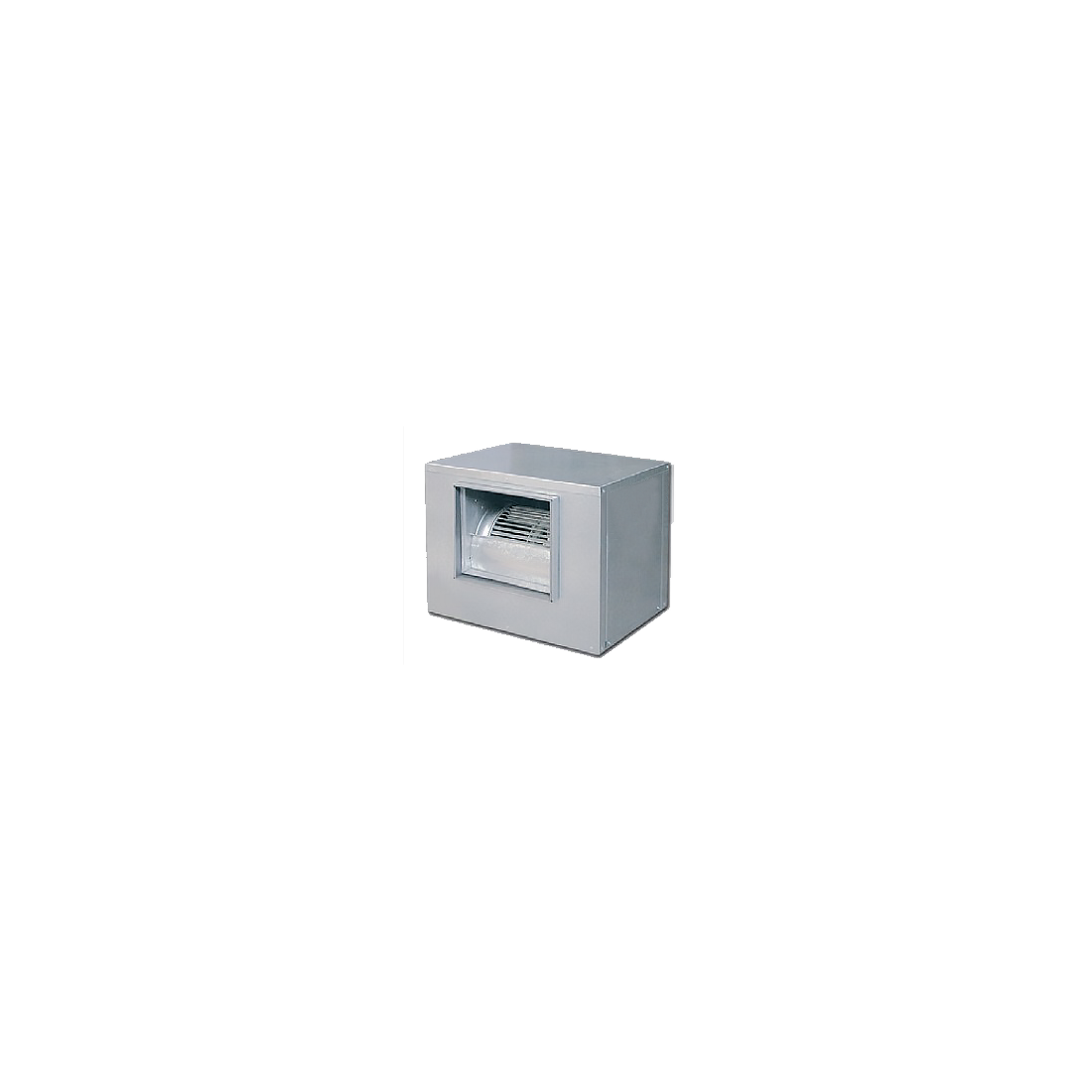

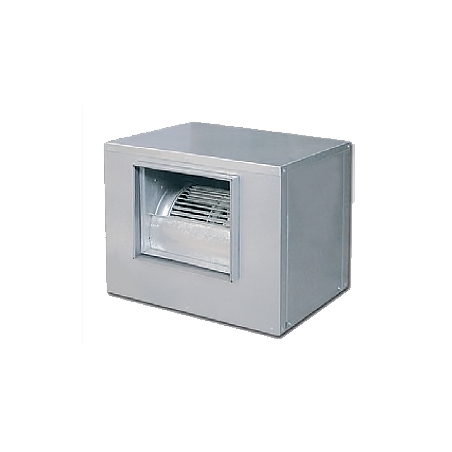

Extraction box LKZ 9/9-4M 1/2M

Material and Design

• Structure made of galvanized steel sheet with anti-corrosion treatment.

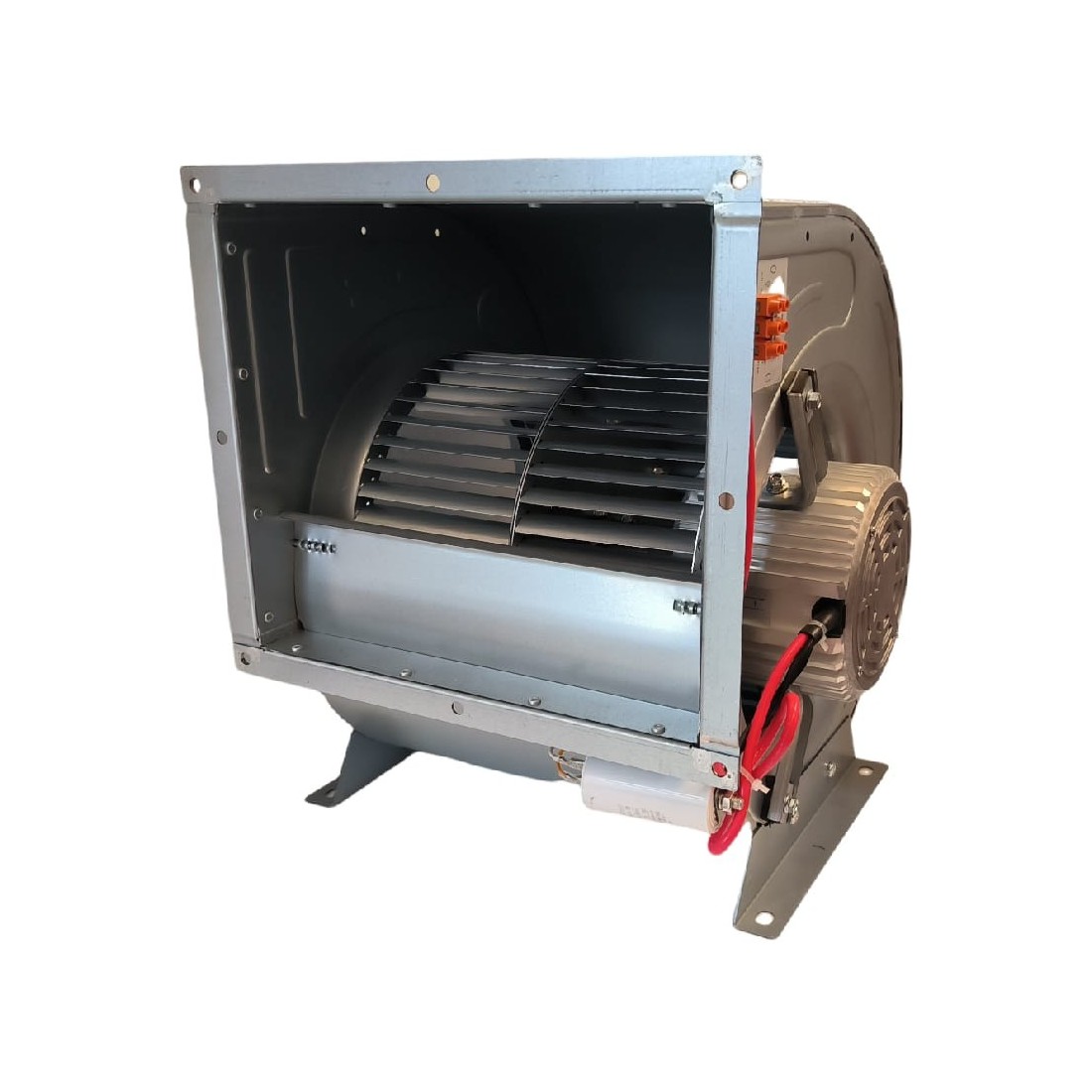

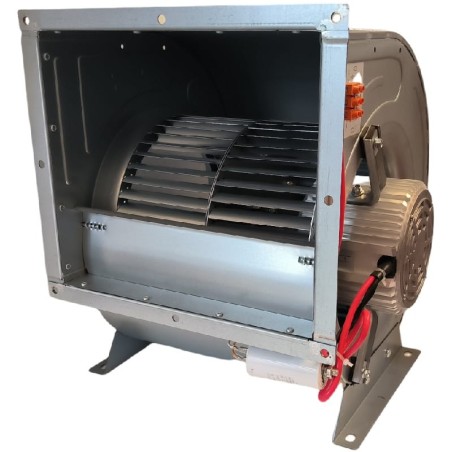

• Turbine with forward-curved blades in galvanized steel sheet.

• Includes blind cover.

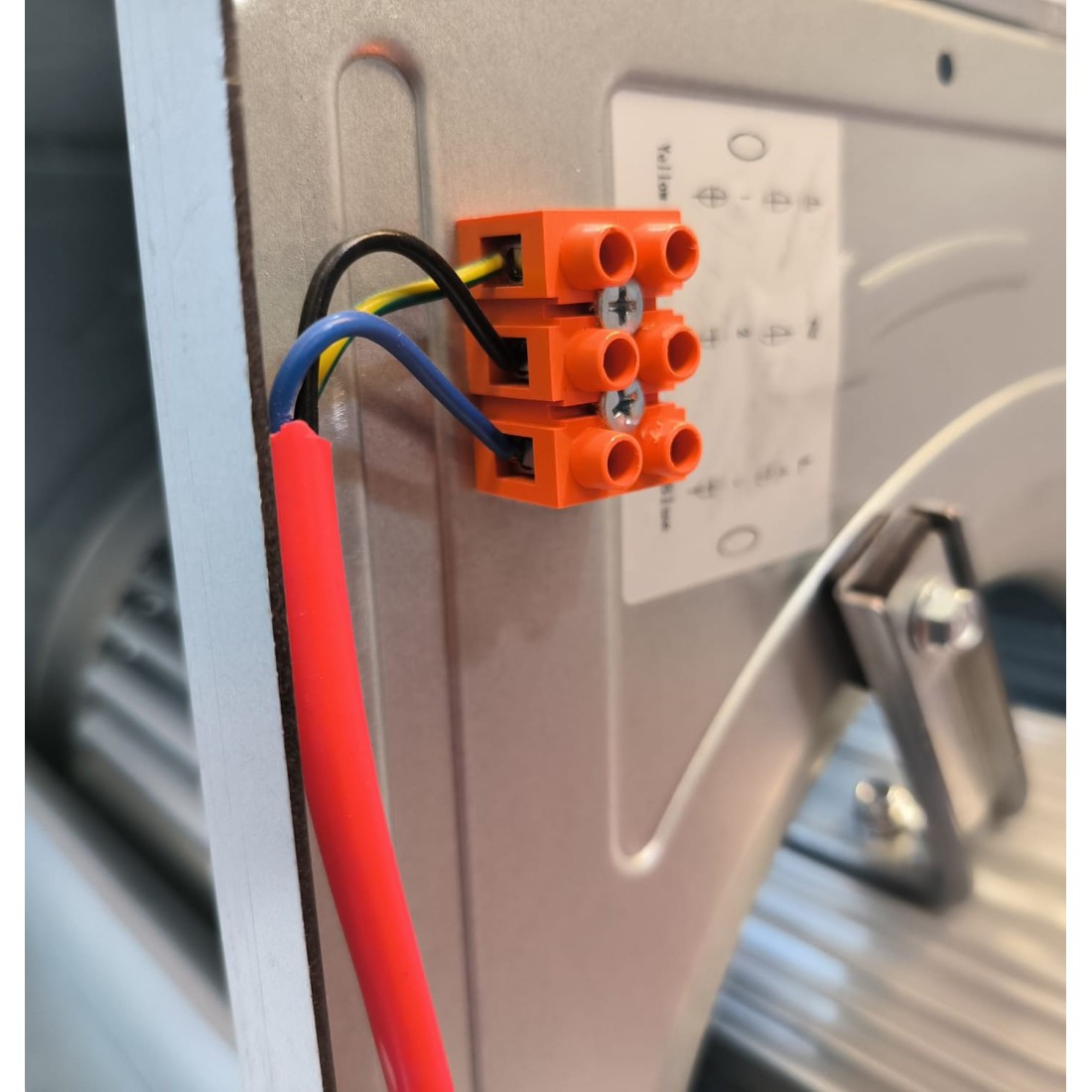

• Electrical connection via splice connector.

• Robust and compact design with materials resistant to corrosion.

Technical Specifications

• Motor: High efficiency (HE), compliant with ErP 2015 regulations.

• Motor type: Closed, with built-in thermal protector, class F, with ball bearings.

• Protection: IP54.

• Speed: 1250 rpm (1 speed).

• Voltage: Single-phase 220-240 V AC – 50 Hz.

• Power: 370 W.

• Air flow: 2800 m³/h.

• Sound level: 70 dB.

• Temperature of the air to be transported: -20 ºC to +60 ºC.

• Condenser: 20 μF.

Included Equipment

• Extraction box with pre-mounted turbine.

• Blind cover.

• Electrical connection connector.

Additional Features

• Quiet and efficient operation.

• Ideal for centralized ventilation systems or localized extraction areas.

• Long-lasting components designed for industrial environments.
