9042C
€430.00
Tax excluded

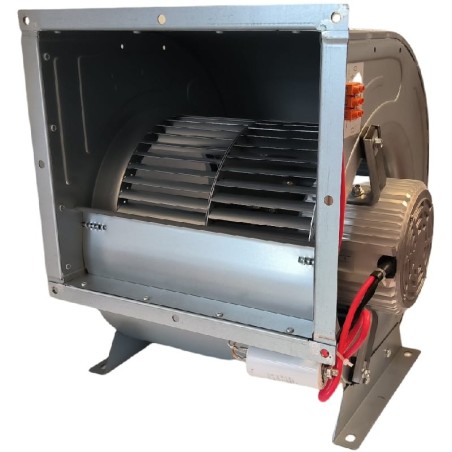

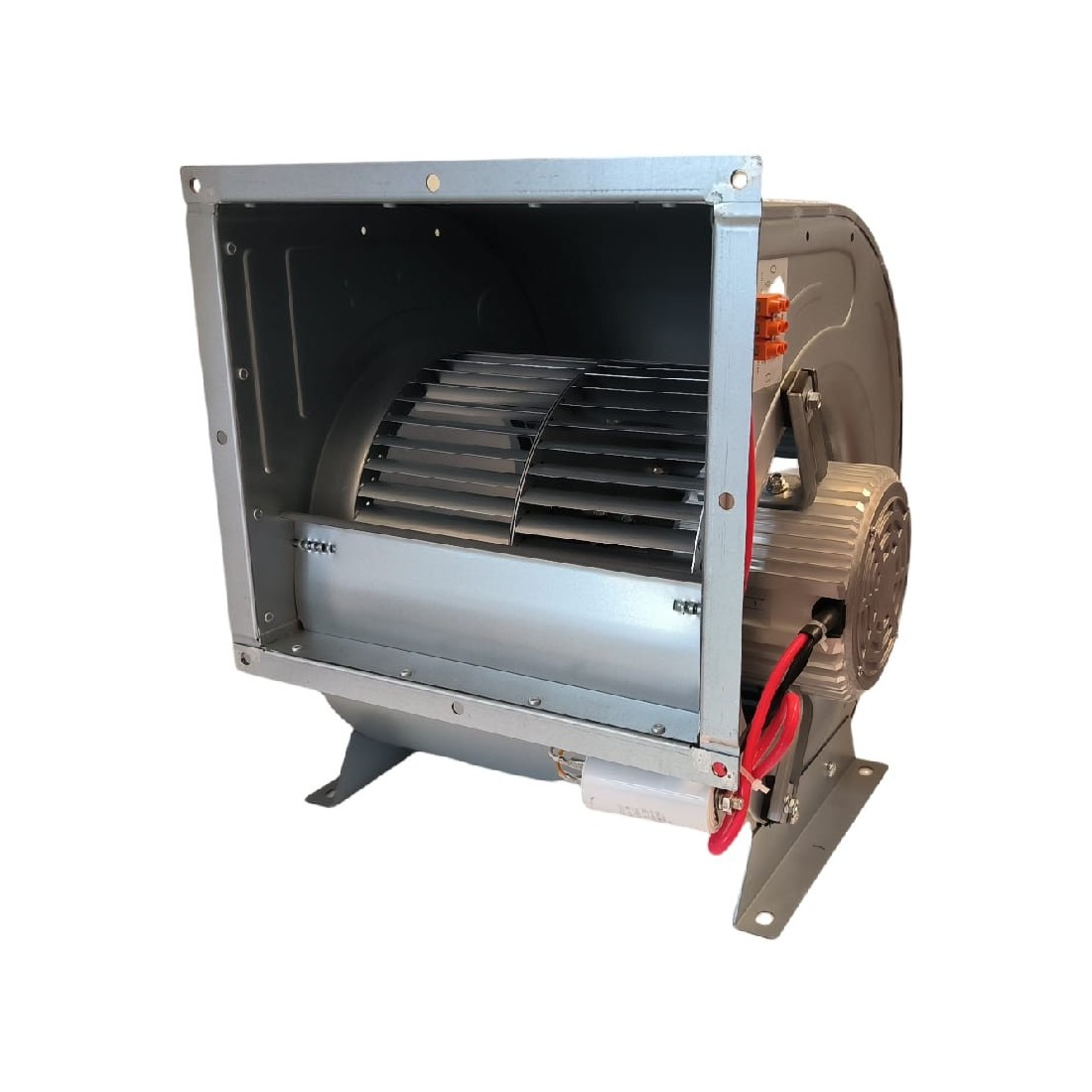

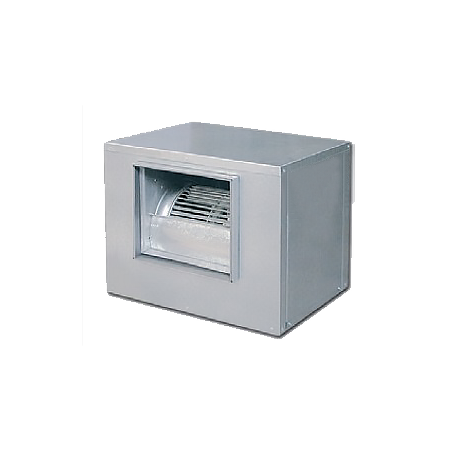

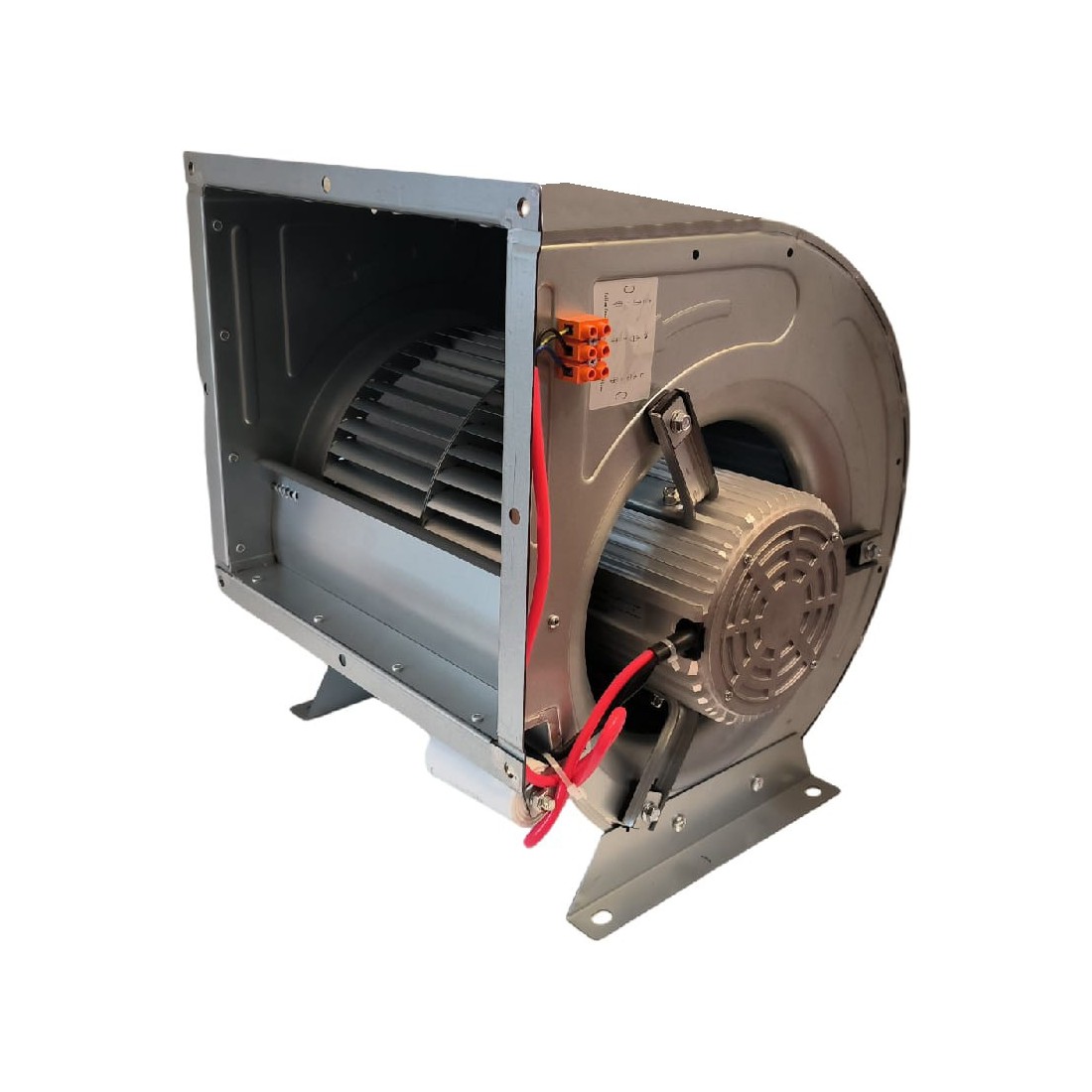

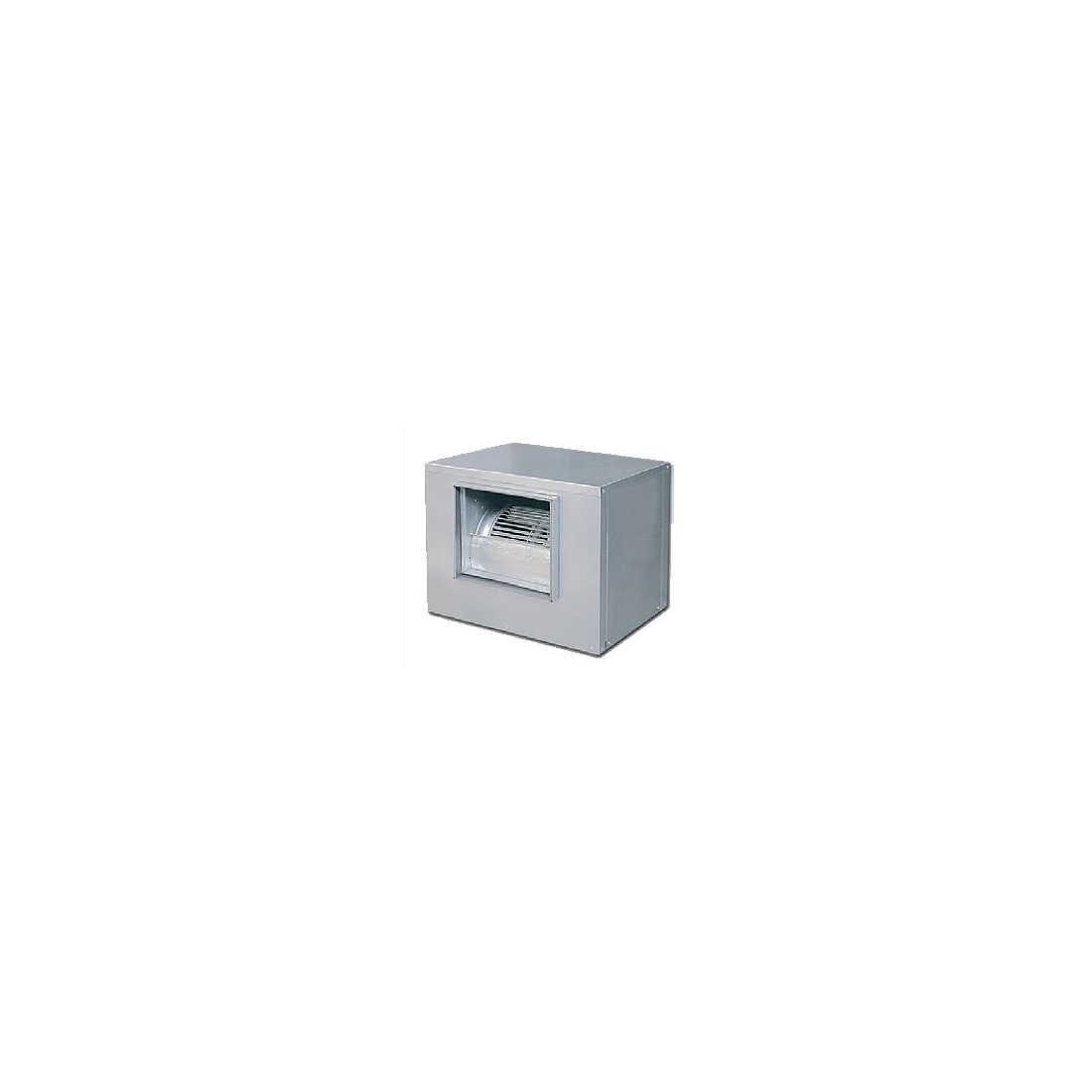

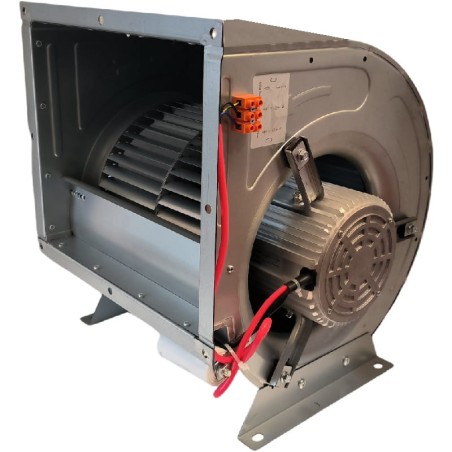

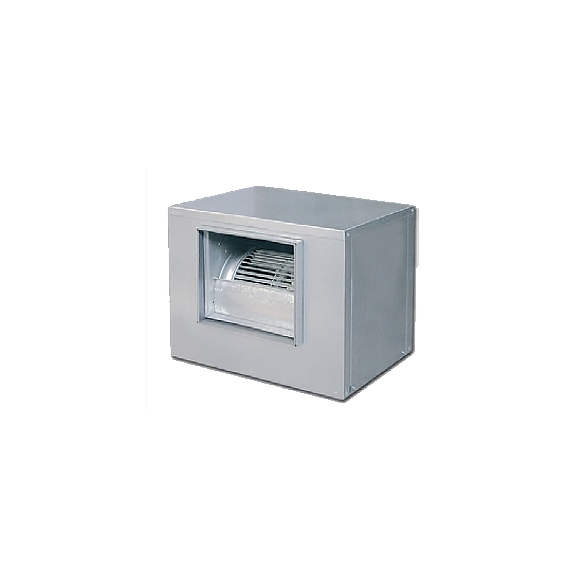

High-performance extraction box designed for industrial and commercial ventilation systems. It offers excellent airflow capacity with low maintenance, ideal for demanding applications where reliability and energy efficiency are required.

Download PDF

Description

Material and Design

  • Structure made of galvanized steel sheet with anti-corrosion treatment.

  • Turbine with forward-curved blades in galvanized steel sheet.

  • Includes blank cover.

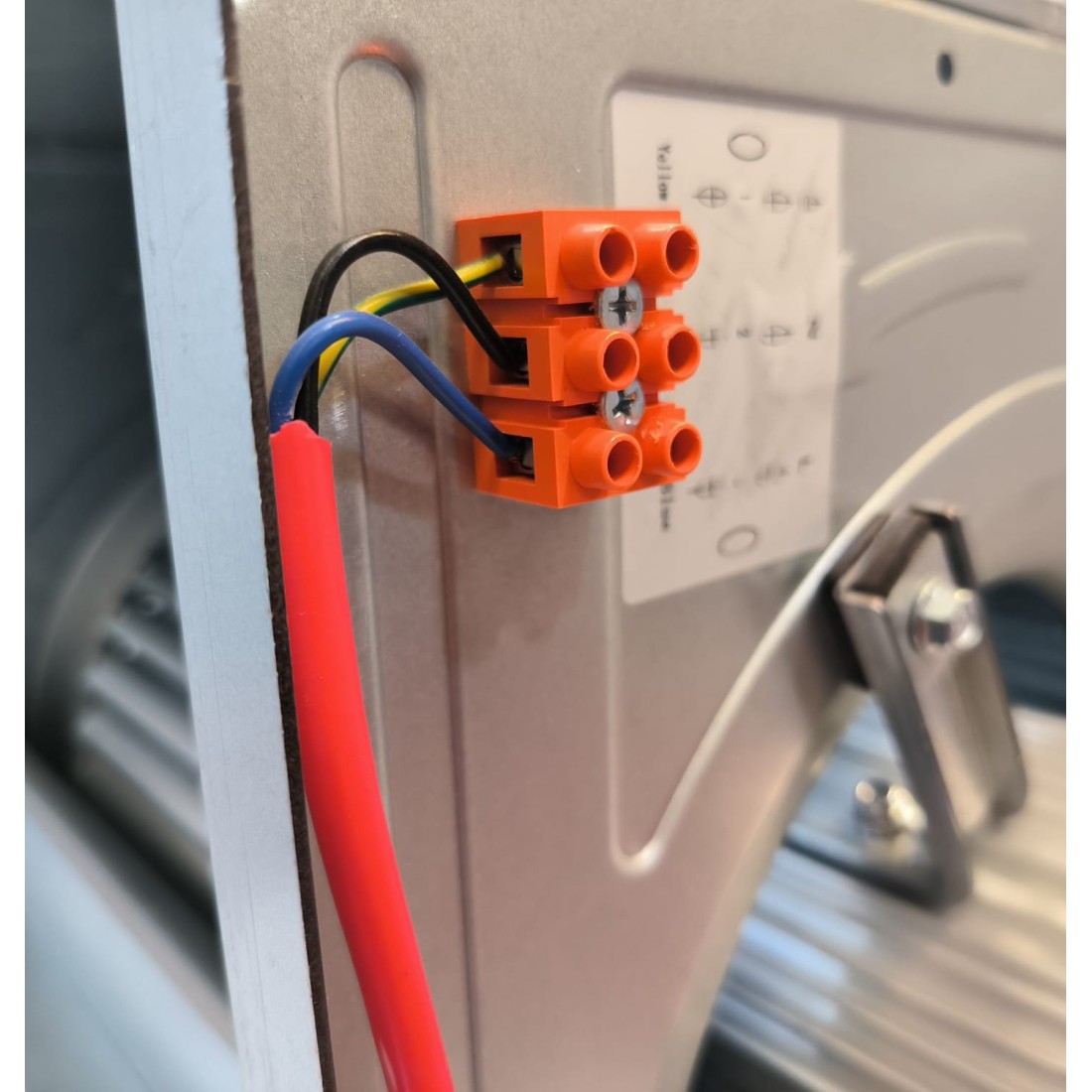

  • Electrical connection via splice connector.

  • Robust and compact design with corrosion-resistant materials.

Technical Specifications

  • Motor: High efficiency (HE), compliant with ErP 2015 standard.

  • Motor type: Closed, with built-in thermal protector, class F, with ball bearings.

  • Protection: IP54.

  • Speed: 1250 rpm (1 speed).

  • Voltage: Single-phase 220-240 V AC – 50 Hz.

  • Power: 550 W.

  • Airflow: 3600 m³/h.

  • Sound level: 65 dB.

  • Air temperature to be transported: -20 ºC to +60 ºC.

  • Condenser: 20 μF.

Included Equipment

  • Extraction box with pre-assembled turbine.

  • Blank cover.

  • Electrical connection connector.

Additional Features

  • Quiet and efficient operation.

  • Ideal for centralized ventilation systems or localized extraction areas.

  • Long-lasting components designed for industrial environments.

Product Details

Power Supply Voltage
220-240V 50Hz
Power Watts
550W
